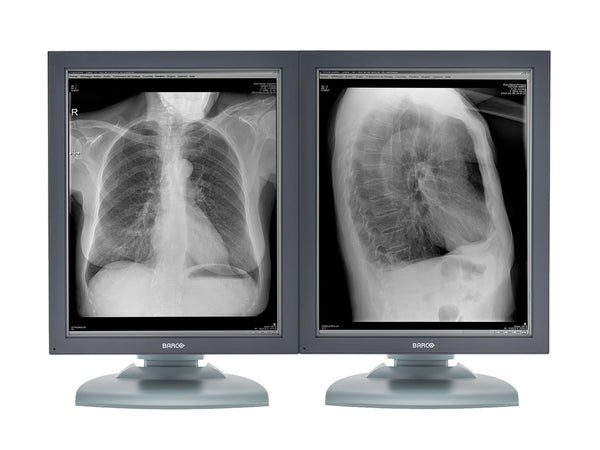

Barco® Nio MDNG-2121 2MP 21" Grayscale Medical Diagnostic Radiology Monitor


Choose Your Option: K9601651-P-R
Setup:
Price:
Request a Quote

Barco® Nio MDNG-2121 2MP 21" Grayscale Medical Diagnostic Radiology Monitor

The Barco® Nio MDNG-2121 is an excellent choice for radiologists who want an affordable grayscale diagnostic display monitor for reading general radiology cases without compromising image quality.

Flexible Design

The MDNG-2121's (1,600 x 1,200 pixels) 21-inch screen offers a large viewing area with a viewing angle of 170°. The Barco® Nio MDNG-2121 is available in a single- or multi-head configuration, with excellent color matching between displays, and is usable in portrait and landscape orientation.

Crisp, Bright Imaging

The Barco® Nio MDNG-2121 has a 10-bit architecture that enables 1,024 shades of gray simultaneously out of an existing palette of 4,096 shades. This results in highly accurate reproductions of medical images on the screen and lets subtle details pop without the need for panning or zooming. Additionally, the anti-reflective, protective front cover improves image contrast while preventing damage to the screen. It also makes disinfecting the screen easier and safer for the electronic components.

Efficient Workflow

Preserve image quality, prolong equipment uptime, and maintain DICOM compliance with no manual effort on your part. Without disrupting reading sessions, the Barco® Nio MDNG-2121 continually makes automatic adjustments to screen brightness using integrated MediCal QAWeb® software and the Backlight Output Stabilization (BLOS®) sensor. When the Nio MDNG-2121 is paired with Barco® MXRT high-speed display controllers, you can further boost workflow efficiency.

Longevity Without Diminished Performance

With any monitor, brightness dims over time. To compensate for this inevitability and maintain brightness levels that comply with DICOM, the BLOS sensor on the Barco® Nio MDNG-2121 measures the output of the monitor's lamps and then communicates with the monitor's electrical panel to increase luminance as needed. As an added benefit, the BLOS sensor significantly shortens power-up time.

Versatility

With the proper adapter, the Barco® Nio MDNG-2121 is compatible with any graphics card, as well as both Windows and Mac. As a result, you won't have to worry about the monitor's compatibility with your workstation, laptop, or PC.

Features at a Glance

  • High levels of brightness, image crispness, and excellent viewing angle at a great value

  • Backlight output stabilization sensor helps to extend the life of the monitor and maintains compliance with luminance requirements

  • 10-bit lookup table enhances grayscale visualization

  • MediCal QAWeb software automates calibration

  • High-speed display controllers maximize workflow efficiency



What's Included

  • Display Controller (Graphics Card)

  • Calibration Software

  • Accessories


Tech Specs

Manufacturer Barco®
MFG Part# K9601651
Screen Type Grayscale
Resolution 2MP (1600 x 1200)
Pixel Pitch 0.2700 x 0.2700 mm
Contrast Ratio 850:1
Aspect Ratio Hv 4:3
Calibrated Luminance 500 cd/m²
Max Luminance 1650 cd/m²
Calibration Manual (external USB sensor)
Backlight Sensor Yes
Front Sensor No
Ambient Light Sensor No
Backlight CCFL
Screen Technology TFT AM LCD Dual Domain IPS
Active Screen Size (DIAGONAL) 541 mm (21.3")
Active Screen Size (H x V) 432 x 324 mm (17.0 x 12.8")
Video Input Signals DVI
3D Tomosynthesis NO
Viewing Angle (H, V) 178°, 178°
Mount Type VESA (100 mm)
Dimensions (W x H x D) 382 x 577 x 249 mm (15" x 22.7" x 9.8")
Power Consumption 65 W
Power Requirements 100~240V, 50/60Hz
Weight 26.7 lbs (12.1 kg)
