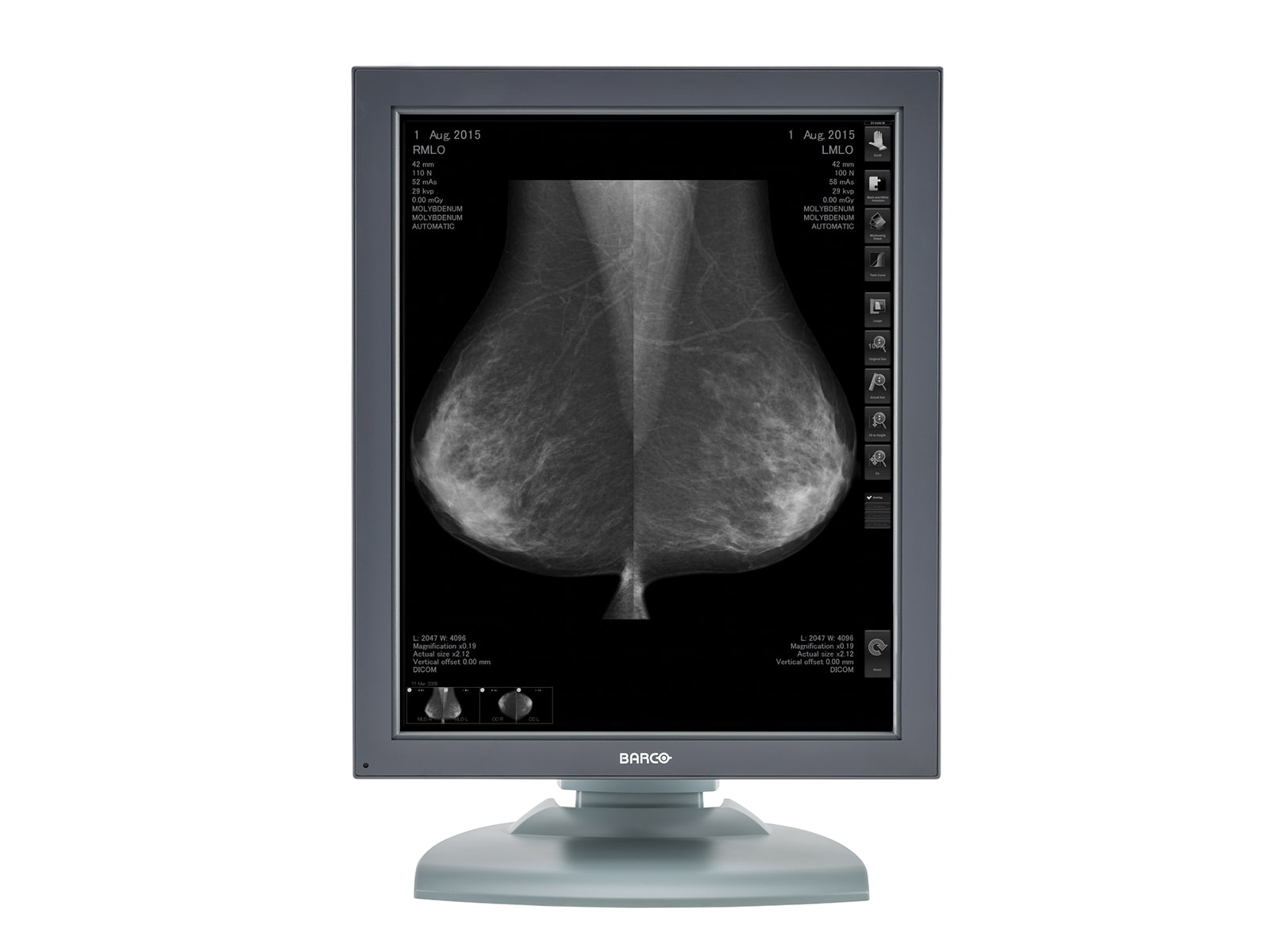

Because of its high resolution of 5MP (2,048 x 2,560 pixels), along with its high luminance and contrast, the Barco® Nio MDNG-5121 is optimal for viewing multi-modality images, including X-ray, MR, angiography, CT, and mammography.
The Barco® MDNG-5121 is available in a single- or multi-head configuration, with the perfect color matching between displays, and is usable in portrait and landscape orientation.
Superior Grayscale Imaging
Improved visibility means better detection of medical conditions at their earliest stages. The Barco® MDNG-5121 delivers on this promise by providing brightness levels up to 700 cd/m2, exceptional crispness in image quality, and a wide viewing angle of 170°. The 10-bit lookup table enables 1,024 shades of gray out a palette of 4,096 shades for greater accuracy. An anti-reflective, protective front cover envelopes the screen to improve contrast and make cleaning the equipment easier and safer.
Longevity Without Diminished Performance
With any monitor, brightness dims over time. To compensate for this inevitability and maintain brightness levels that comply with DICOM and MQSA, the BLOS sensor on the Barco® MDNG-5121 measures the output of the monitor's lamps and then communicates with the monitor's electrical panel to increase luminance as dictated by ambient conditions. As an added benefit, the BLOS sensor makes powering up fast.
Barco®'s medical displays come with proprietary, high-speed MXRT display controllers compatible with all major PACS workstations and applications. They contain seamlessly integrated technologies and features that enhance performance and functionality.
With the proper adapter, the Barco® MDNG-5121 is compatible with any graphics card and both Windows and Mac. As a result, you won't have to worry about the monitor's compatibility with your workstation, laptop, or PC.
Features at a Glance
Exceptional brightness and image crispness
10-bit lookup table enhances grayscale visualization
MediCal QAWeb software automates DICOM and MQSA compliance
BLOS sensor helps to extend the life of the monitor and maintains compliance with luminance requirements
Option for high-speed Barco® MXRT display controllers to maximize workflow efficiency
|Resolution||5MP (2560 x 2048)|
|Pixel Pitch||0.1650 x 0.1650 mm|
|Aspect Ratio Hv||4:5|
|Calibrated Luminance||500 cd/m²|
|Max Luminance||700 cd/m²|
|Calibration||Manual (External USB sensor)|
|Ambient Light Sensor||No|
|Screen Technology||TFT AM LCD Dual Domain IPS|
|Active Screen Size (DIAGONAL)||541 mm (21.3")|
|Active Screen Size (H x V)||422 x 338 mm (16.5 x 13.3")|
|Video Input Signals||Dual Link|
|Recommended For||All digital images including mammography|
|Viewing Angle (H, V)||178°, 178°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||382 x 577 x 249 mm (15" x 22.7" x 9.8")|
|Power Consumption||95 W|
|Power Requirements||100–240 VAC, 1.5–0.6 A, 47-63 HZ|
|Weight||30 lbs (13.5 kg)|
