This high-brightness color monitor for diagnosis is perfect for accurate displaying of grayscale tones as well as color images in the medical environment. The monitor accepts multiple input signals from both state-of-the-art and legacy systems. Its high contrast creates the perfect fit for most grayscale modalities and imaging systems. Typical application areas are endoscopy, cardiology, and ultrasound.
Perfect Image Reproduction thanks to IPS LCD Technology

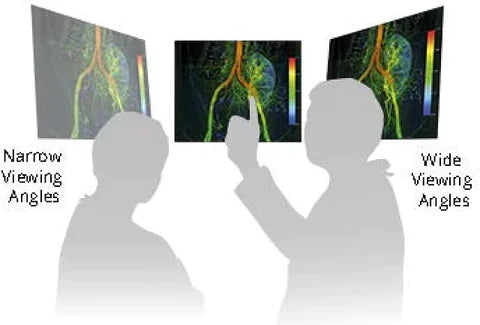

The LCD technology used eliminates picture geometry distortions and color spots. The monitor delivers flicker-free images, even at low refresh rates (60 Hz). In addition, the IPS panel of the monitor guarantees improved contrast values and significantly higher viewing angle stability. The result is a device that meets the highest ergonomic requirements.
Dual-Screen Display on One Monitor
With Picture-by-Picture (PbyP) or Picture-in-Picture (PinP) functions, two screens from separate input signals can be displayed simultaneously on one monitor. A bezel-less widescreen enables simplified and flexible operation.

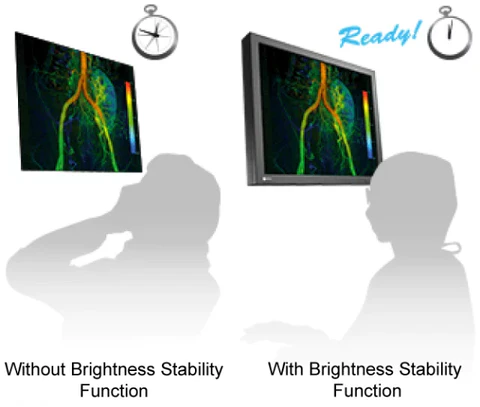

Constant Luminance Regulation
An integrated brightness sensor, using EIZO fully automated brightness control, ensures fast luminance stabilization during system start and compensates for fluctuations that occur in the course of operation due to different ambient temperatures.

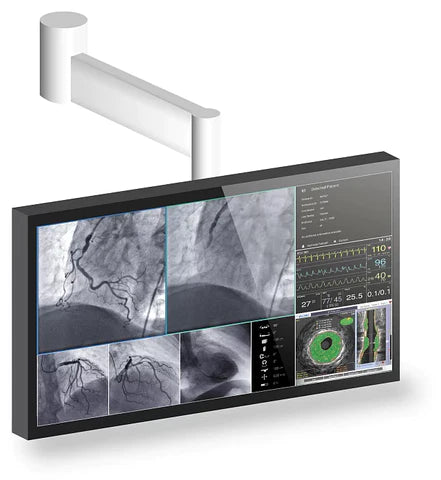

Installation of a VESA Ceiling Suspension
Compliance with the VESA standard enables attachment to existing mounting accessories.

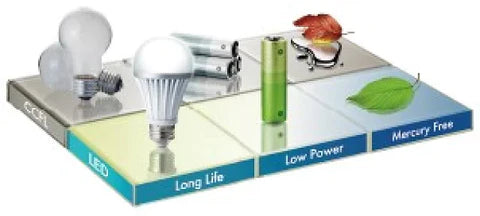

Environmentally-Friendly LED Backlight
By utilizing an energy-efficient LED as a backlight, the monitor achieves good brightness values with low power consumption. In contrast to conventional CCFL technology, LED backlighting offers a longer monitor lifespan, is free of hazardous materials, and is therefore compliant with current environmental regulations.

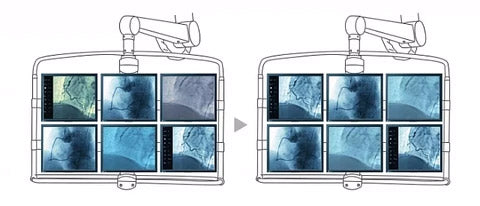

The monitor is precalibrated to meet the DICOM Part 14 standard, thereby ensuring permanently consistent image transmission. The five default look-up tables (LUTs) contain practice-based settings. They take into account the DIN 6868-157 room classes, thereby meeting current specifications for diagnostic monitors.
Although the monitor automatically detects standard video signals, older medical devices frequently cause problems due to their unusual timing. These special application requirements can be met using the Force Mode function.
The adjustable LUT makes it possible for LUT recalculations to be initiated manually. Within this recalculation, the gamma model, luminance settings, or color parameters can be modified. The LUT is calculated via the OSD menu without having to access external calibration software. The reset LUT is calculated immediately, saved in the device, and used immediately for image display. This provides the user with the ability to establish the user LUT individually without using a luminance meter. .
The optimum screen resolution is 1280 x 1024 pixels. Video signals with other resolutions, common in medical technology, are automatically adapted to the screen size. Alternatively, they can be displayed in their original size (1:1).
The integrated Loop-Through output (BNC video / SoG signal) enables connection with multiple other monitors or image archiving in the operating room.
EIZO's highly versatile stand offers tilt, swivel, and a wide height adjustment range enabling you to use the monitor with greater comfort.
The monitor meets the high requirements of international medical safety and EMC standards.
|Resolution||1MP (1280 x 1024)|
|Pixel Pitch||0.294 x 0.294 mm|
|Aspect Ratio Hv||5:4|
|Calibrated Luminance||400 cd/m²|
|Max Luminance||700 cd/m²|
|Screen Technology||Color TFT LCD Panel (IPS)|
|Active Screen Size (DIAGONAL)||480 mm (19")|
|Active Screen Size (H x V)||376.3 x 301.0 mm (14.81" x 11.85")|
|Video Input Signals||DisplayPort|
|Viewing Angle (H, V)||178°, 178°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||208 mm x 272 x 208 mm (8.1" x 10.7" x 8.1")|
|Power Consumption||58 W|
|Power Requirements||AC 100 - 240 V: 50 / 60 Hz|
|Weight||11.24 lbs (5.1 kg)|
|Ambient Light Sensor||No|
|Calibration||Manual (external USB sensor)|
|Recommended For||All digital images, except digital mammography|
