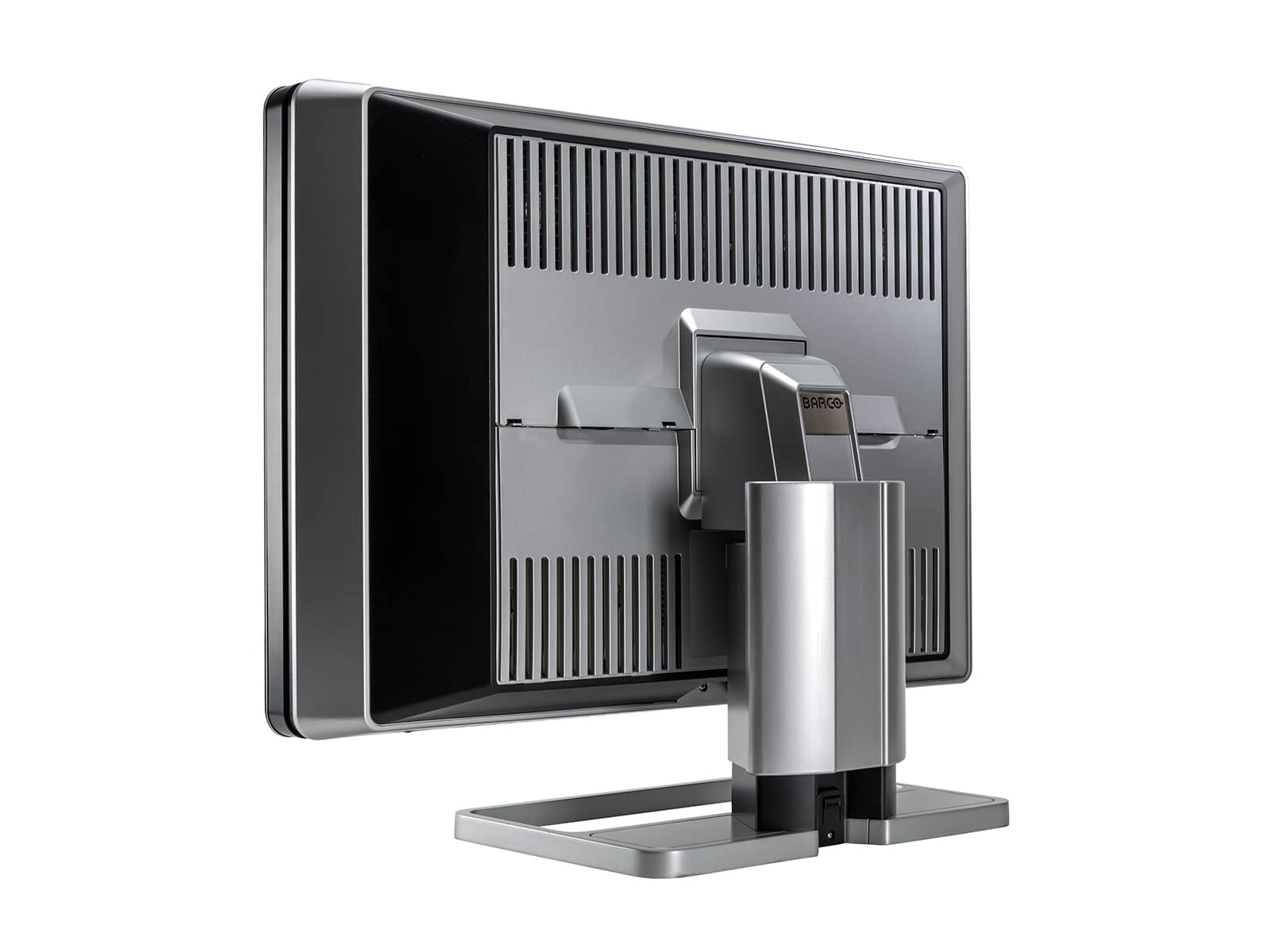

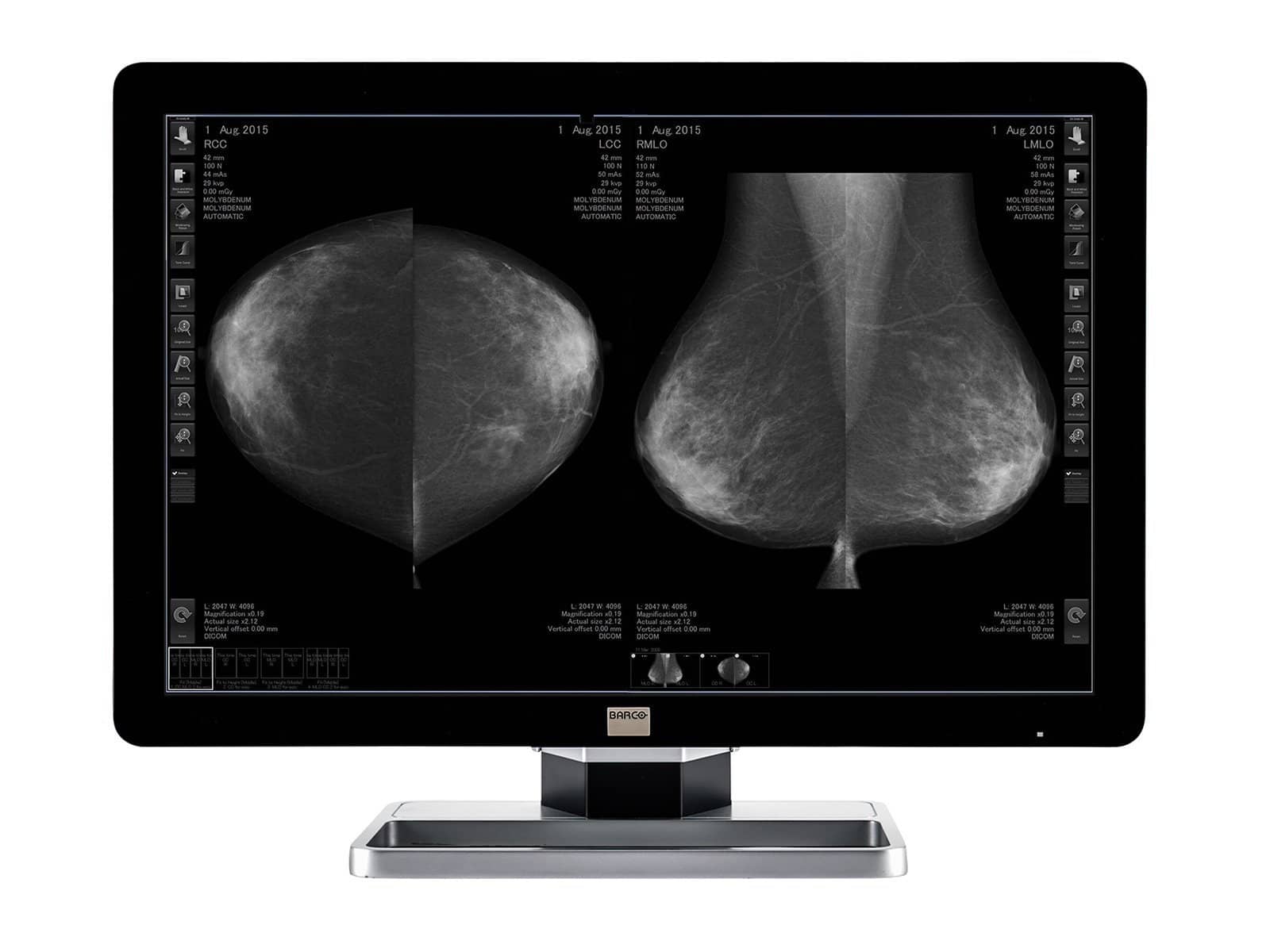

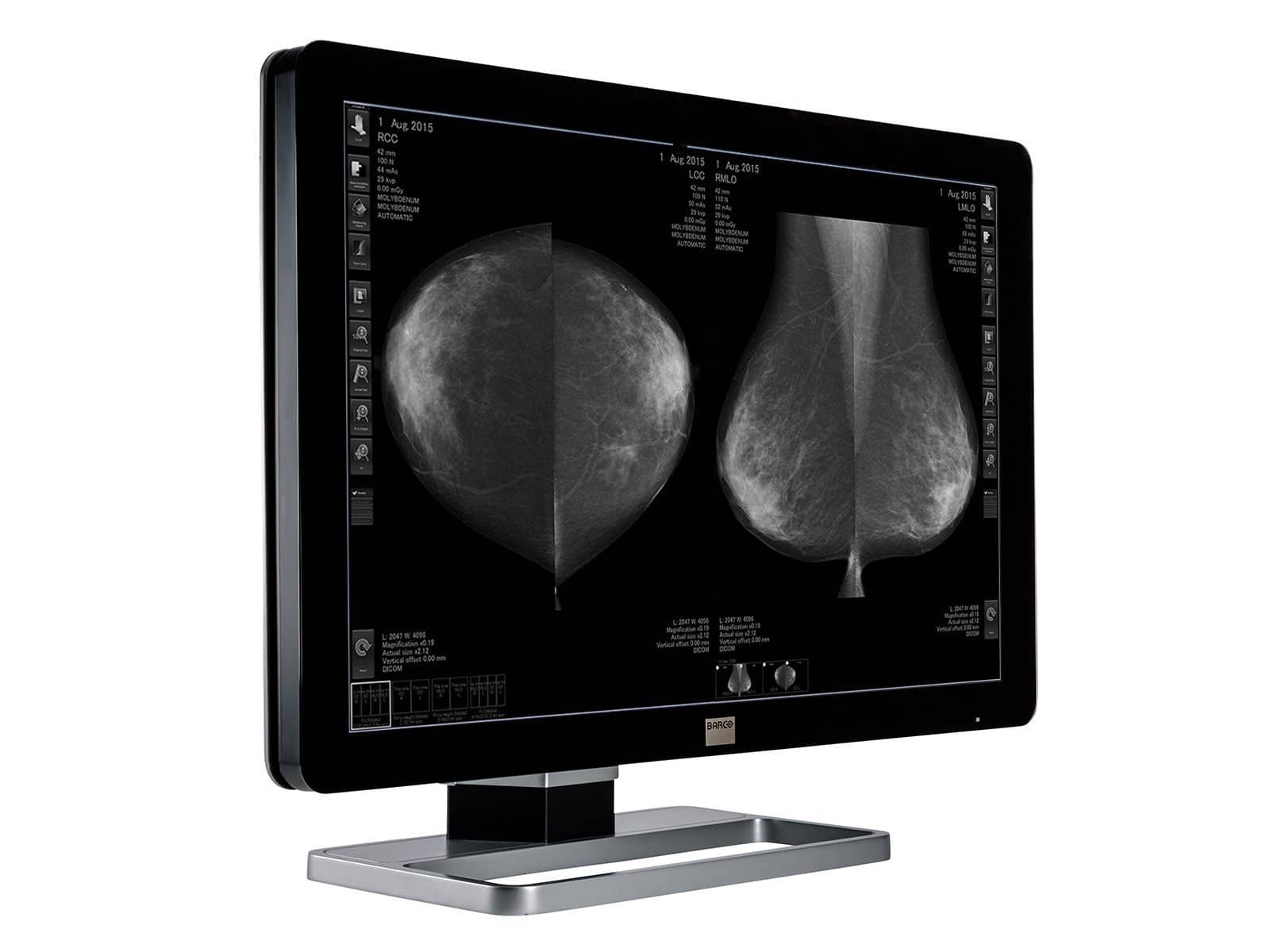

Barco® Coronis Fusion MDCG-10130 10MP 30" Grayscale Mammo 3D-DBT Breast Imaging Display (K9601618)

Choose Your Option: K9601618-R

Barco® Coronis Fusion MDCG-10130 10MP 30" Grayscale Mammo 3D-DBT Breast Imaging Display (K9601618)


Diagnostic display monitors don't come more perfect than this. With a spectacular 10MP (4,096 x 2,560 pixels) resolution on a seamless, 30-inch-wide screen, the Barco® Coronis Fusion MDCG-10130 is nothing less than a first-class reading experience for radiologists viewing digital mammography, chest X-rays, CT, and breast MR.

Superior Grayscale Imaging
Improved visibility means better detection of medical conditions at their earliest stages. For the Barco® MDCG-10130, the secret is the manufacturer's exclusive SmoothGray technology, which pairs an advanced algorithm with a superior processor to display gray shades with an extremely high degree of precision. Even subtle details are made noticeable to the human eye. Add in the 10-bit lookup table that enables 1,032 shades of gray simultaneously and the exceptional levels of brightness and contrast, and the Barco® MDCG-10130 delivers a viewing experience that would give any radiologist confidence and peace of mind.

Additional features further perfect images on the MDCG-10130:

  • IPS WideView® LCD technology makes levels of black more uniform and deepens contrast even from wide viewing angles, at any place in the reading room

  • Uniform luminance technology makes light output consistent across the screen, from the center to the corners, so that no abnormality goes undetected.

  • Ambient lighting compensation (ALC) and I-Guard® technologies measure light conditions around workstations and, in response to changes, automatically adjust monitor luminance and grayscale values within images to align with DICOM and MQSA standards for quality.

  • Anti-reflective front cover

Spacious, Bezel-Free Configuration
Annoying, eye-straining disruptions on the screen such as center bezels are a thing of the past because of the fusion format. With the seamless, 30-inch LCD screen of the Barco® MDCG-10130, you can view multiple images from multiple modalities on the screen at a time and organize them however you want for more efficient side-by-side comparison and more productive reading sessions. You can display up to 40 full-resolution CT and MR images at once.

Worry-Free DICOM and MQSA Compliance
Imagine never having to stop your workflow to manually calibrate your monitor or perform QA checks. You can simply trust that your equipment is giving you the highest-quality image possible and protecting you from liability. With the Barco® MDCG-10130, that's reality. Integrated MediCal QAWeb® software handles these tedious, time-consuming tasks for you on a continual and automatic basis.

Fast, reliable data transfer
Loading and displaying ultra-high-resolution images, such as mammograms, requires a speedy and trustworthy means of transferring data. The high-bandwidth DisplayPort interface on the Barco® MDCG-10130 is more than up to the task of quickly transmitting data from the graphics card to the monitor.

Flexible, Plug-and-Play Installation
DVI connectors on the Barco® MDCG-10130 make the monitor compatible with any graphics card and both Windows and Mac. As a result, you won't have to worry about compatibility issues with your workstation, laptop, or PC.

Features at a Glance

  • Multi-modality imaging on one screen

  • Ultra-precise grayscale imaging with SmoothGray technology and a 10-bit lookup table

  • Black uniformity and sharper contrast from any viewing angle with IPS WideView LCD technology

  • Consistent levels of brightness across the screen with uniform luminance technology

  • Automate brightness and image adjustment in changing light conditions with ALC and I-Guard technologies

  • MediCal QAWeb software automates calibration and QA.

  • DisplayPort and DVI connectivity

Tech Specs

Manufacturer Barco®
MFG. Product Number K9601618
Screen Type Grayscale
Resolution Native 10MP (4096 x 2560) configurable to 2 x 5MP (2048 x 2560)
Screen Technology TFT AM LCD Dual Domain IPS
Active Screen Size (H x V) 645 x 403 mm (25.4 x 15.9")
Ambient Light Sensor Yes
Active Screen Size (DIAGONAL) 761 mm (29.6")
Pixel Pitch 0.1575 x 0.1575 mm
Viewing Angle (H, V) 170°, 170°
Backlight Censor Yes
Calibration Auto (built-in front sensor)
Calibrated Luminance 500 cd/m² (panel typical)
Max Luminance 1250 cd/m² (panel typical)
Contrast Ratio 950:1 (panel typical)
Power Consumption 102 W
Video Input Signals 2 x DVI-D Dual Link, 2 x DisplayPort
Weight 53.4 lbs (24.2 kg)
