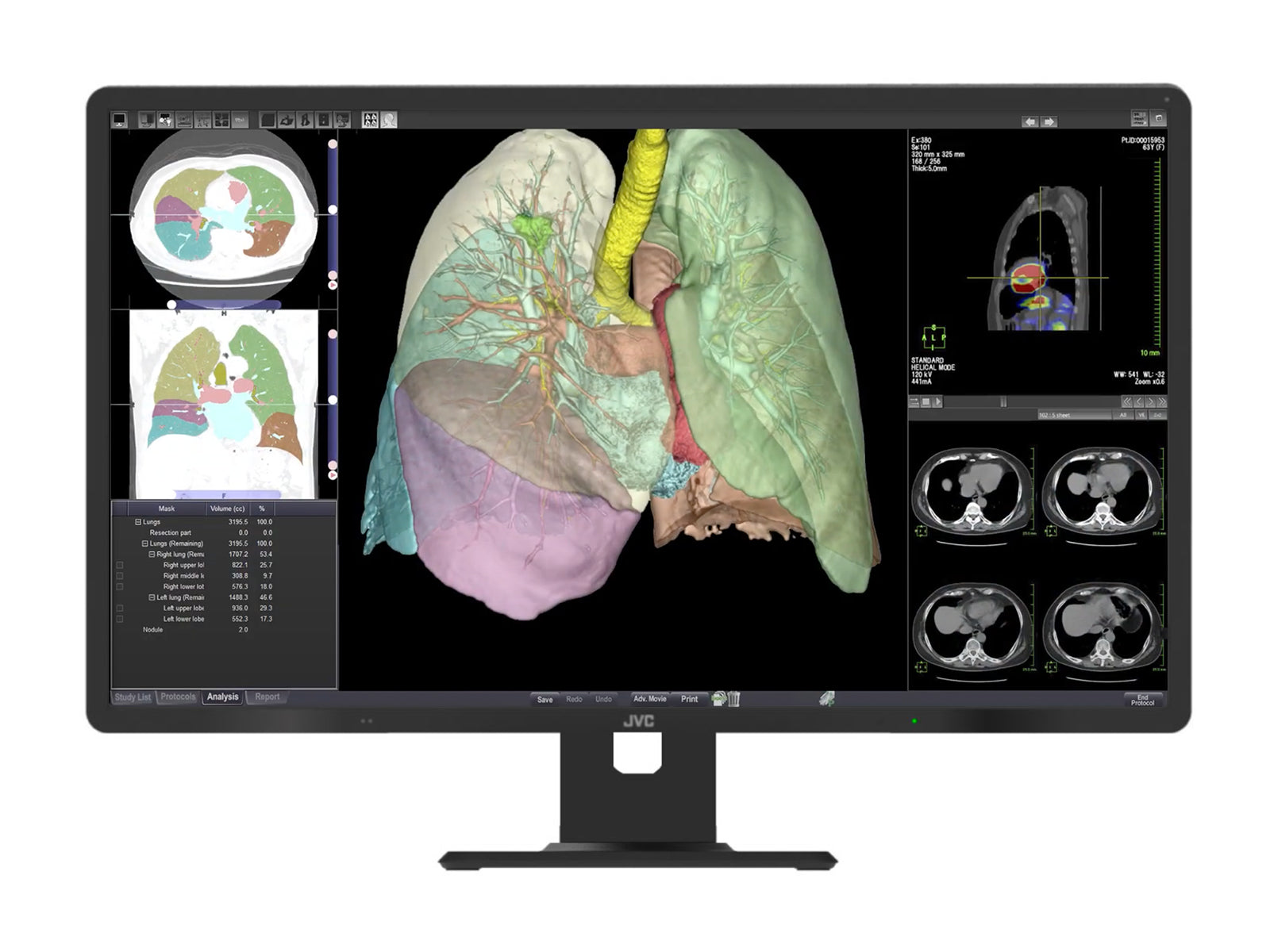

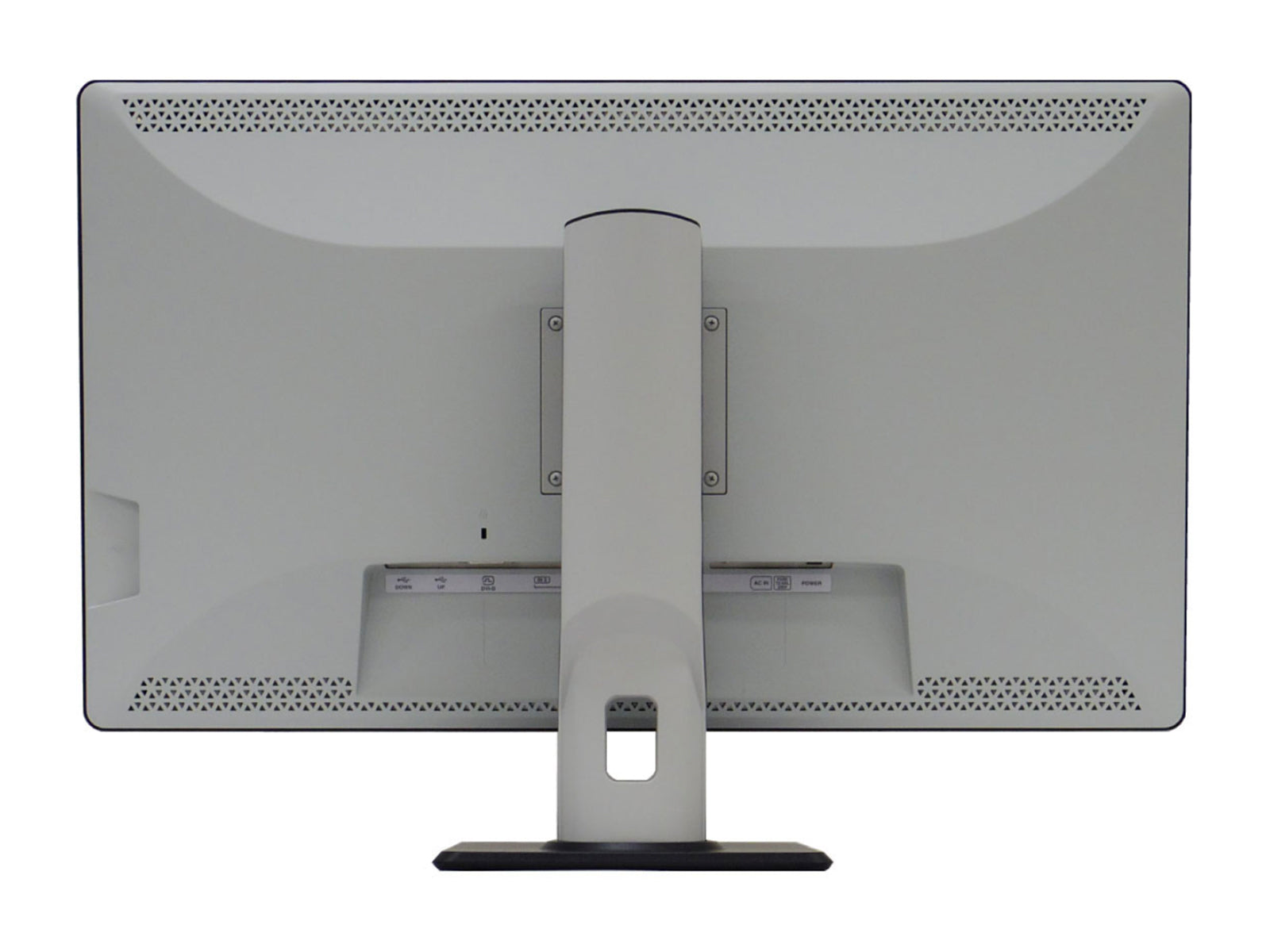

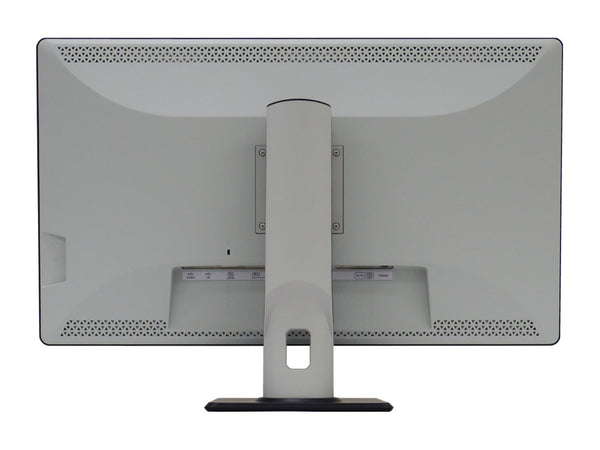

The JVC Totoku CL-R813 8MP for multi-modality diagnosis

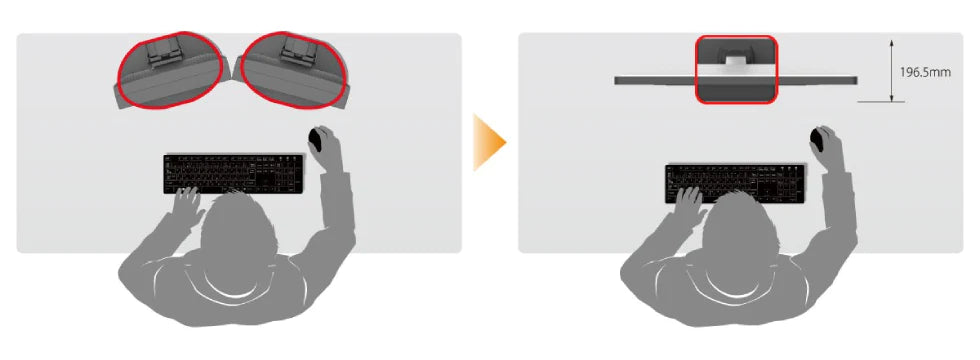

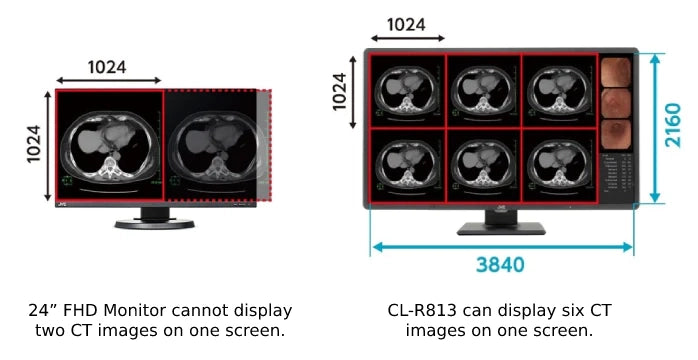

The seamless screen with a wide area of 32 inches and a high resolution of 8 megapixels reduces the load of eye movement and provides a comfortable diagnostic imaging environment. Various images such as DR, CT, MRI and pathology can be displayed and it is free to arrange the layout of windows, significantly improving image reading efficiency.

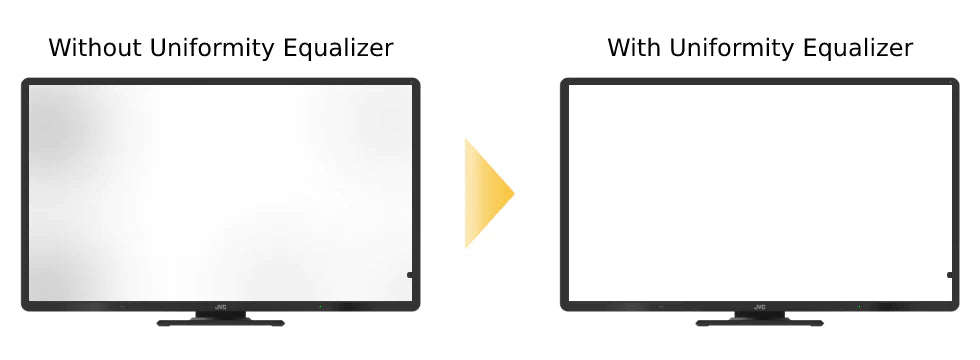

Luminance and color uniformity correction system produces stable images across the screen, keeping perfect reproduction even after long-term use.

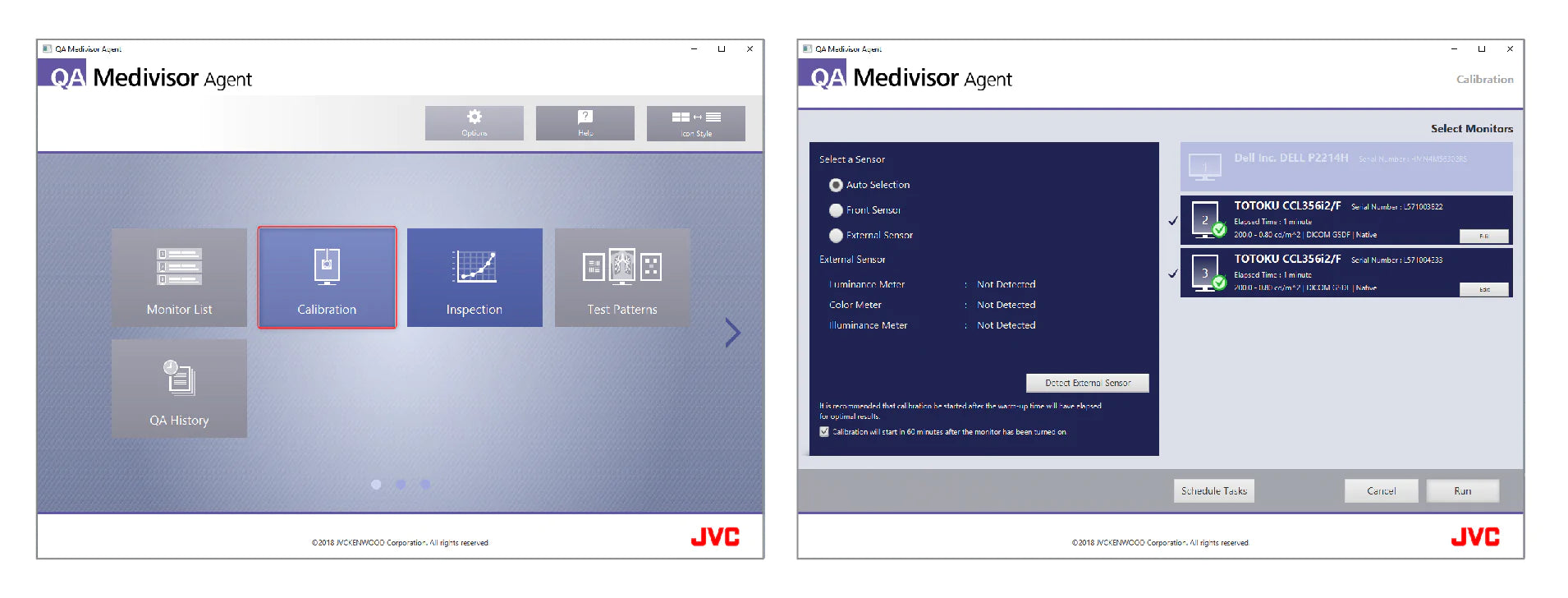

Integrated QA Solution
Managing the daily operation of the Radiology department is now more simplified with QA Medivisor Agent’s calibration and QA standard testing capabilities, combined into an intuitive and easy-to-navigate user interface. This includes QA Medivisor Agent LE, a simplified calibration scheduling tool.
*Optional calibration kit CAL-016 is required for standard QA testing.

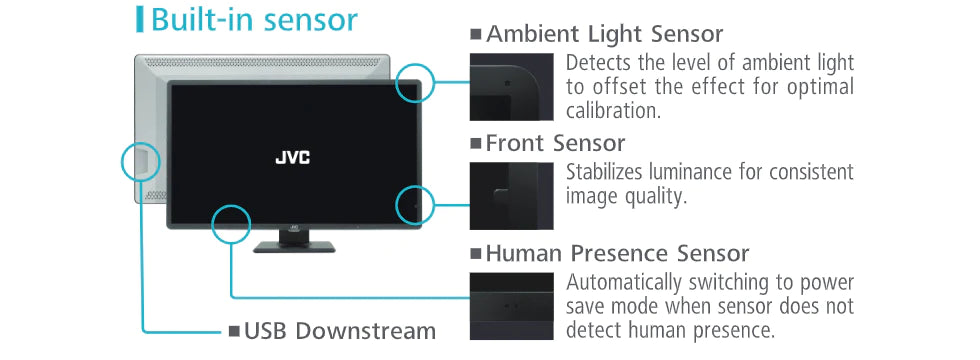

The JVC CL R813 includes several front sensors to efficiently adjust your monitor to fit any reading environment. An ambient light sensor offsets the effects of ambient light to ensure optimal calibration, a color front sensor stabilizes luminance and color for consistent image quality, and the human presence sensor automatically switches to power save mode when you're away.

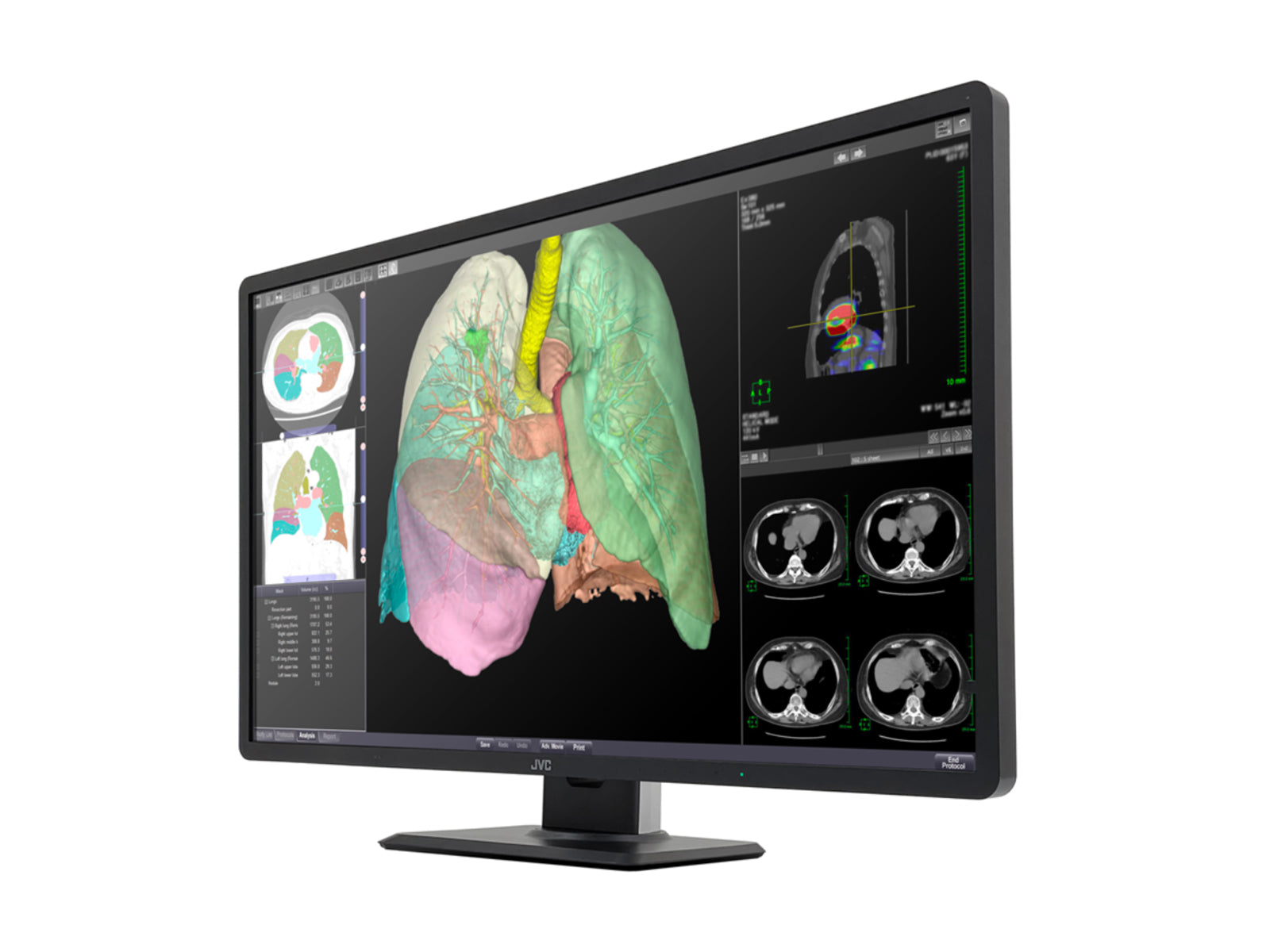

The 32-inch color LCD delivers a wide viewing area, which enables effectively allocate multiple images you need to work on.

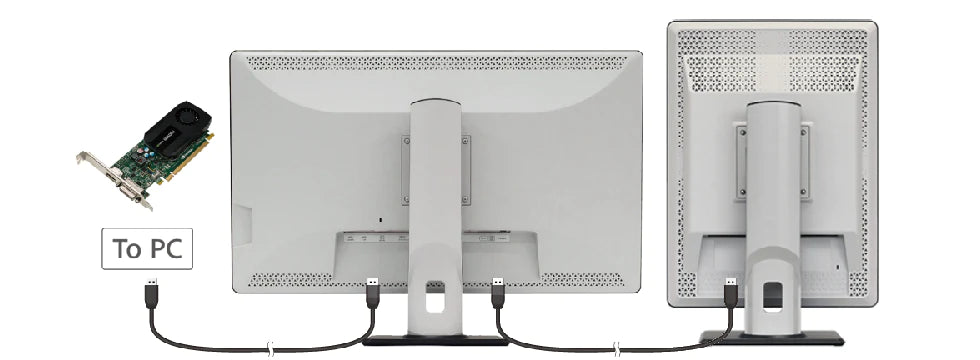

Wire Management / DisplayPort Daisy Chains
With DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.
|Resolution||8MP (3840 x 2160)|
|Pixel Pitch||0.1845 x 0.1845 mm|
|Contrast Ratio||1000 :1|
|Aspect Ratio Hv||17:9|
|Calibrated Luminance||350 cd/m2|
|Max Luminance||400 cd/m2|
|Calibration||Auto (built-in front sensor)|
|Ambient Light Sensor||Yes|
|Screen Technology||TFT, IPS technology|
|Active Screen Size (DIAGONAL)||813 mm (32")|
|Active Screen Size (H x V)||708.48 x 398.52 mm (27.89" x 15.6")|
|Video Input Signals||DisplayPort|
|Recommended For||All digital images, except digital mammography|
|Viewing Angle (H, V)||178°, 178°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||742 x 487.5 x 196.5 mm (29.2" x 19.1" x 7.7")|
|Power Consumption||125 W|
|Power Requirements||100V ~ 240V (±10%) 50/60Hz|
|Weight||22.04 lbs (10 kg)|
