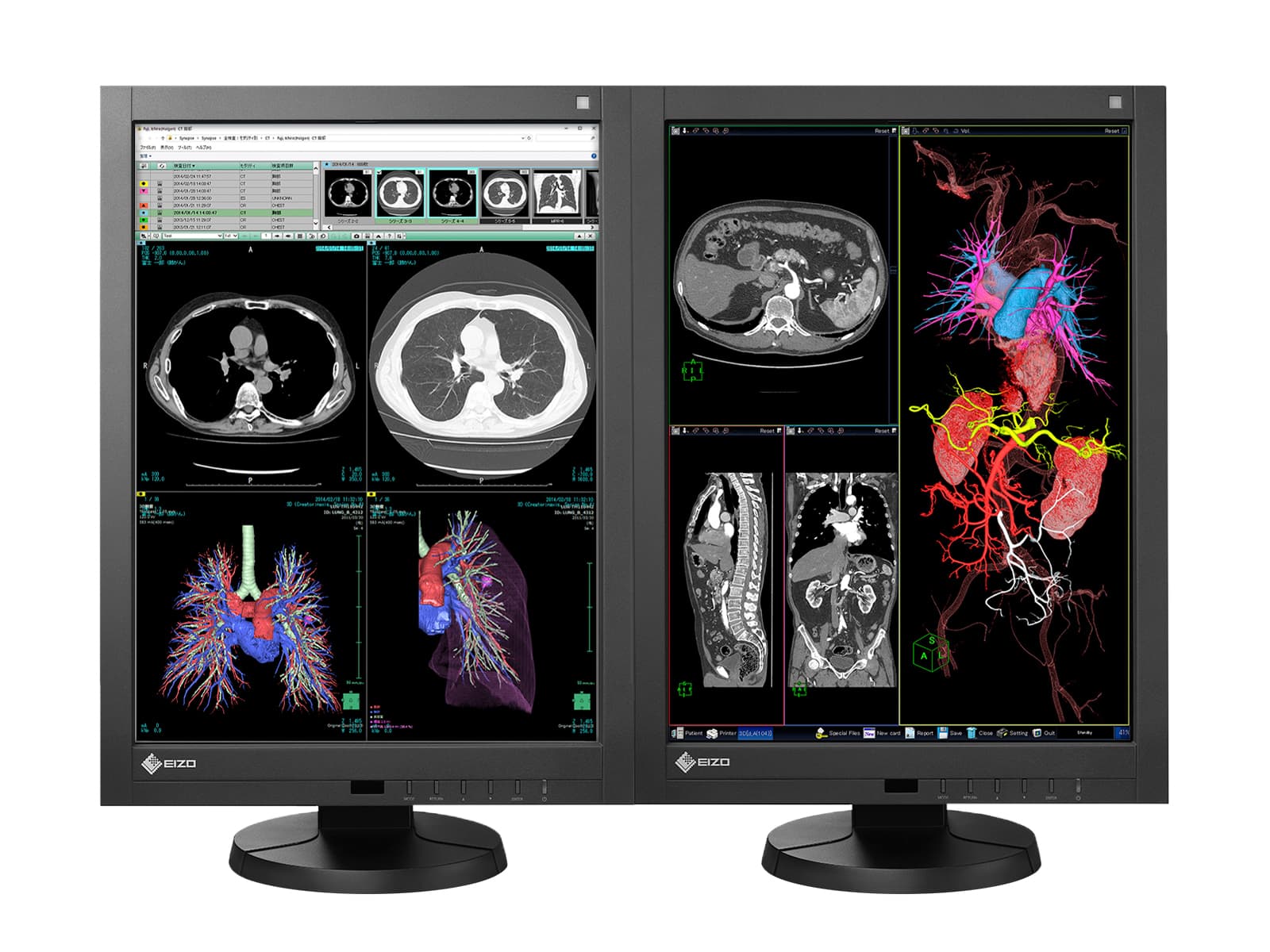

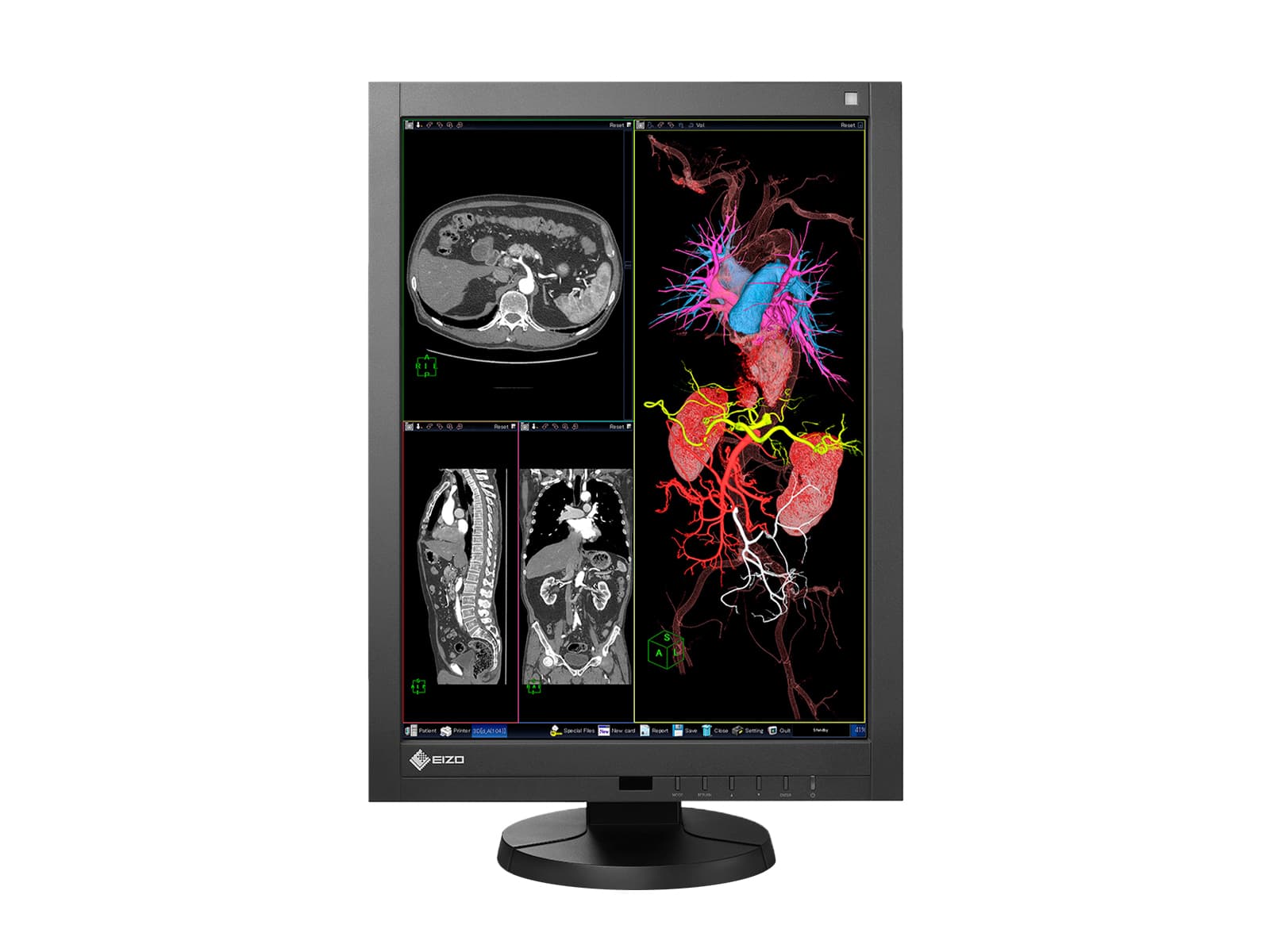

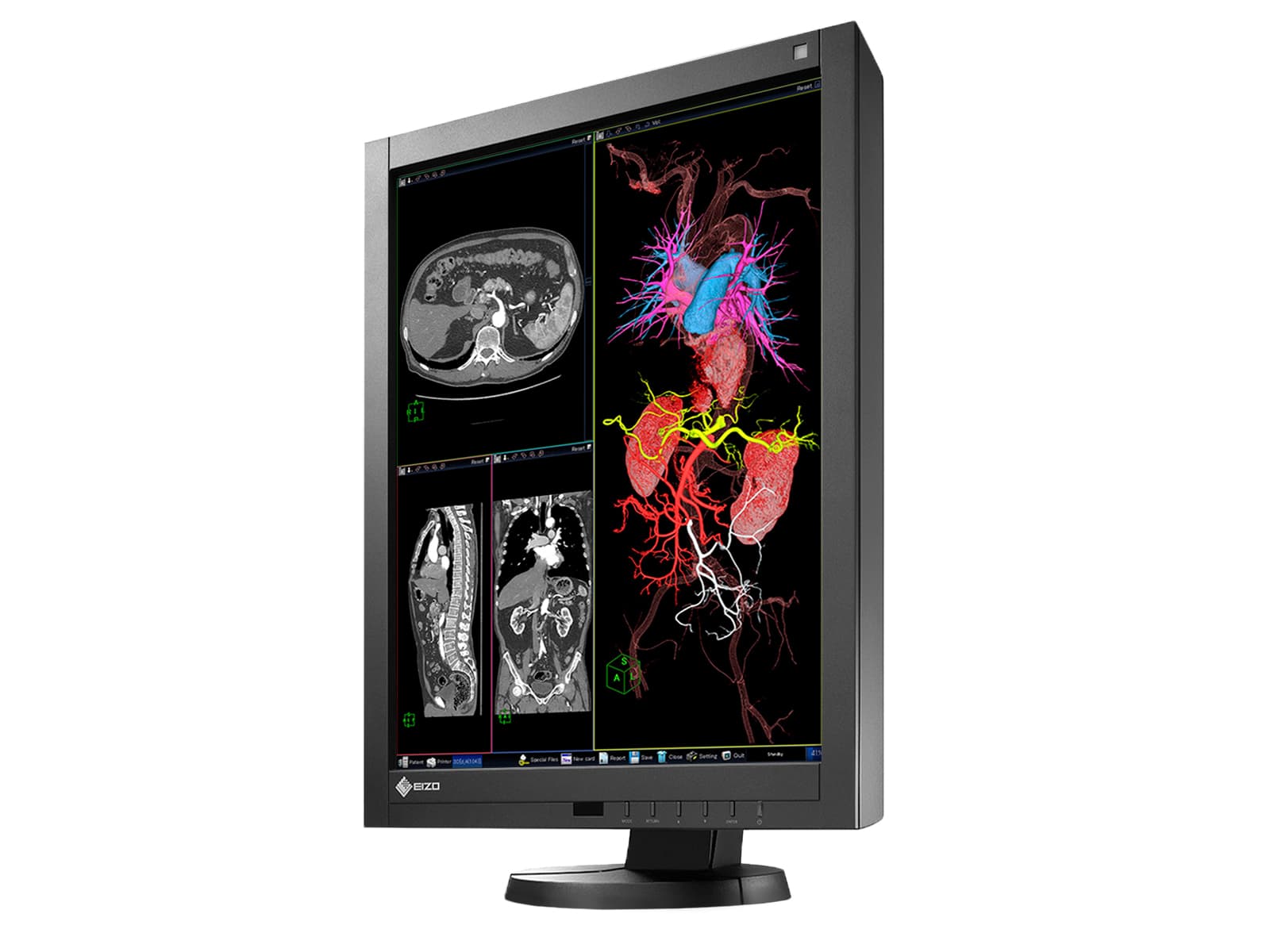

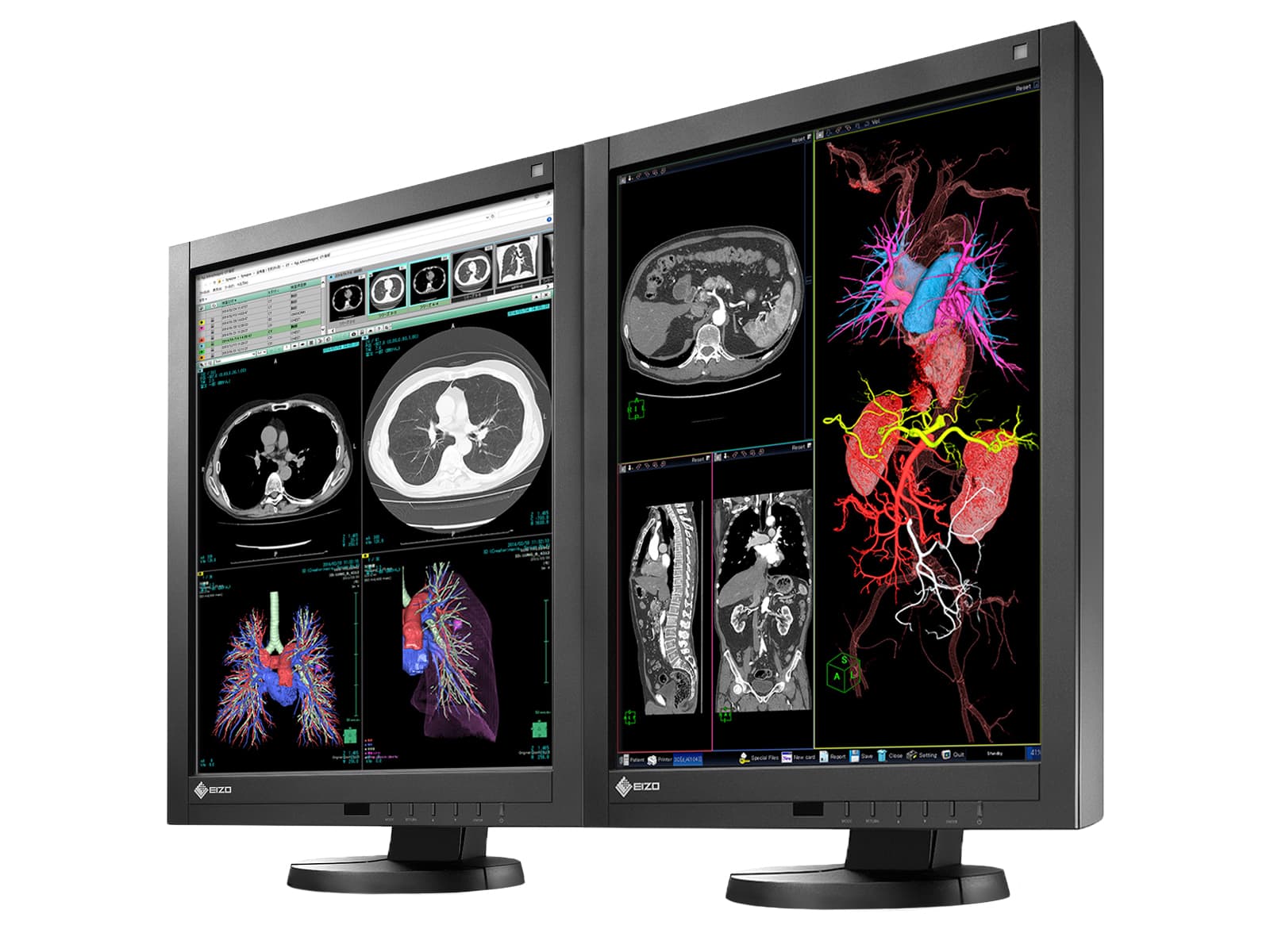

The Eizo Radiforce RX340 is a 3 megapixel, high-brightness, color monitor ideal for accurately displaying x-rays, CR and DR grayscale images, as well as rendering 3D color images and performing image fusion. This high-definition and multifunctional model features precise calibration compliant with the DICOM part 14 standard.
Environmentally-friendly LED backlight
By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption simultaneously. Unlike conventional CCFL backlights, LED backlights to deteriorate more slowly, and thus the monitor offers a longer service life. Since the LED backlight is mercury-free, it will reduce any potential impact on the environment when it is disposed of.
Consistency with DICOM part 14 calibration
With the bundled RadiCS LE quality control software, a simplified calibration compliant with the DICOM Part 14 standard can be performed to correct the monitor's brightness and grayscale tones, ensuring the most accurate and consistent shadings possible over time.
Easy calibration with the integrated front sensor
An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrated to the DICOM Part 14 standard. Without connecting and disconnect, an IFS performs QC tasks and does not interfere with the viewing area. This dramatically cuts monitor quality control workload and maintenance costs.
Monochrome and color images on one monitor
A high-quality IPS panel with a high contrast ratio and high brightness makes this model ideal for displaying 3D rendering and fusion color images and CT and MRI monochrome images compliant with the DICOM Part 14 standard.
Brightness Uniformity for a steadier image across the screen
The Digital Uniformity Equalizer (DUE) function provides optimum brightness uniformity, which is difficult to attain due to LCD monitors' characteristics.
Quick brightness stabilization for instant viewing
At startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level. Also, a sensor measures the backlight brightness and compensates for brightness fluctuations caused by the ambient temperature and time passage.
Brightness stability within usage time is guaranteed.
EIZO's confidence in its product quality extends to brightness stability, which is also covered during the usage time specified in the warranty.
Color and monochrome images with separate gamma curves
EIZO's unique Hybrid Gamma function distinguishes whether the images displayed are monochrome or color and displays each image in optimum brightness and grayscale tones. This expands PACS applications' usability, constantly attaining sufficiency with a mix of color and monochrome medical images.
Accuracy in distinguishing between grayscale and color images may depend on how they are aligned. Viewer software compatibility verification is required.
Presence sensor for power savings
The presence sensor feature unites convenience with savings by ensuring that the monitor conserves power when it is not in use. The presence sensor prompts the monitor to switch to power save mode when it detects the user is away from the monitor and then resume normal operation when the user returns.
The monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion.
A 10-bit color graphics board and 10-bit color viewer software needed for a 10-bit color display.
Mode selection for optimum viewing
Selectable with the front panel buttons, the CAL Switch function allows for various imaging modes of different modalities such as CR, CT, and endoscope images. Furthermore, auto mode settings can be made with the Auto CAL Switch function.
Wide viewing angles allow multiple viewers to see the screen and ensure minimal color shift when viewed from the side.
Versatile positioning for improved operability
EIZO's highly versatile stand offers tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.
Customer assurance with medical standards
Meets the strictest medical, safety, and EMC emission standards.
Docs & Drivers
|MFG. Product Number||RX340BK|
|Resolution||3MP (1536 x 2048)|
|Screen Technology||TFT Color LCD Panel (IPS)|
|Active Screen Size (DIAGONAL)||21.2'' (540 mm)|
|Pixel Pitch||0.21075 x 0.21075 mm|
|Viewing Angle (H, V)||170°|
|Calibration||Auto (Built-in Front Sensor)|
|Calibrated Luminance||400 cd/m2|
|Max Luminance||900 cd/m2 (typical)|
|Contrast Ratio||1000: 1 (typical)|
|Video Input Signals||DVI-D, DisplayPort|
|Weight||23.6 lbs (10.7 kg)|
|Recommended For||CR, DR, MR, CT, US, NM|
