Shape of Comfort

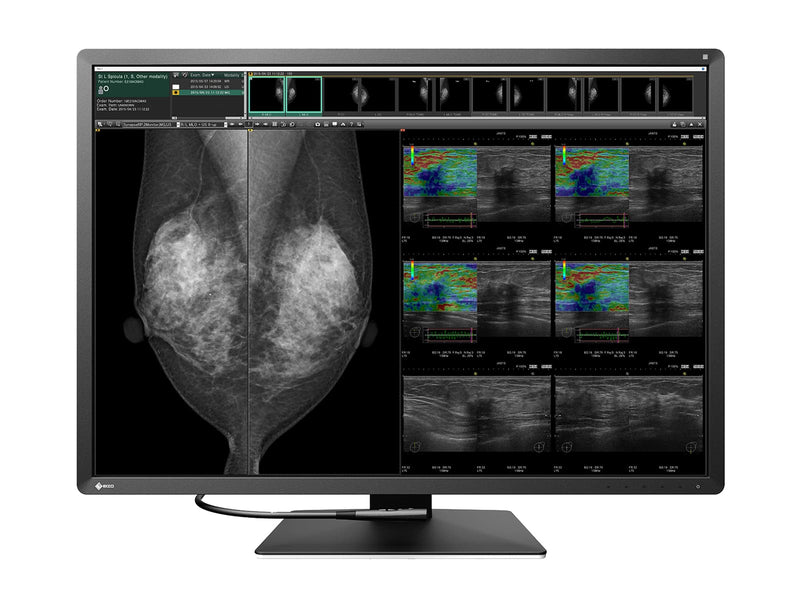

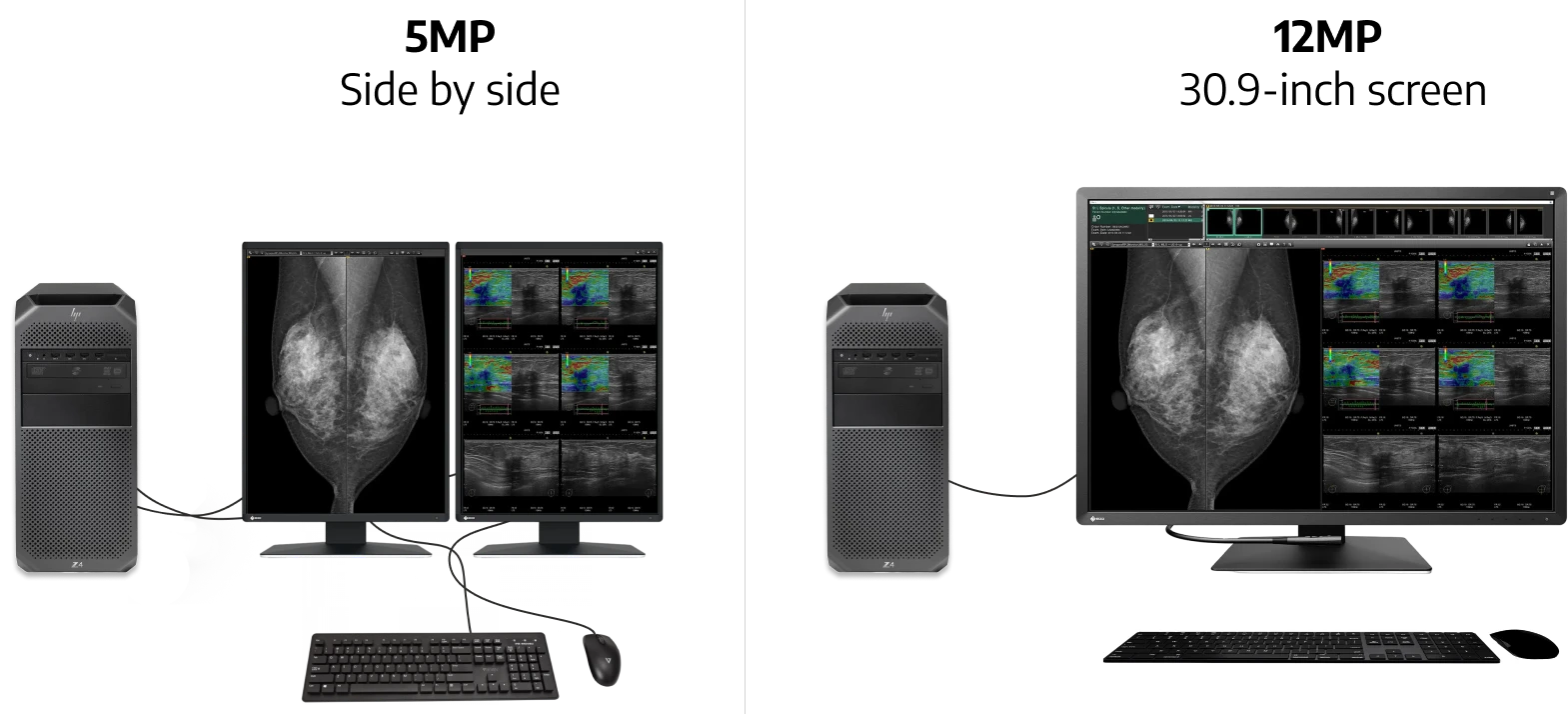

Compact 12 megapixel monitor packed full of features to improve comfort and work efficiency.

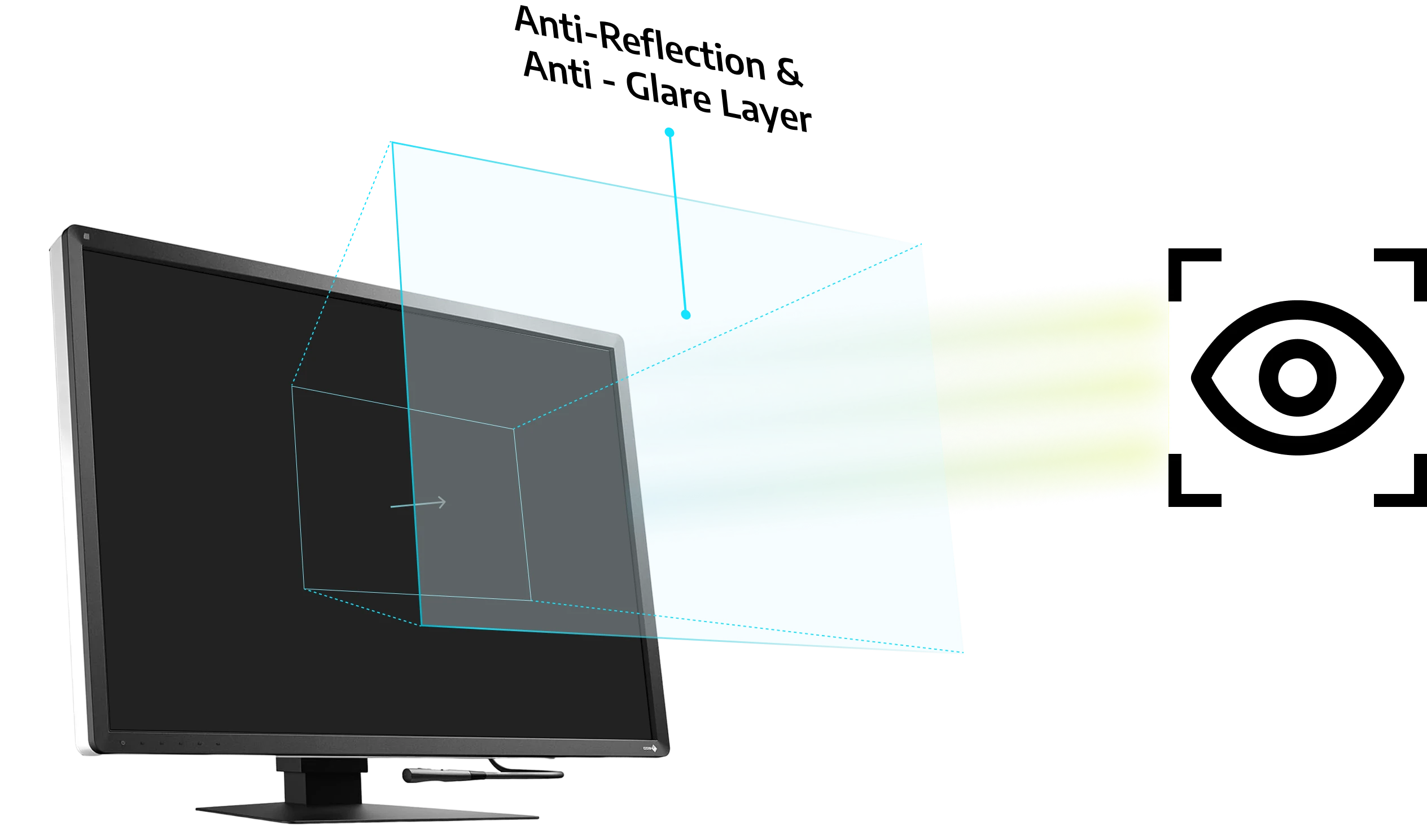

1. Eye relief with Comfort Light
2. Easily navigate your workspace
It is also equipped with a spotlight which allows you to see printed documents or your keyboard. The position can be easily adjusted in order to achieve the ideal lighting.

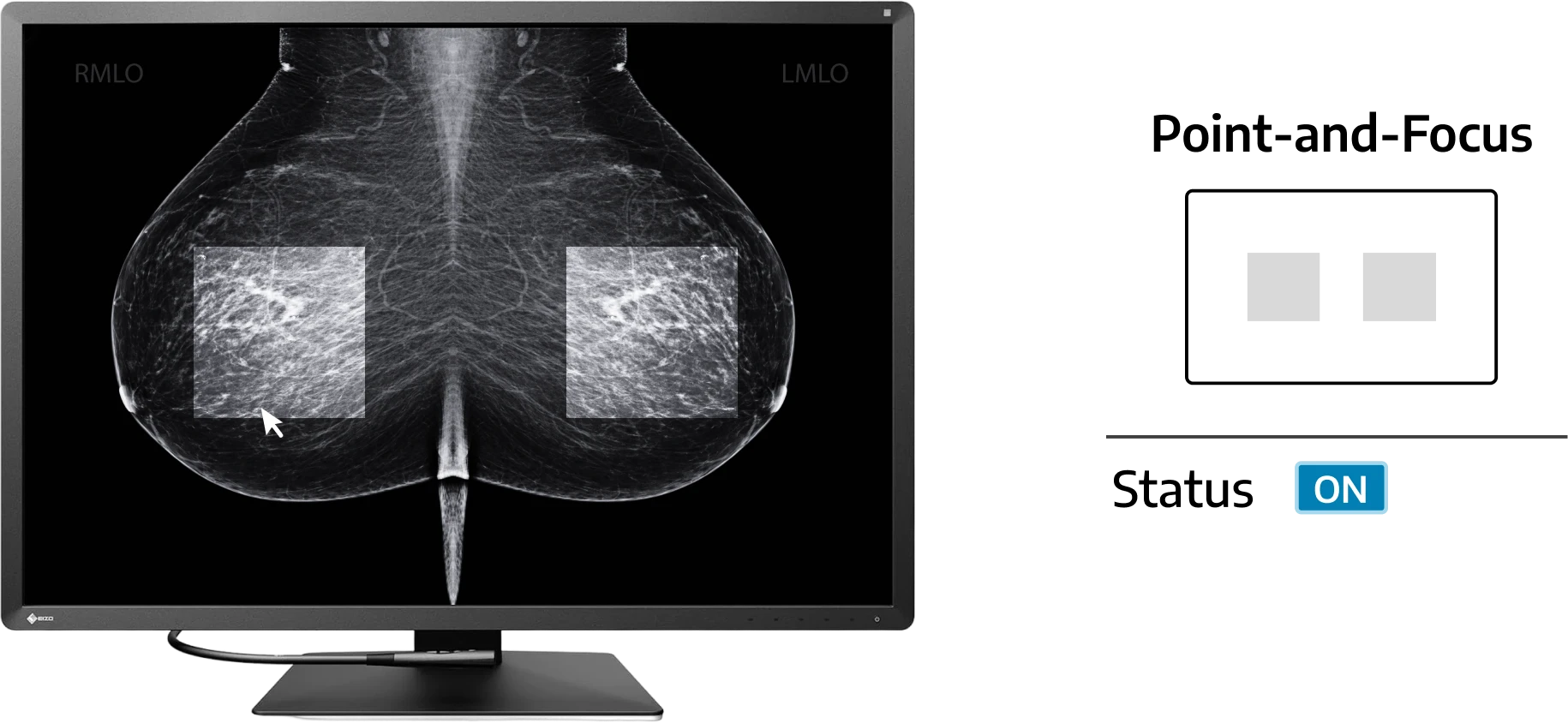

Point-and-Focus: all eyes on the analysis
The Point-and-Focus function allows you to select and focus on relevant image areas quickly using your mouse or keyboard. By adjusting the brightness and greyscale, the interesting parts of an image are highlighted by dimming the surrounding areas.

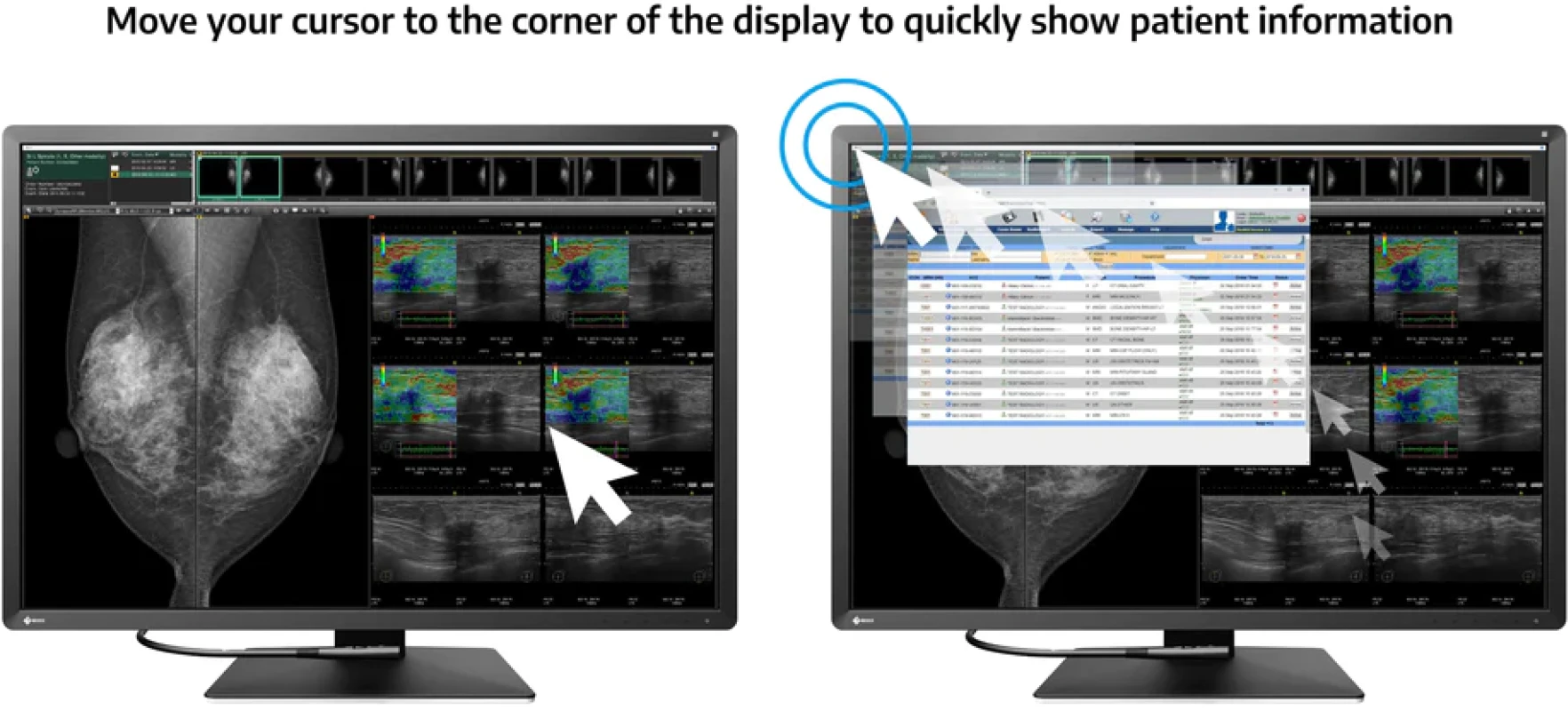

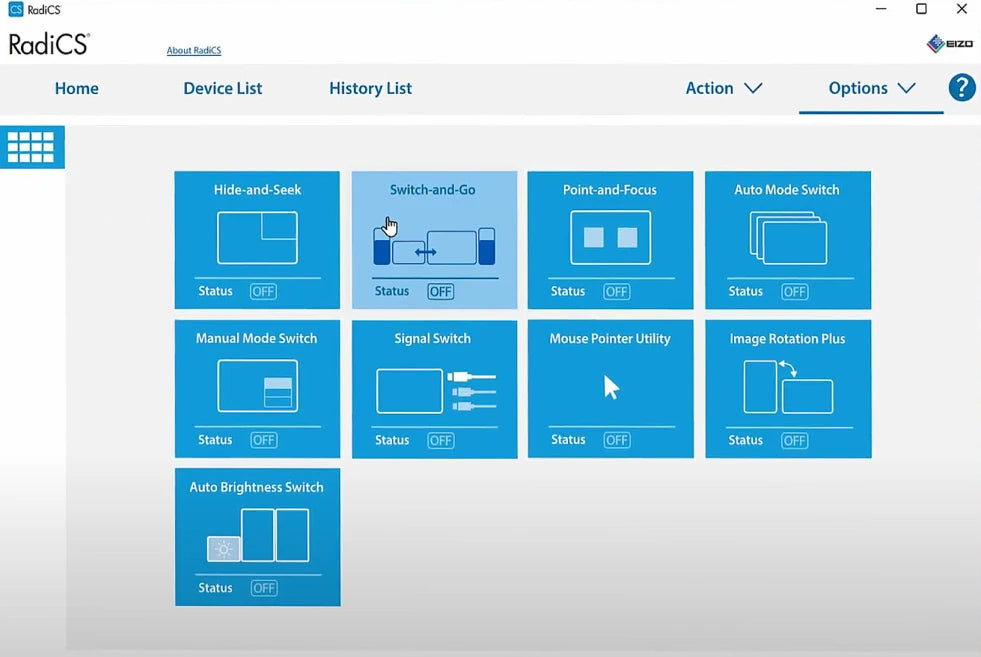

Hide-and-Seek: fast retrieval of information
Hide-and-Seek adds the benefit of making it possible to access reports, patient files and other information on the display quickly and efficiently without needing an additional monitor. When you move your cursor towards or away from the edge of the screen, a PinP window hides and displays information.

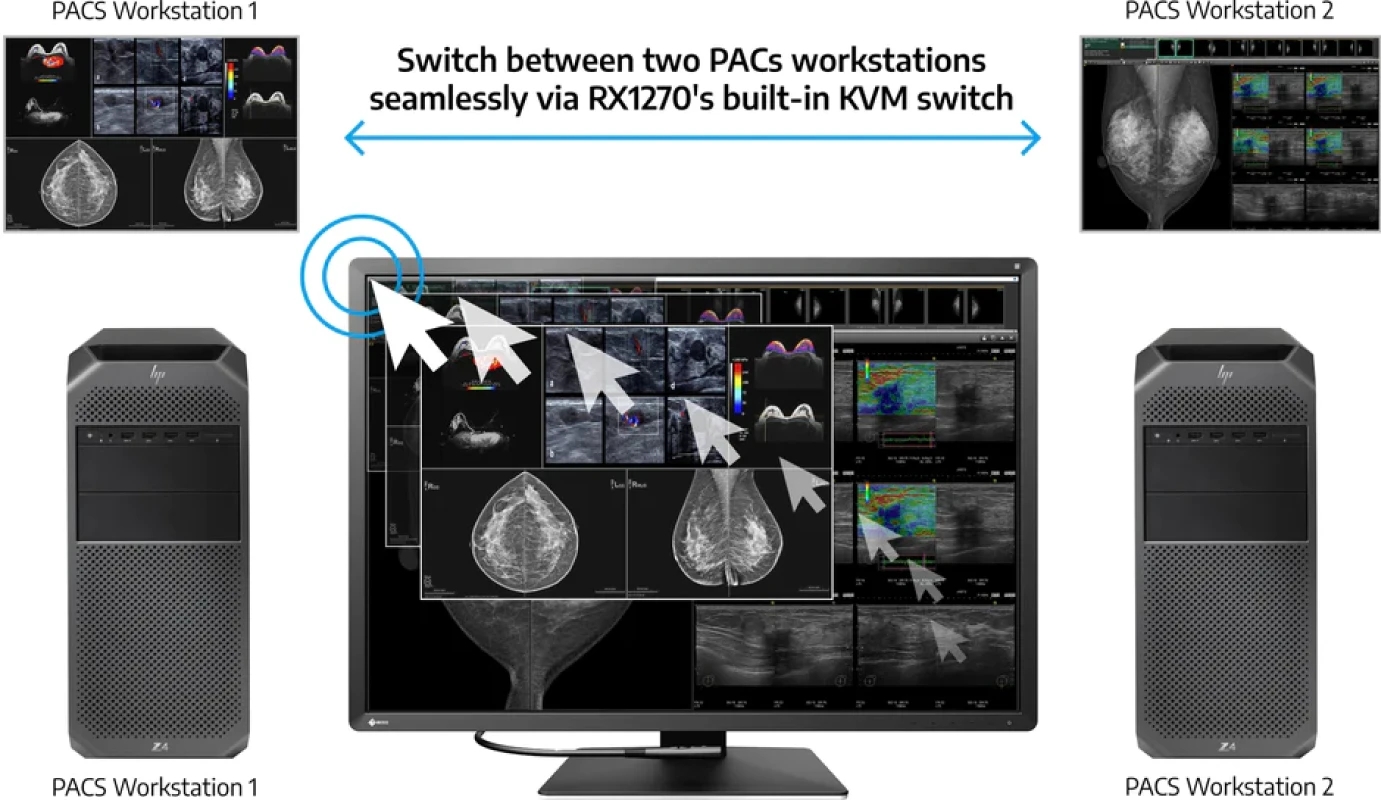

Switch-and-Go: just one keyboard and mouse for two systems
Switch-and-Go makes it possible to work using just one keyboard and mouse at diagnostic imaging stations that make use of two computers. You can switch between the two systems simply by moving your cursor from one screen to the other. This ensures greater work efficiency and allows you to maintain a clear overview of your workstation.

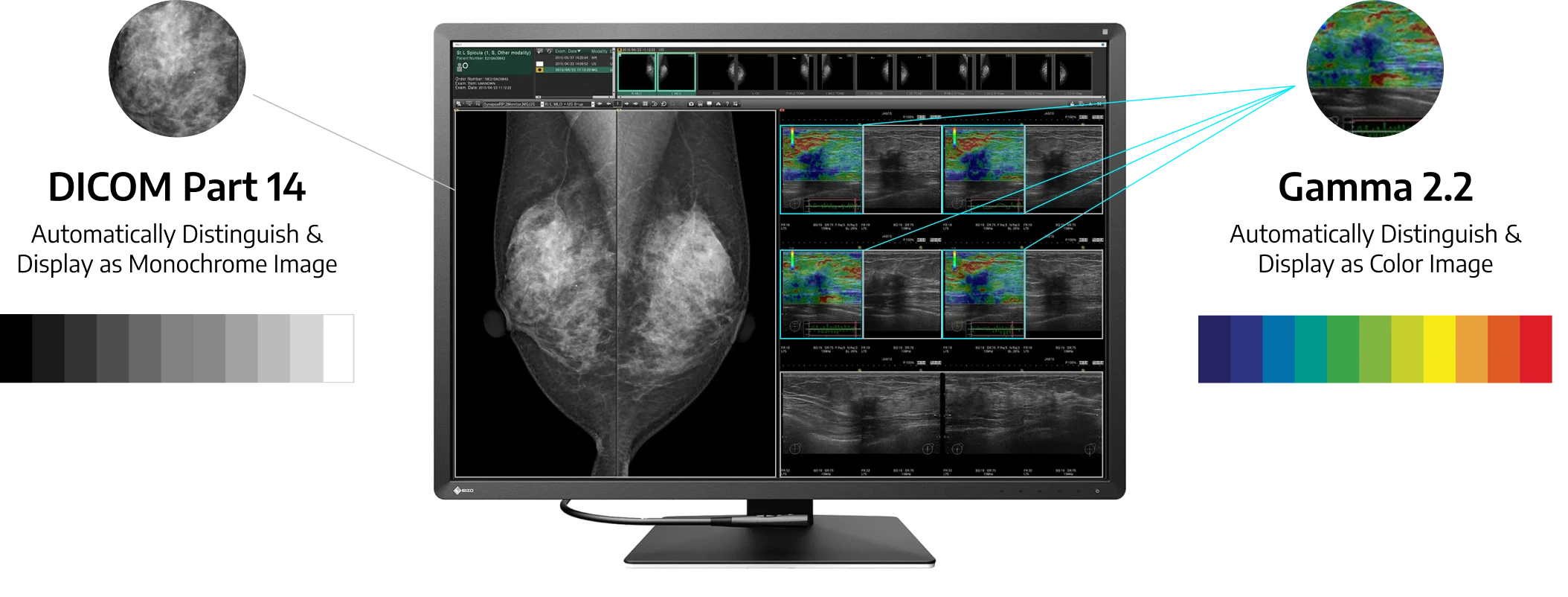

Observe monochrome and colour images on a single monitor
The hybrid gamma PXL functionality automatically differentiates between monochrome and colour images, pixel by pixel. This creates a hybrid display on which each pixel is displayed with the ideal tone value. In turn, this achieves a greater degree of precision and reliability than for conventional planar detection methods.

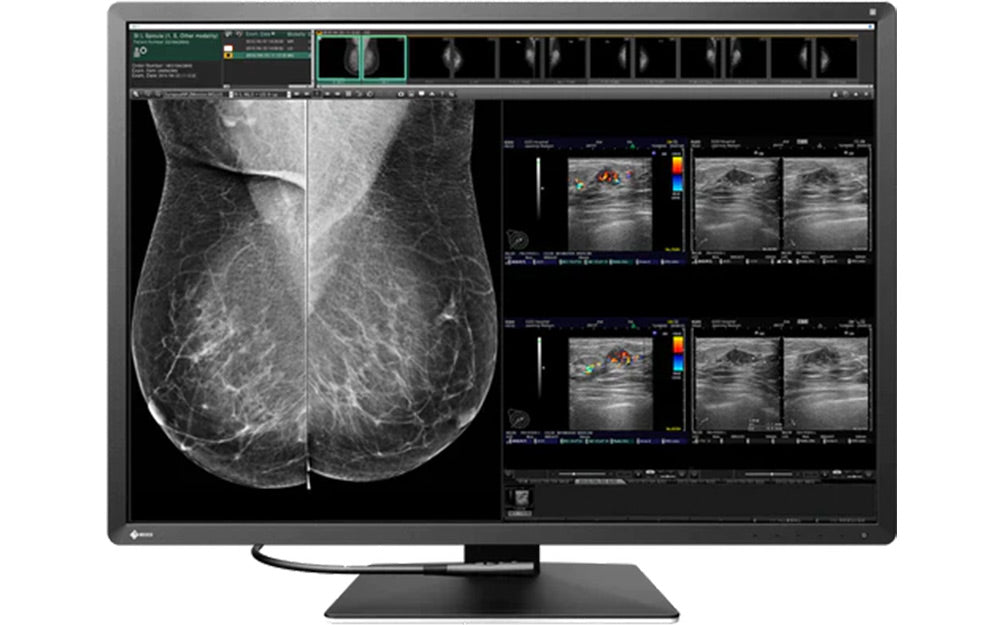

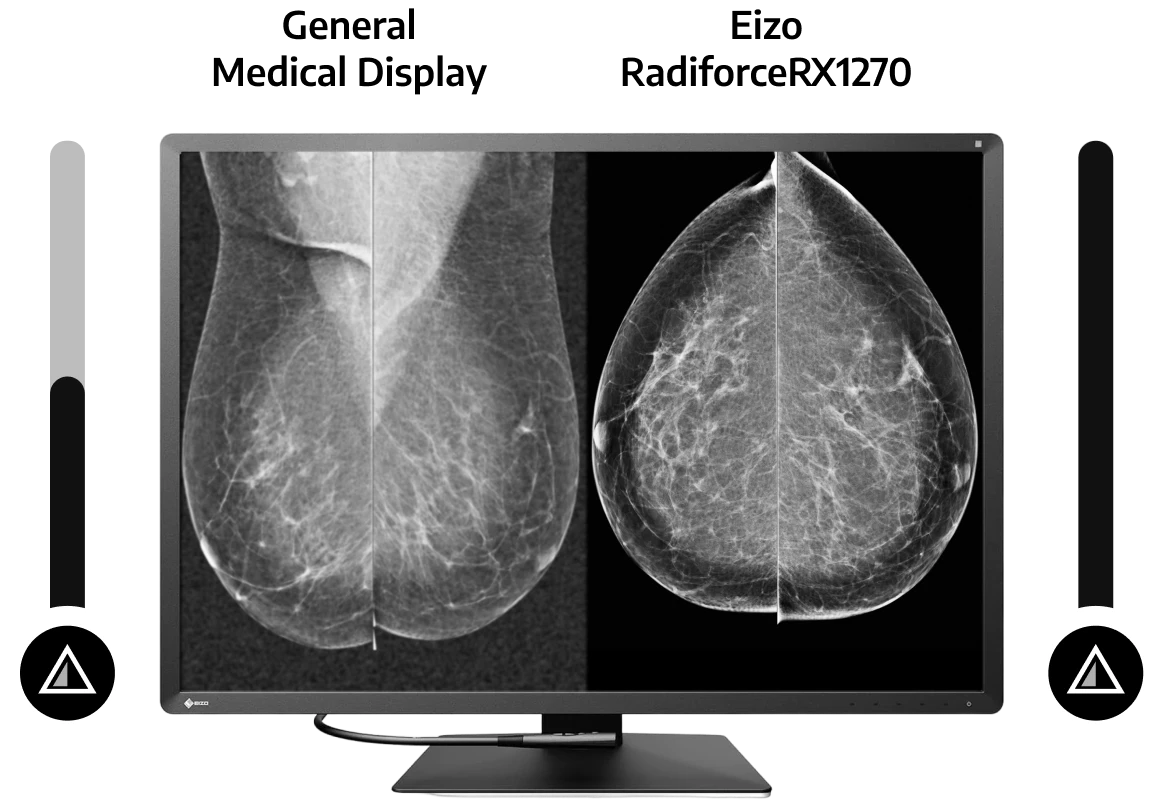

The RX1270 reproduces sophisticated monochrome images from breast tomography or mammography as reliably as colour images from breast MRIs or CTs, ultrasound scans and pathology. In practical application, this means a significant increase in efficiency, since images from various imaging methods can be observed on a single monitor.

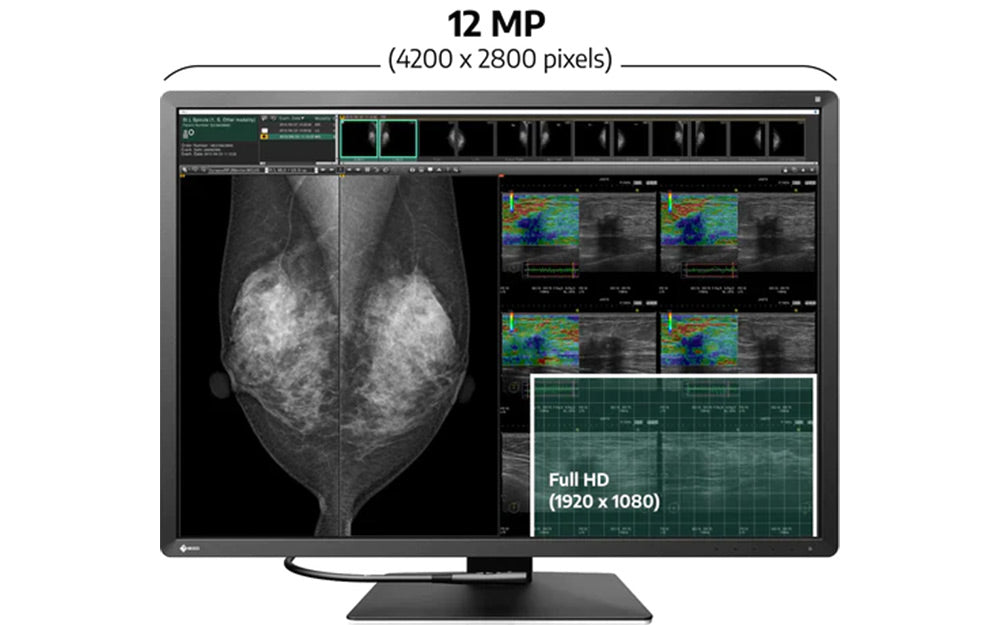

Sharp, High-resolution Images
The monitor has a pixel width of 0.1554 mm and thereby reproduces even, high-resolution, sharp, and high-depth images without any kind of granularity.

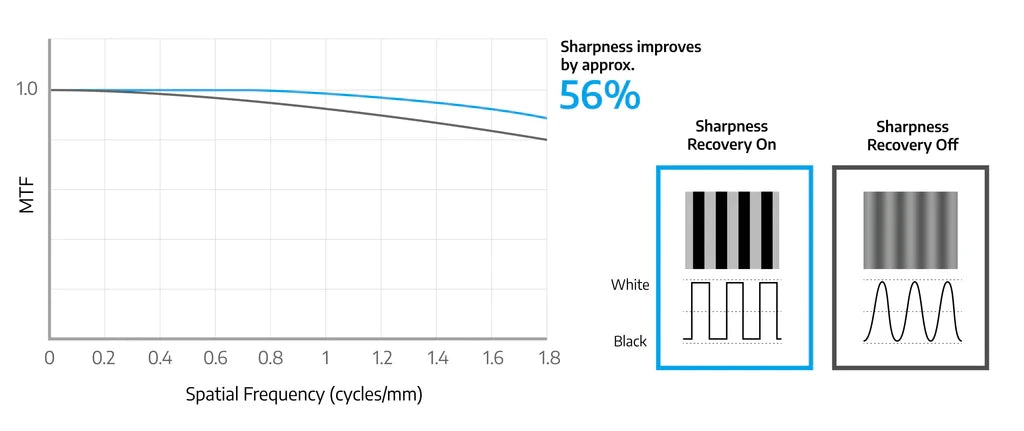

LCD panels with a high brightness level tend to have more blurry image rendering thanks to over-framing than would be possible in comparison with an acquired exposure. Therefore, EIZO offers blur reduction anchored in monitor hardware. It retrieves details lost in the contours on the screen, meaning that the image is rendered as clearly as possible.
Stable display using AI
The colour and brightness of an LCD monitor can shift due to changes in ambient temperature and the temperature of the monitor itself. Medical Imaging RadiForce monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor, as well as estimating the temperature of the surrounding environment. With this technology, the monitor adjusts in real-time so gradations, colour, brightness, and other characteristics continue to display accurately. Furthermore, EIZO uses AI (artificial intelligence) in the estimation algorithm of the RX1270 so it can distinguish between changing temperature patterns to calculate an even more accurate correction
Secure image quality thanks to AAPM/Euref/DIN compliance
The display properties, in particular brightness and contrast, are suited to the creation of image rendering systems compliant with DIN 6868-157. The DICOM® GSDF characteristic is already precisely configured in the factory. This means that greyscales are consistent, which is vital for diagnostics.

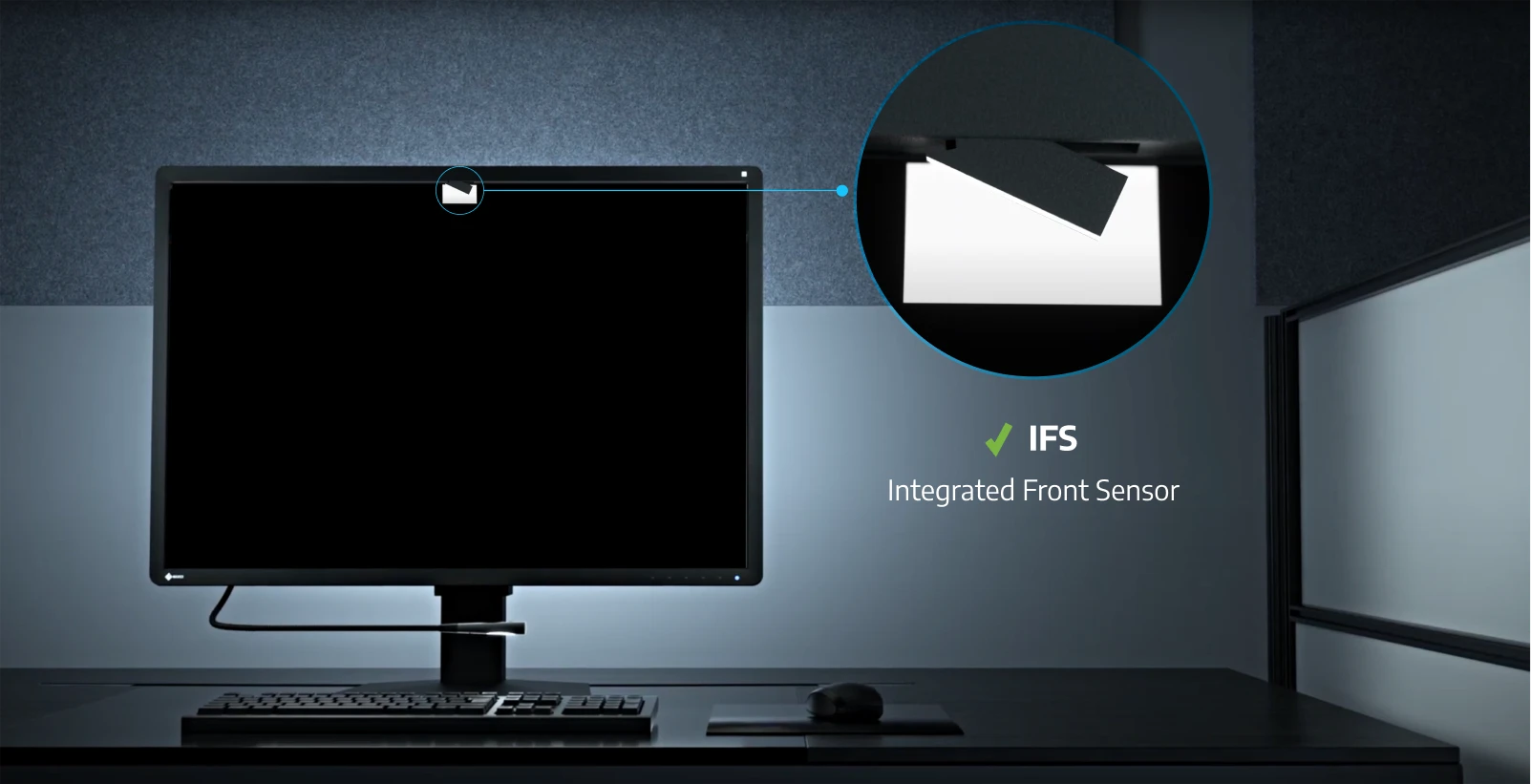

Balanced image quality thanks to an integrated front sensor
The precise calibration of white point and tone value characteristic curve is provided by an integrated front sensor (IFS). This measures the brightness and grayscales and calibrates the monitor autonomously according to the DICOM standard. The sensor works automatically, without restricting the field of vision of the monitor. You can save the costs, time, and effort of maintenance and rely on a consistently balanced image quality.

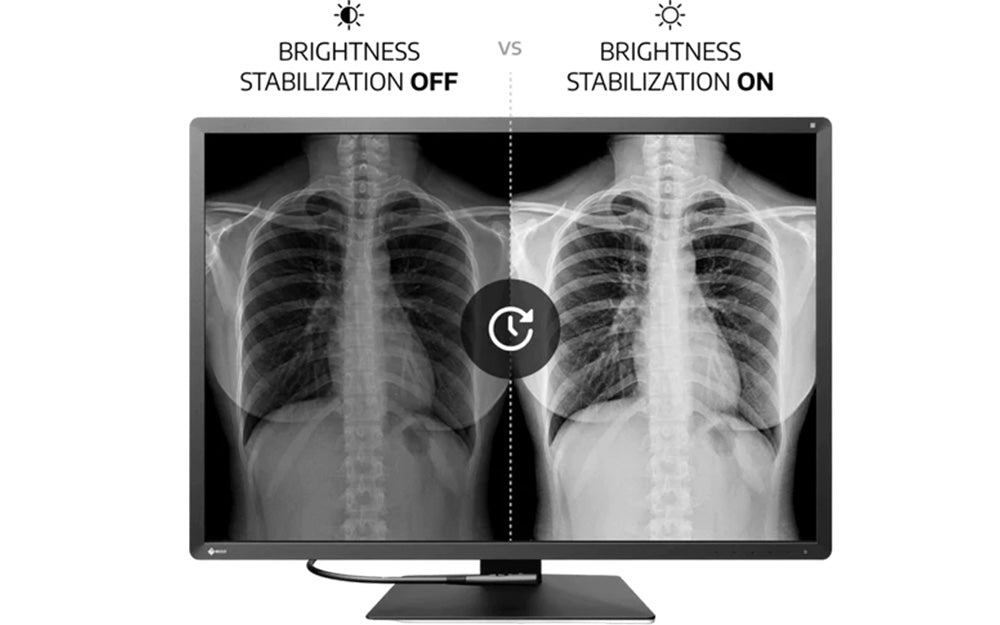

Constant brightness during operation
A sensor for the backlight permanently determines the luminance of the monitor. The benefit: The defined and calibrated values are rendered exactly just seconds after the monitor is turned on and remain constant during the entire period of use. The sensor is invisibly integrated in the monitor.
Uniform brightness over the entire screen
The monitor shines thanks to its uniform illumination. This is down to the Digital Uniformity Equalizer (DUE), which corrects imbalances automatically, pixel by pixel. Grey tones of radiological and other medical images are correctly rendered over the entire display. This is vital for diagnostics.
One Billion Hues, Thanks to the 13-bit Look-up-table
Precise colour reproduction is controlled via a 13-bit look-up table (LUT). A maximum of 10-bit resolution, or up to one billion hues, is available via DisplayPort. This ensures flawless colour reproduction of MRI, ultrasound, and pathology images. As such, the recording curve and microstructures required for diagnosis can be precisely detected.
Docs and Drivers
|MFG. Product Number||RX1270|
|Resolution||12MP (4200 x 2800)|
|Active Screen Size (DIAGONAL)||31''|
|Pixel Pitch||0.1554 x 0.1554mm|
|Viewing Angle (H, V)||178° / 178°|
|Max Luminance||1200 cd/m²|

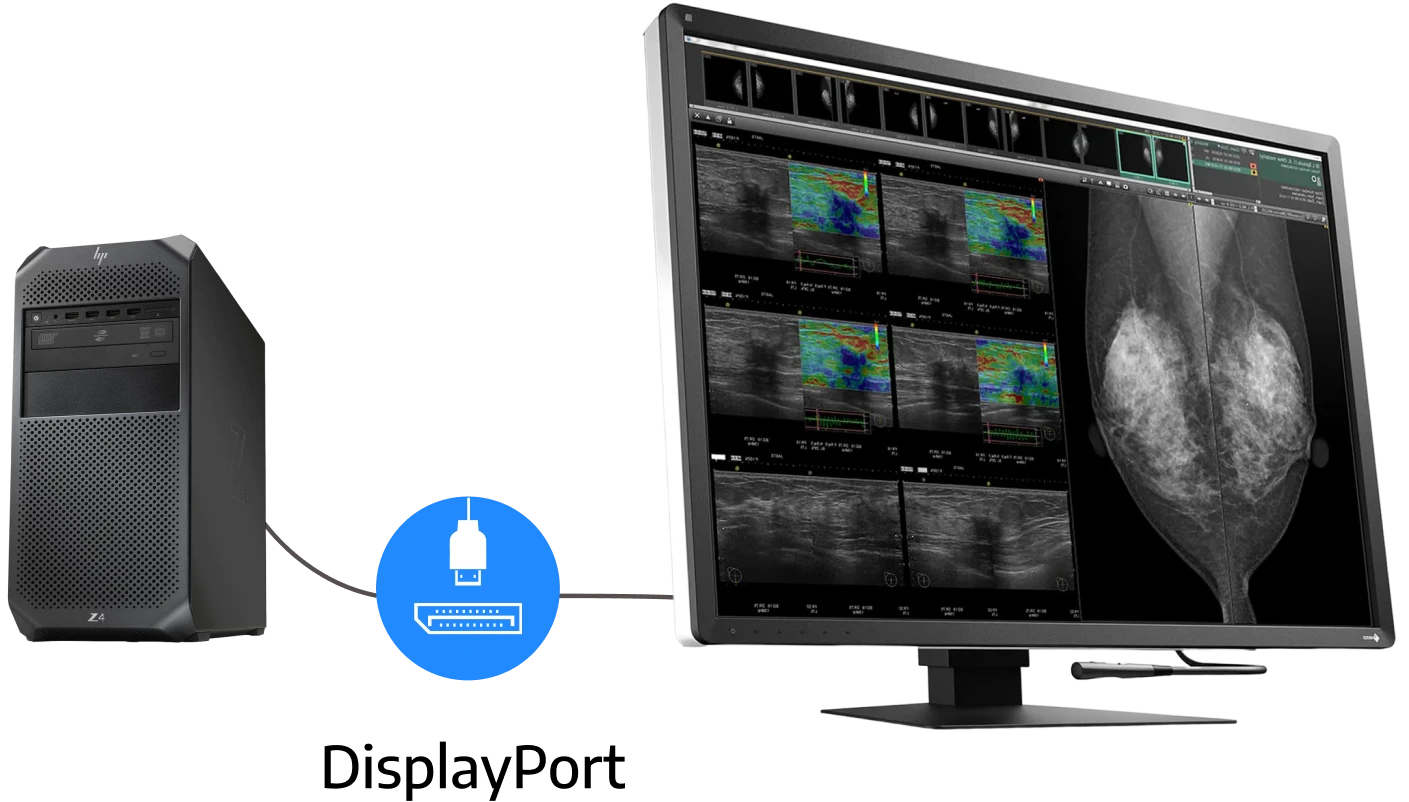

|Video Input Signals||2x DisplayPort, HDMI|
|Weight||34.5 lbs (15.6 kg)|
