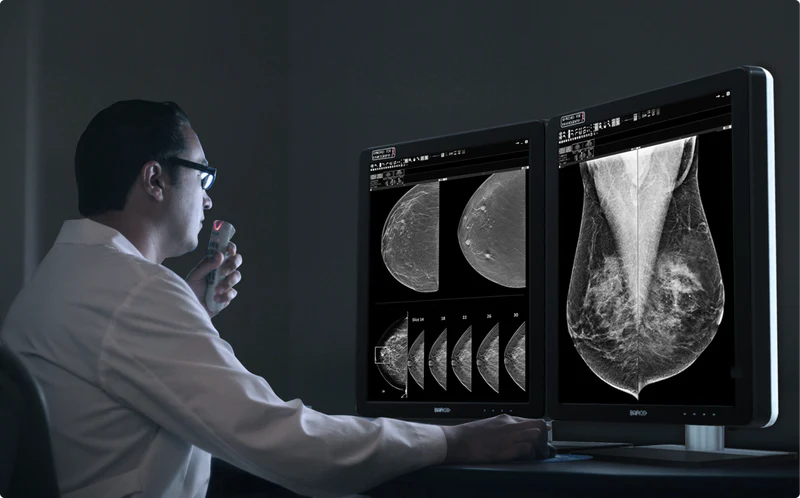

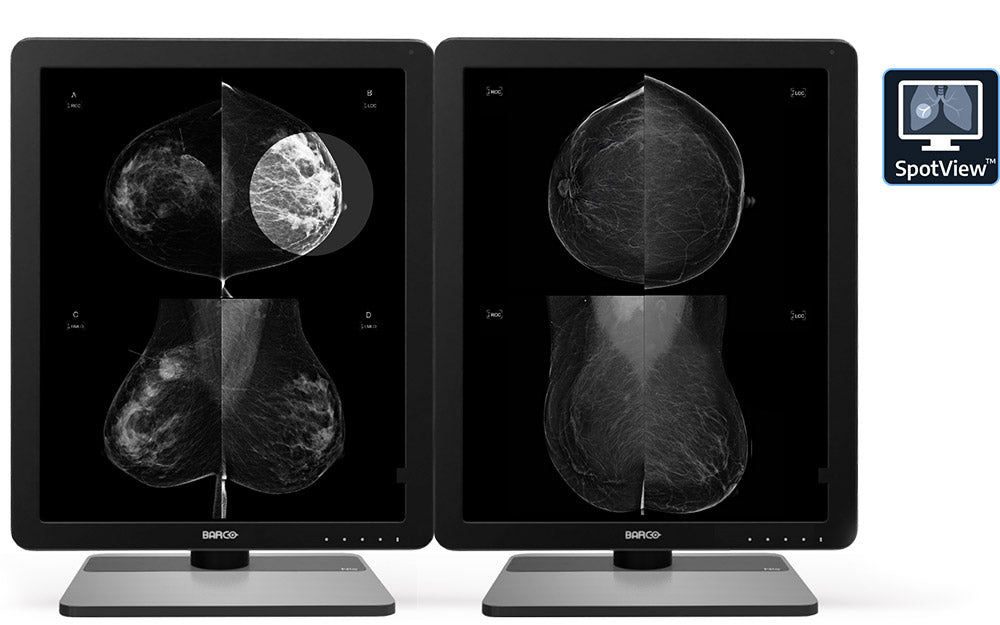

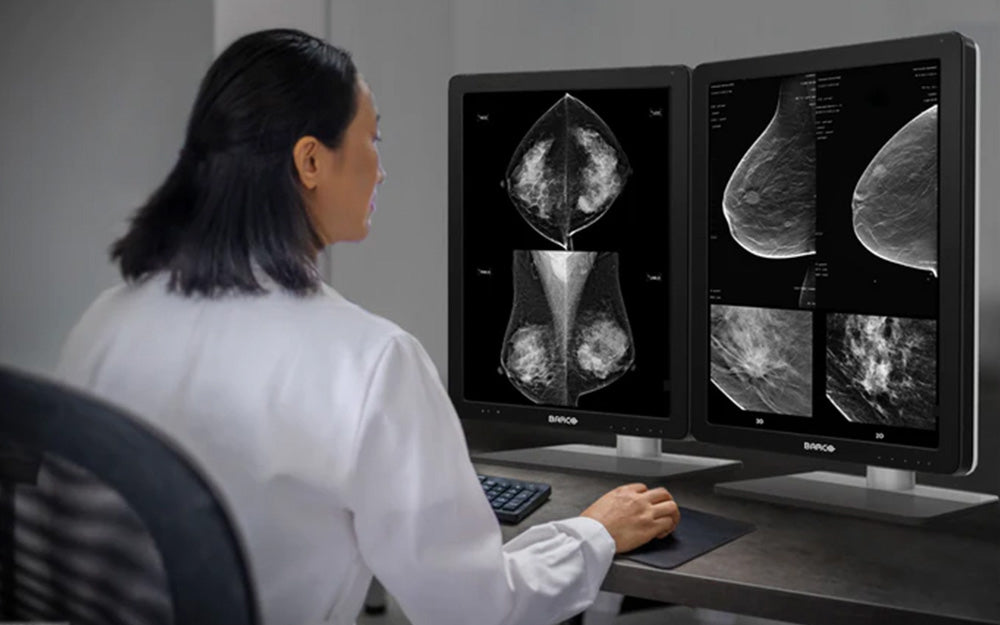

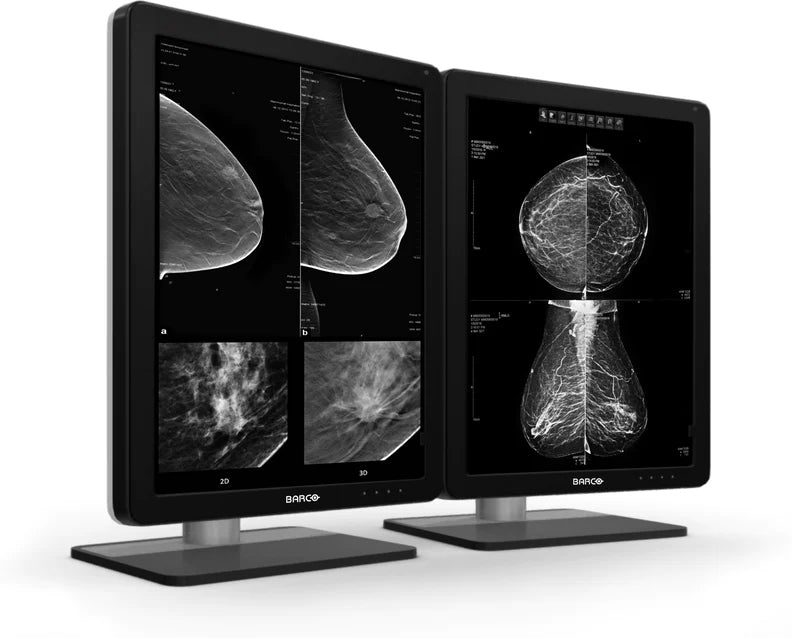

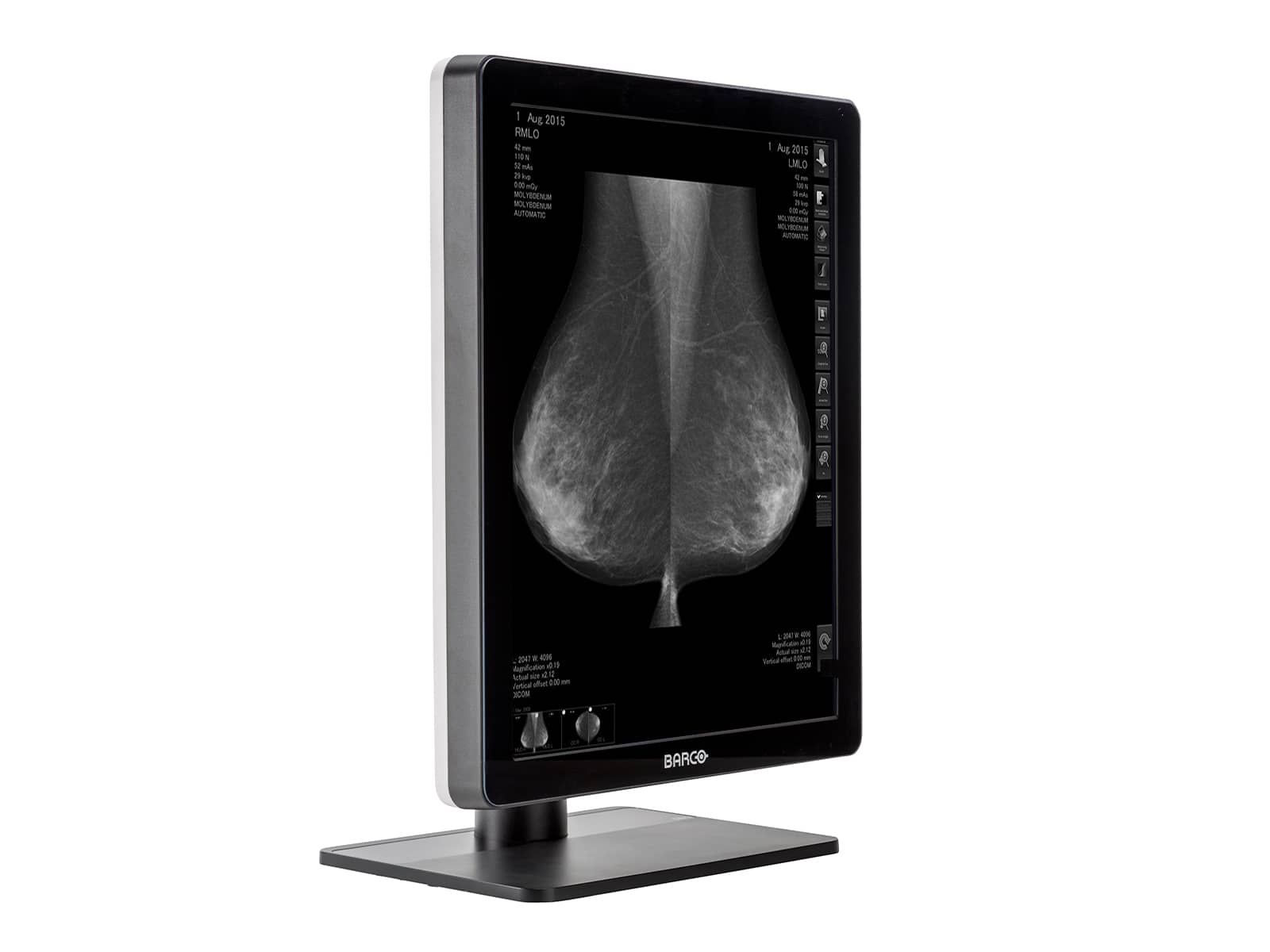

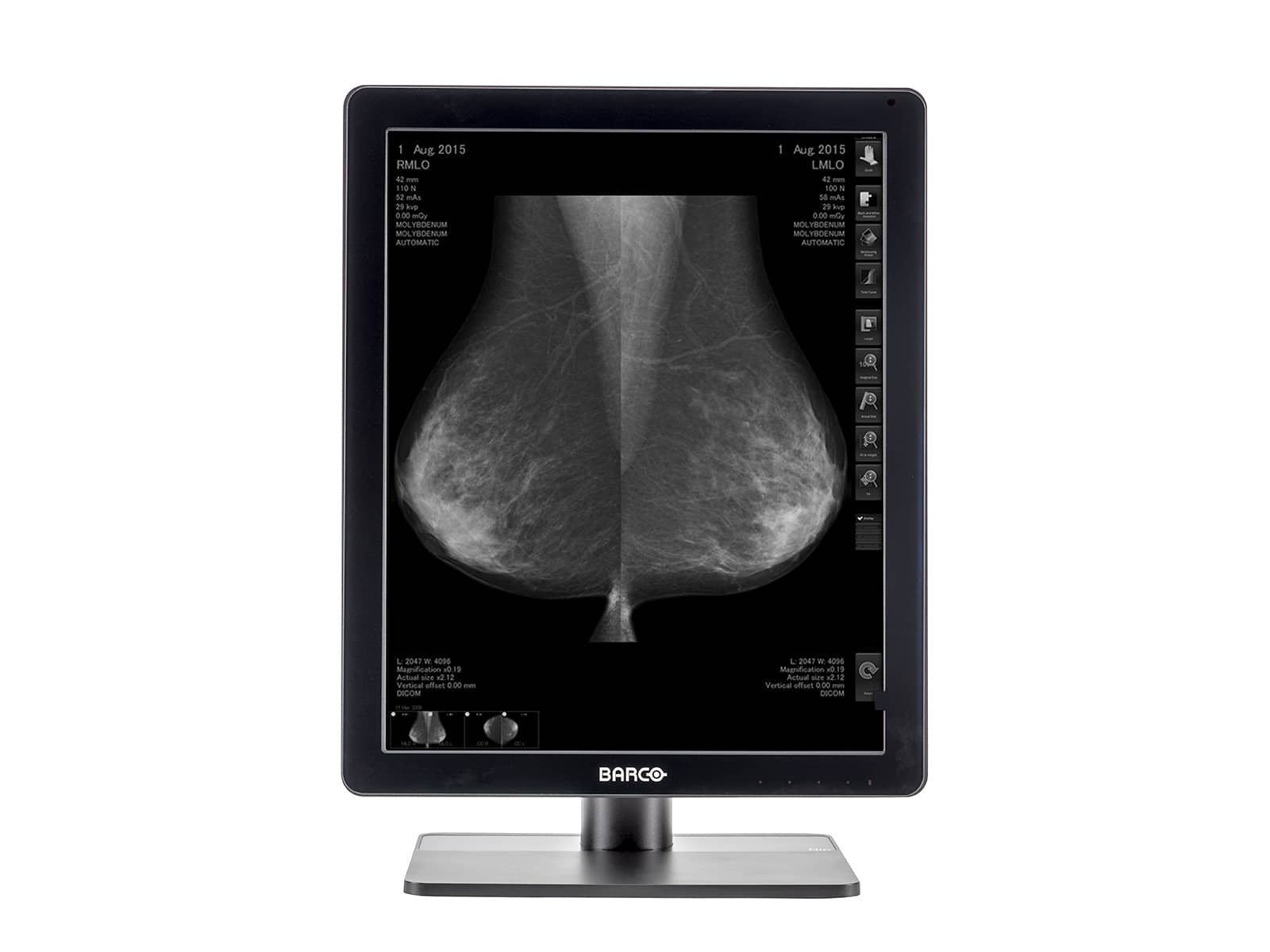

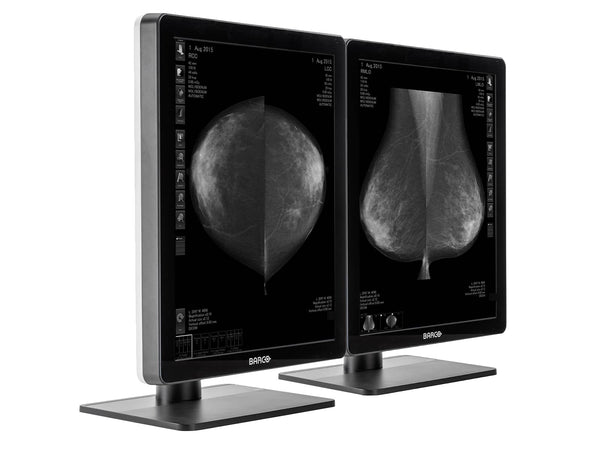

Experience more shades of gray with the Barco® Nio 5MP LED. It's FDA-cleared for radiology and mammography viewing and features several unique imaging technologies for excellent image quality for confident diagnoses. Its high-bright LED backlights to help you see more shades of gray and more details in your reading. Uniform Luminance Technology ensures these subtle details become more noticeable more quickly, for reduced windowing and leveling time.

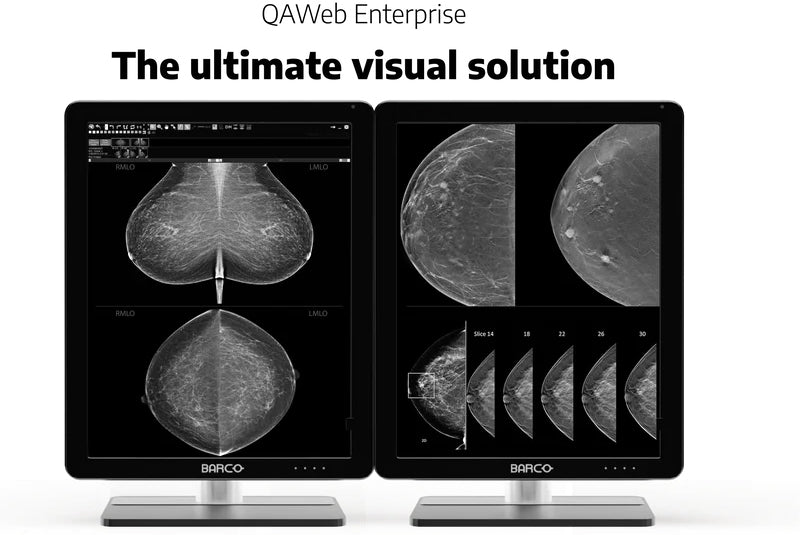

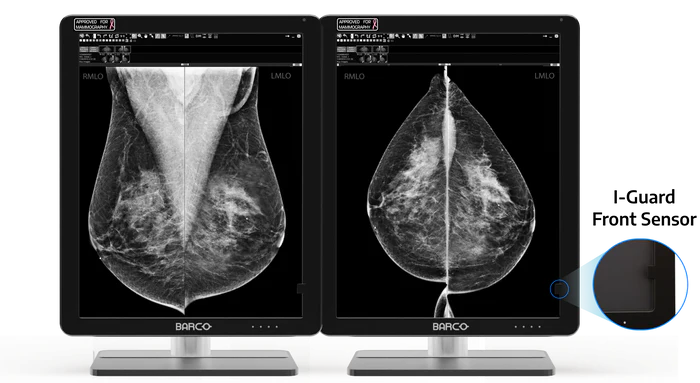

The difference is clear. This monitor's front-of-screen sensor ensures consistent and precise images over the life of the product. It works seamlessly with Barco®'s online MediCal QAWeb software for automated Quality Assurance and on-demand calibration, so you are viewing perfect DICOM images every time.
The Lowest Total Cost of Ownership
Nio 5MP LED is as low in power consumption as it is high in brightness. Because it uses less power, the display produces less heat and requires less cooling, which reduces ongoing maintenance and operational costs. Additionally, the LED backlights offer a long lifetime even at high brightness for a lower total cost of ownership and an excellent return on your investment.
|Resolution||5MP (2560 x 2048)|
|Pixel Pitch||0.165 x 0.165 mm|
|Aspect Ratio Hv||4:5|
|Calibrated Luminance||600 cd/m²|
|Max Luminance||1020 cd/m²|
|Calibration||Auto (built-in front sensor)|

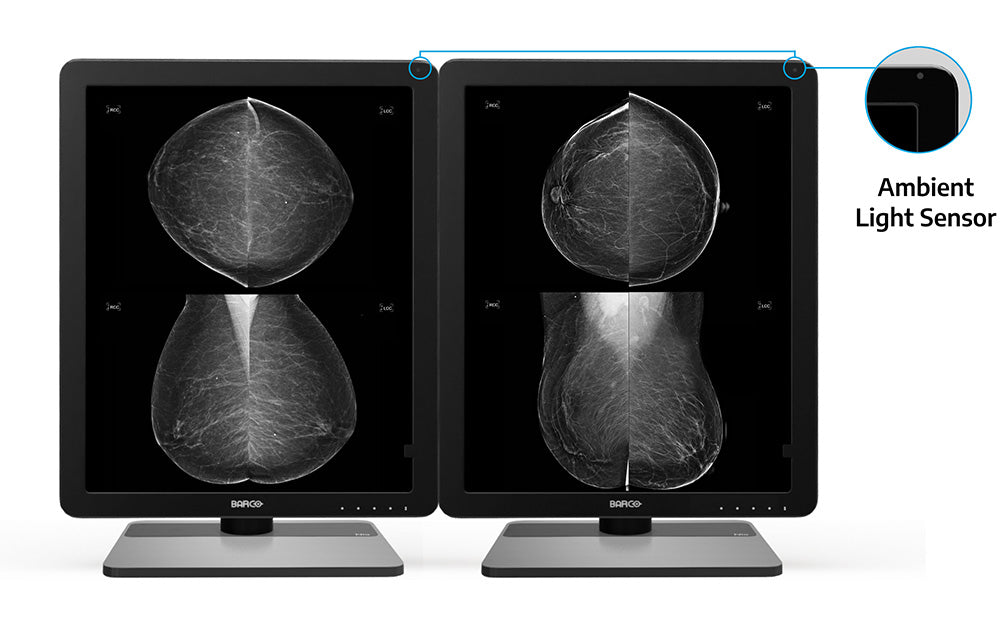

|Ambient Light Sensor||Yes|
|Screen Technology||Dual domain IPS, Normally Black|
|Active Screen Size (DIAGONAL)||541 mm (21.3")|
|Active Screen Size (H x V)||459.8 x 375.3 mm (18.1 x 14.77")|
|Video Input Signals||DisplayPort|
|Recommended For||All digital images including mammography|
|Viewing Angle (H, V)||178°, 178°|

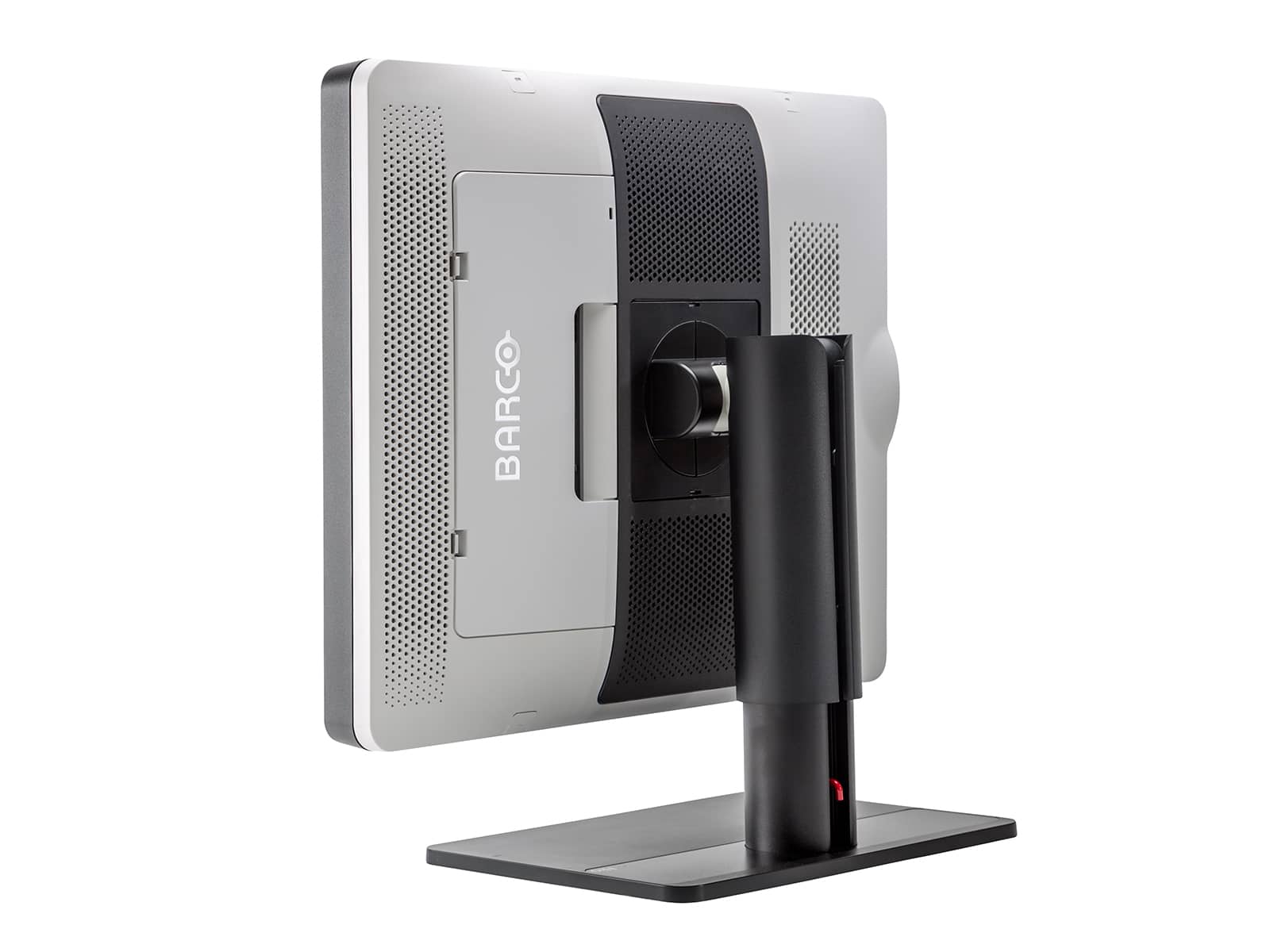

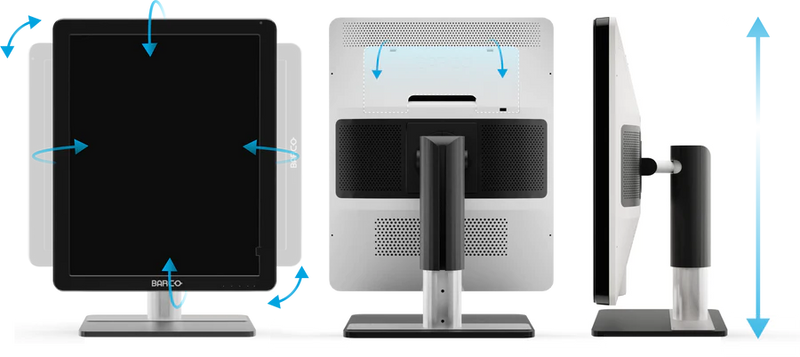

|Mount Type||VESA (100 mm)|

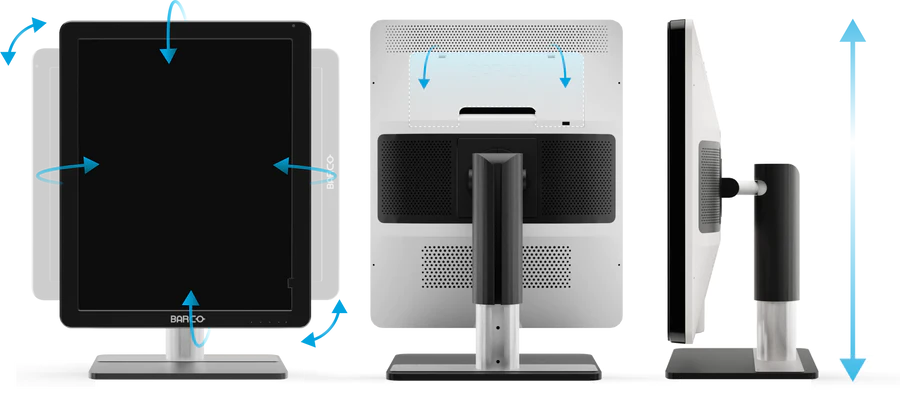

|Dimensions (W x H x D)||407 x 523~623 x 235 mm (16 x 20.6~24.5 x 9.25")|
|Power Consumption||43 W|
|Power Requirements||100–240 VAC, 1.5–0.6 A, 47-63 HZ|
|Weight||29.2 lbs (13.25 kg)|
