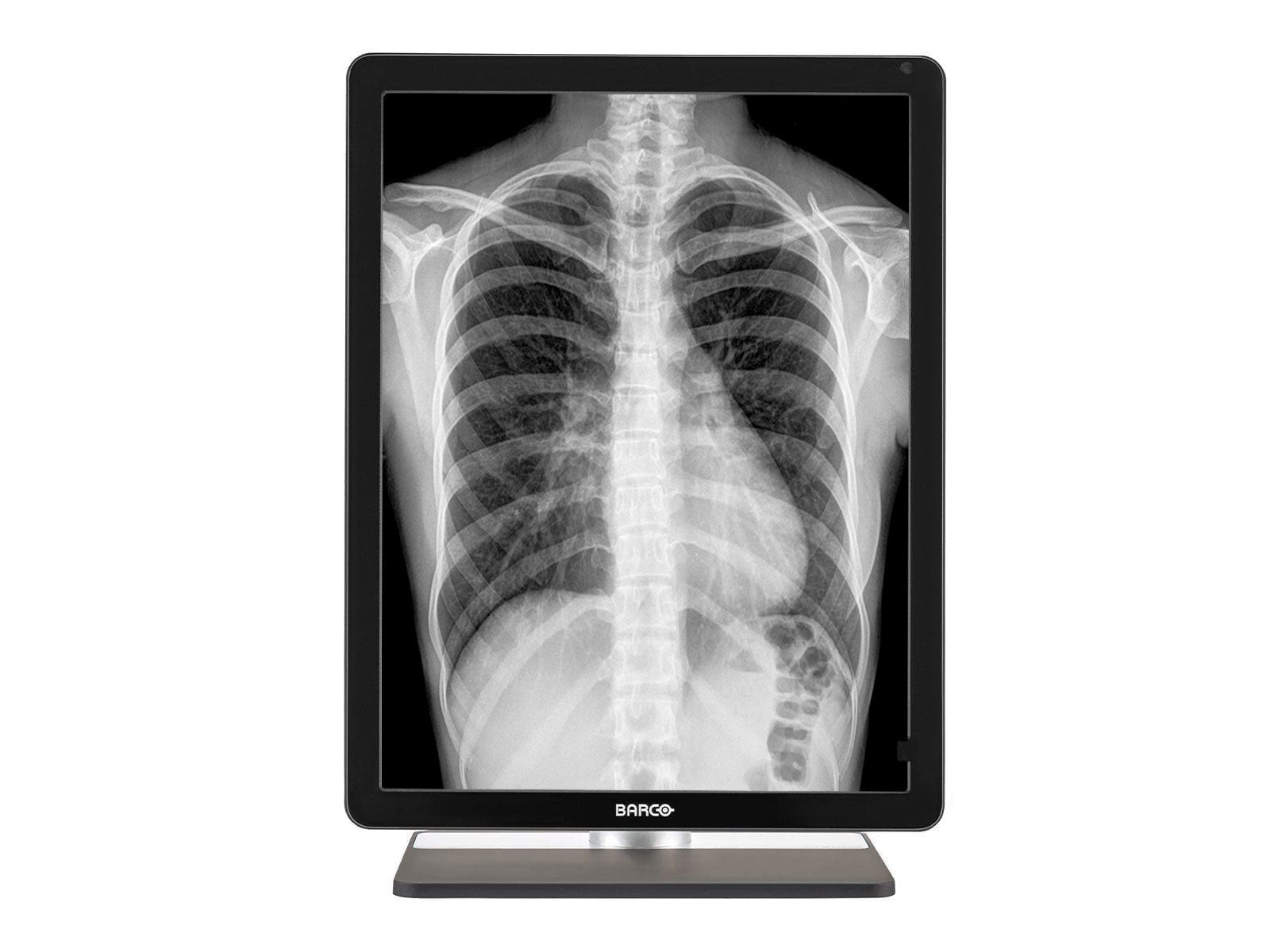

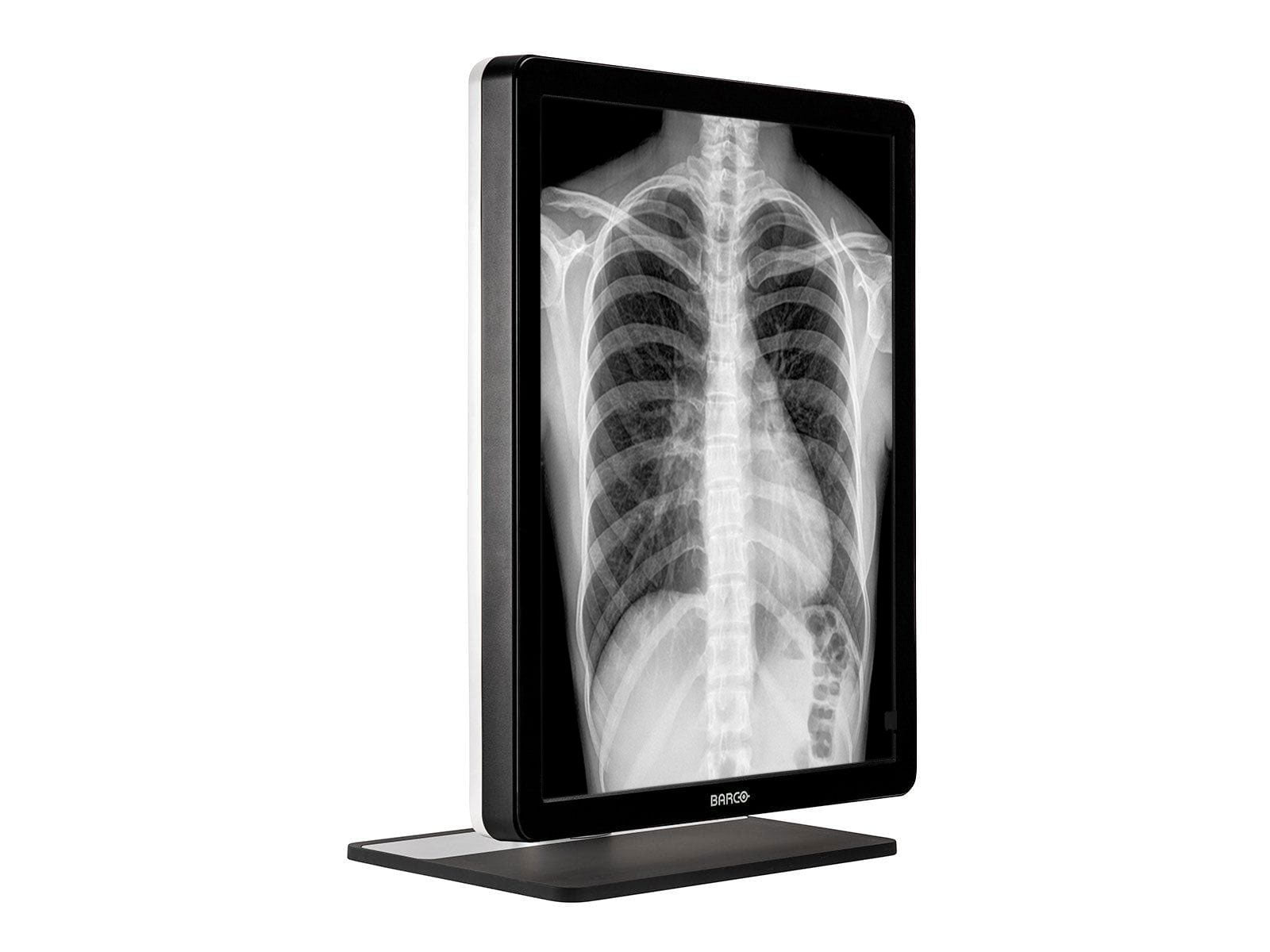

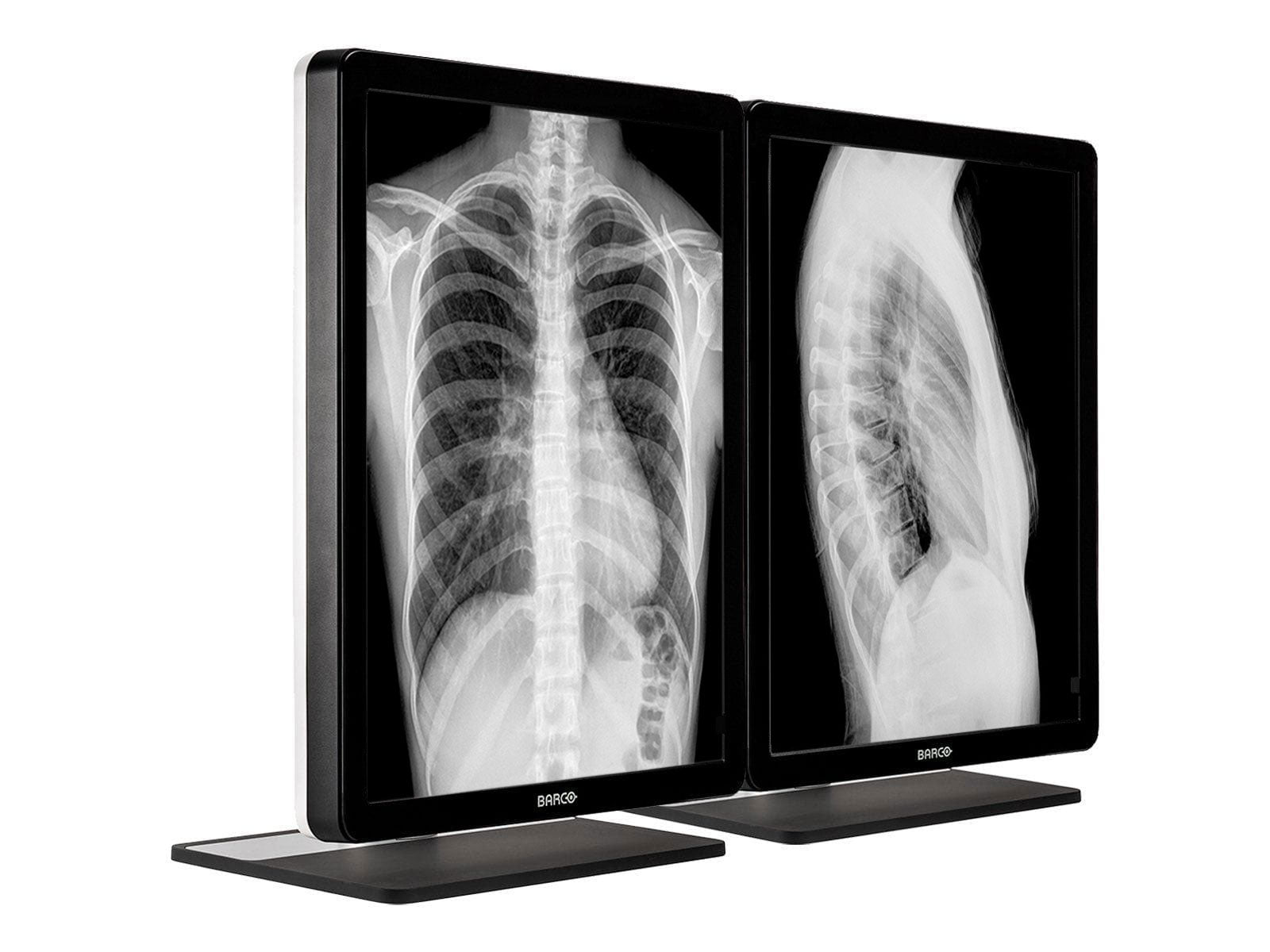

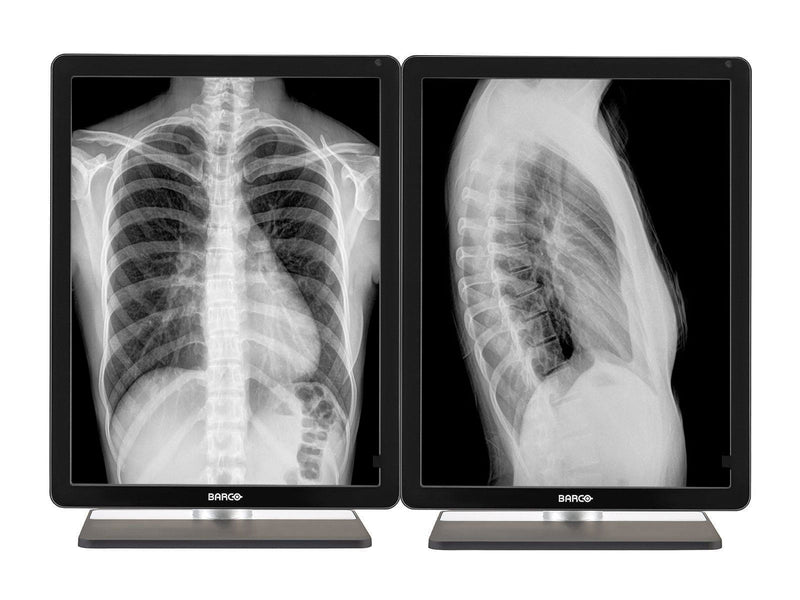

Introducing the industry-leading display system for grayscale radiology imaging. The Coronis 3MP LED provides optimum diagnostic precision and workflow efficiency for high-resolution PACS imaging, CT, MRI, chest radiology, angiography, and more.
More Authentic Grays
See more, more quickly. Barco®'s high-bright LED backlights render more Just Noticeable Differences to help you see subtle details. Coronis 3MP LED reduces windowing and leveling time so you can read your studies more efficiently and accurately.
Optimal Image Quality
Get consistently high quality with this display system. Barco®'s image-enhancing technologies designed for the unique characteristics of LED-backlit medical displays deliver perfect image quality time after time. Also, PPU-LED reduces panel noise and renders uniform DICOM images from center to corner. To optimize image quality and keep it consistent over the display's life, Barco® employs an Intelligent Multi-Sensor Technology system (I-MST) combined with a patented I-Guard front-of-screen sensor with backlight, ambient light, and temperature sensors.
Lower Total Cost of Ownership
Spend your equipment budget wisely. Using energy-efficient LED backlights, Barco® Coronis 3MP LED is low in power consumption as it is high in brightness. Barco®'s LED backlights are mercury-free, produce less heat, and last longer. You'll get a longer display life at a budget-friendly value.
Automatic DICOM Compliance
This monitor works for you. It's bundled with MediCal QAWeb for automated calibration and QA, providing continuous diagnostic quality and maximum uptime of your workstation. Medical QAWeb allows you to continue working while automated QA checks are being executed, minimizing downtime and maximizing productivity. The system also includes a secure online web service for remote, centralized image quality management.
|Resolution||3MP (2048 x 1536)|
|Pixel Pitch||0.2115 x 0.2115 mm|
|Aspect Ratio Hv||4:3|
|Calibrated Luminance||600 cd/m²|
|Max Luminance||1700 cd/m²|
|Calibration||Auto (built-in front sensor)|
|Ambient Light Sensor||Yes|
|Screen Technology||UA-SFT (ultra advanced - super fine technology)|
|Active Screen Size (DIAGONAL)||541 mm (21.3")|
|Active Screen Size (H x V)||325 x 433 mm (12.8” x 17.1”)|
|Video Input Signals||DisplayPort|
|Recommended For||All digital images, except digital mammography|
|Viewing Angle (H, V)||178°, 178°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||378 x 528 x 235 mm (14.9" x 20.8" x 9.25")|
|Power Consumption||40 W|
|Power Requirements||100-240 V|
|Weight||28.2 lbs (12.8 kg)|
