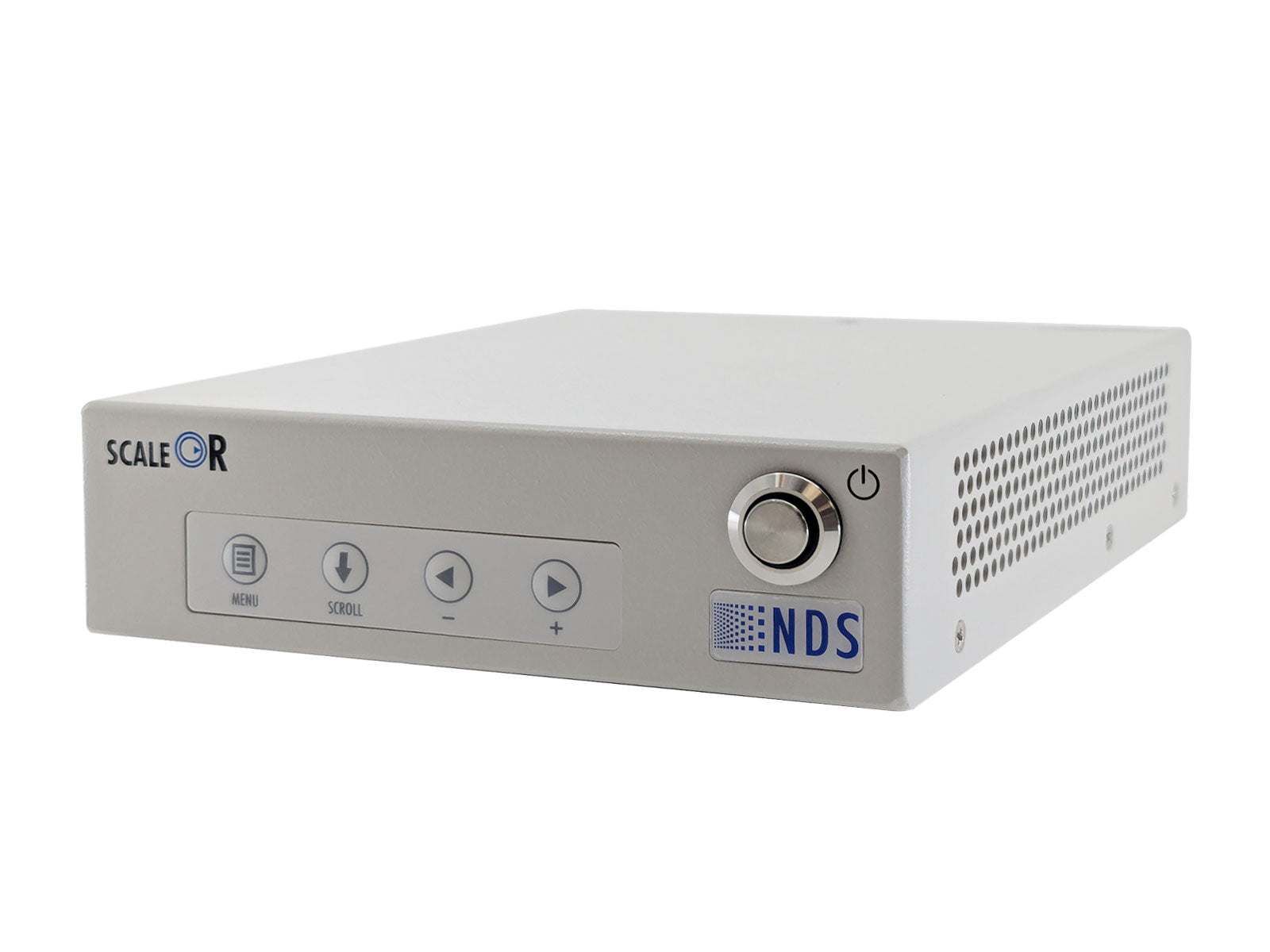

The NDS ScaleOR product is a medical-grade video scaling appliance used in healthcare environments. It allows the user to choose the appropriate input module per their needs to accommodate either analog or digital signal conversions and scaling.

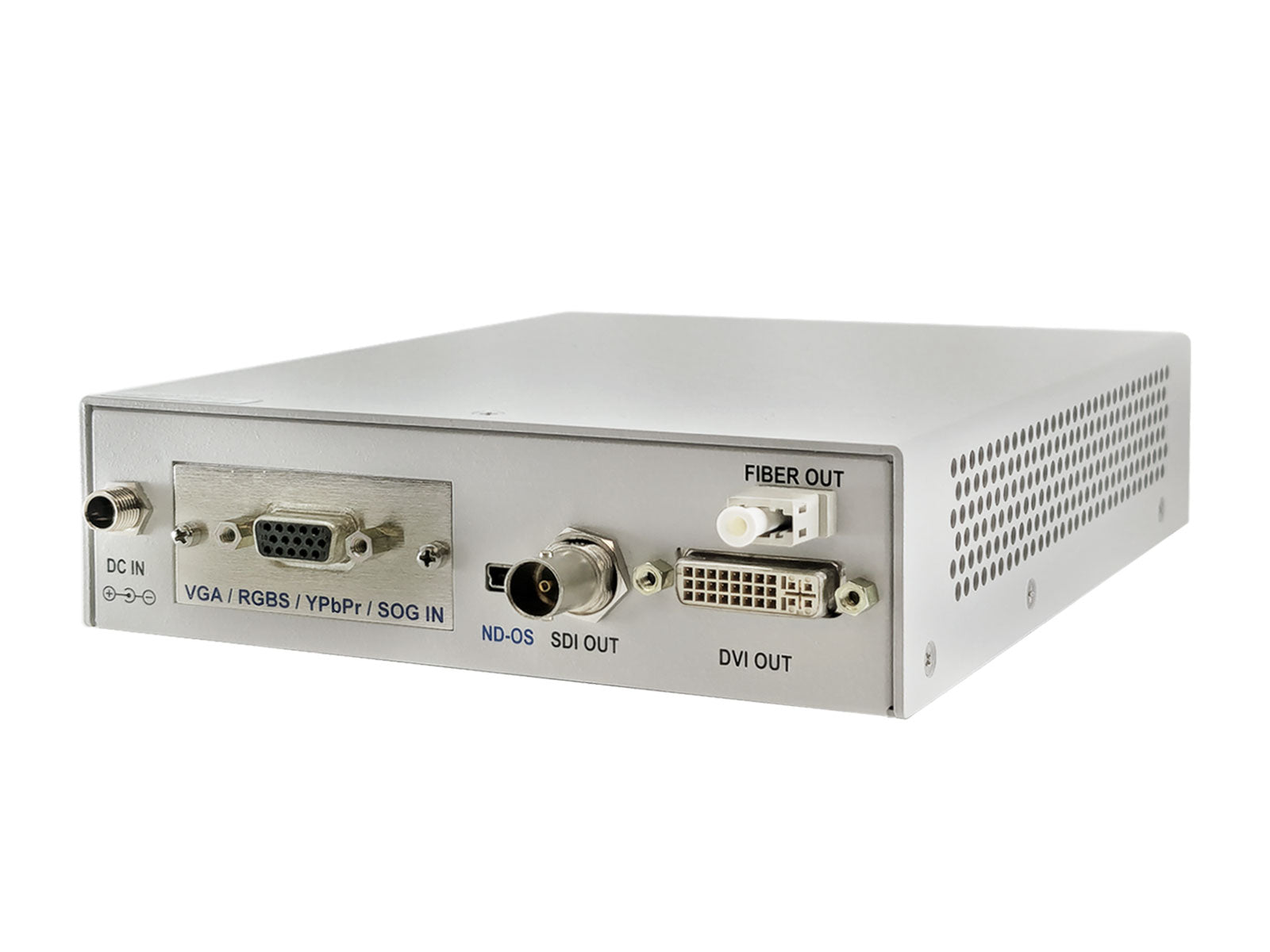

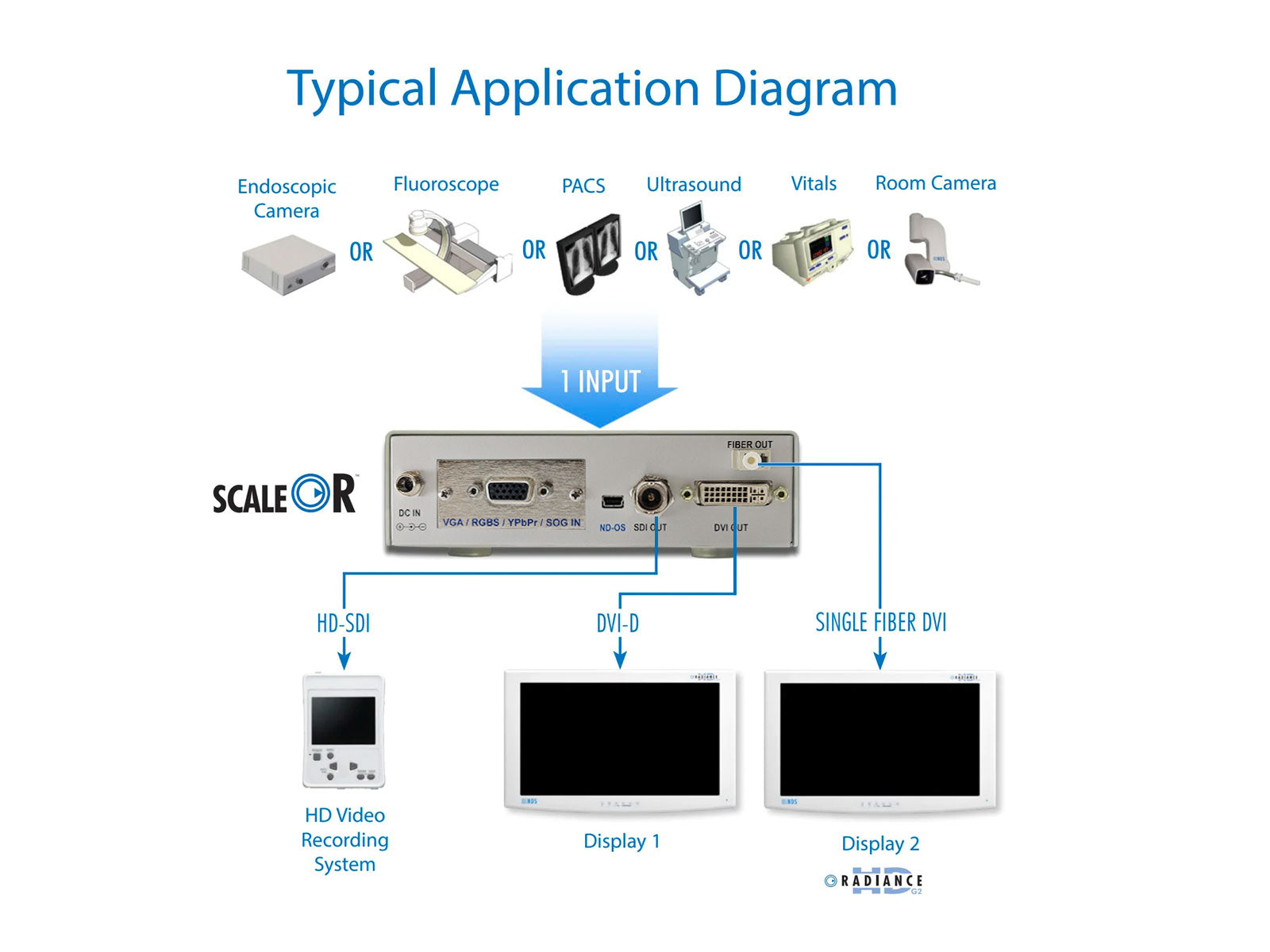

The input modules are DVI-D, 3G-SDI, VGA/RGB/SOG, and S-video/Composite. The NDS ScaleOR video input is scaled and converted to three simultaneous output formats: 3G-SDI, DVI-D, and DVI over a single fiber (optional). The scaled output format is selectable using a dip-switch setting or the on-screen-display menu (OSD). From the OSD menu, users can access advanced features such as RGB gain, brightness, contrast, hue, saturation, zoom, and scaling settings.
Features
Medical-Grade Video Converter/Scaler
Modular Design Supports Both Analog and Digital Video in HD or SD Formats
Multiple Simultaneous HD Video Output Formats
OSD Menu Functionality for Output Format and Other Advanced Features
Universal video format conversion
Manufacturer | NDS |
MFG. Part#. | ND-00B-014/0 |
