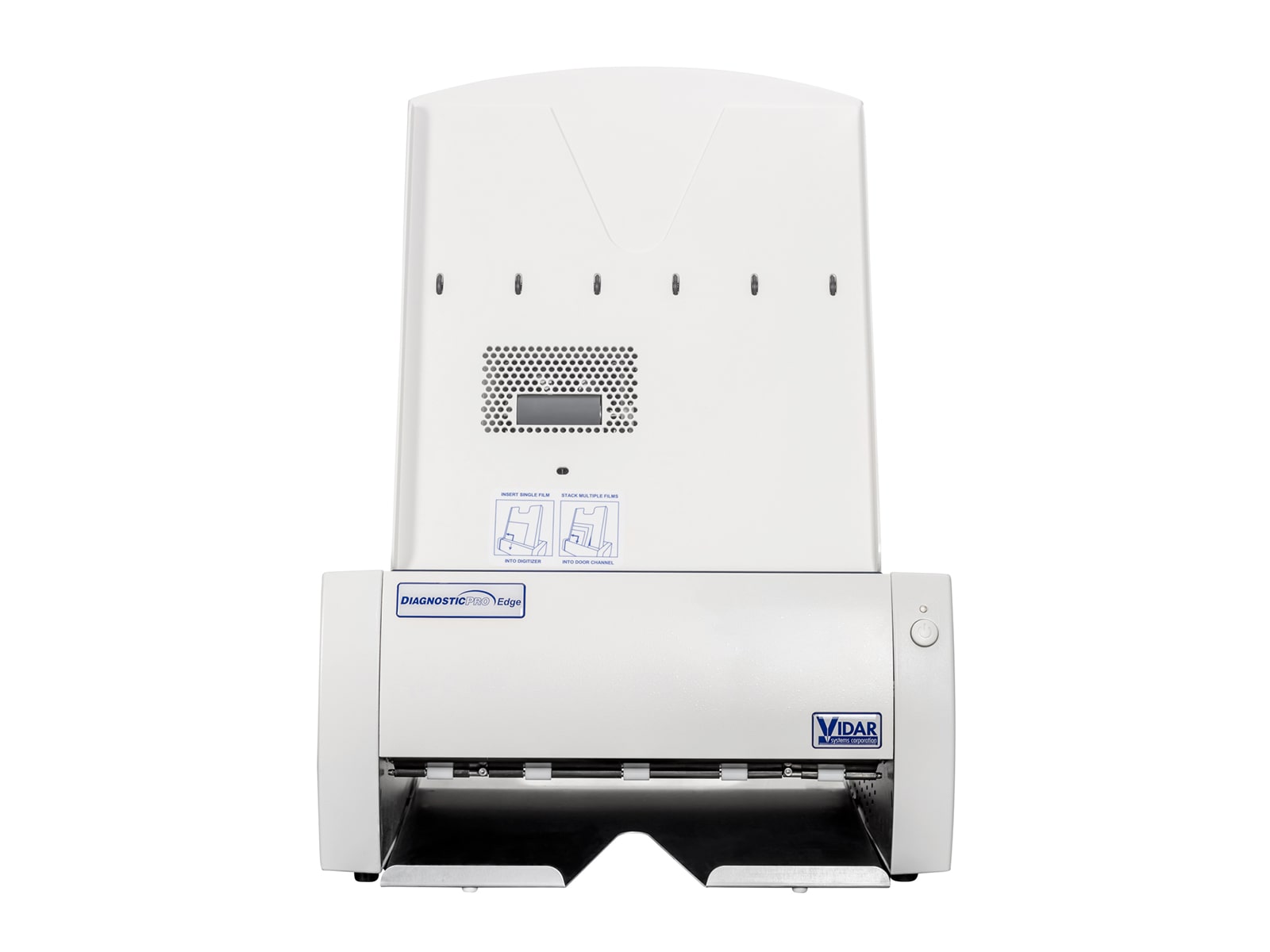

VIDAR's DiagnosticPRO® Edge film digitizer takes the highest reliability, image quality, and consistency of any digitizer on the market to the next level of performance. At double the scanning speed, it allows for more studies in half the time.
With its DUAL USE function, DiagnosticPRO Edge offers all-in-one flexibility in addition to PACS, it can be used in facilities that now or in the future will support the digitization of mammography priors. If you have a file room supporting PACS and low-volume mammography applications, the 44-micron spot size and 4.0 OD DiagnosticPRO Advantage will be key in the digital transition.
Customer Benefits:
-
Takes the industry standard in digitizing to a new level of performance
-
Doubles the scanning speed for more studies in half the time
-
All-in-one flexibility; Dual use mammography and general radiology
-
Delivers exceptional image quality and consistency
-
World-class reliability, service, and support
Docs & Drivers
Tech Specs
| Manufacturer | Vidar |
| MFG. Product Number | 19580-001 |
| Resolution | 44.5 microns |
| Scan Rate | 400 lines/second |
| Clinical Optical Density Range | 0.07 to 4.0 |
| MTBF | >50,000 hours |
| Film Sizes | Width: 7” to 14” (18 cm to 35.6 cm), 3 inch minimum manual feed Length: 8” to 17” (20 cm to 43 cm , 3 inch minimum manual feed Single film mode: min. length of 3” (7.6 cm), max. length of 51” (129.5 cm) can be accommodated in single film mode only. |
| Auto Film Feeder | Standard 25-film capacity (mixed sized – no presorting necessary) “Light Box” loading: head-up, normal reading, left justified |
| Geometric Accuracy | Better than 1% or 2 pixels, whichever is greater, in both axes |
| Hardware Interface | USB 2.0 |
| Recommended For | General radiographic, CT, MR, ultrasound, and nuclear medicine films |
| Weight | 25 lbs (11.3 kg) |
