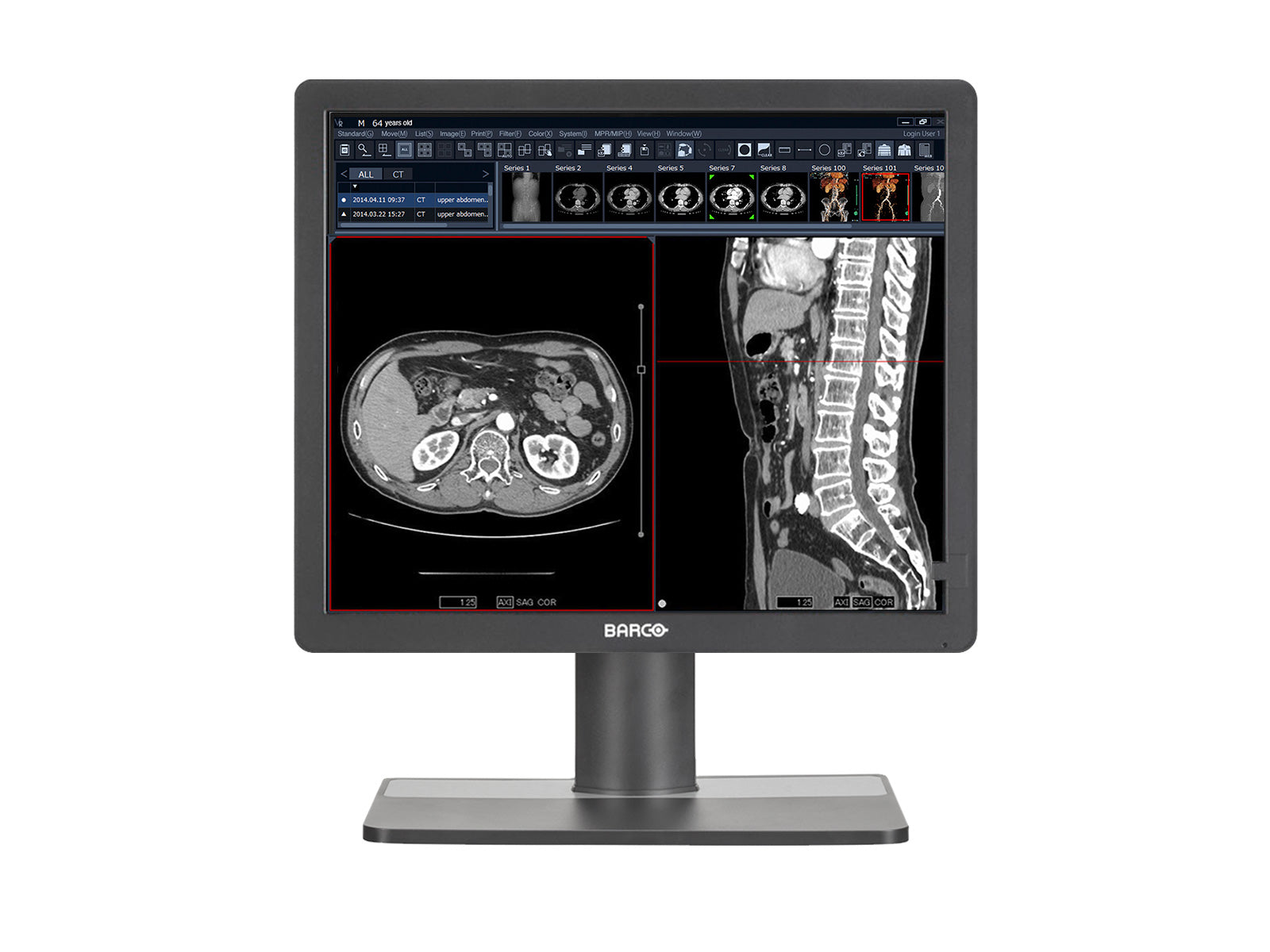

The Barco® MDRC-1219 is a color display that can be used in various clinical applications, including viewing electronic medical records containing patient data and medical images from all types of modalities. It's qualified for use in all areas of a healthcare facility.
Professional-Quality Color and Grayscale Imaging
The Barco® MDRC-1219 is noted for its sharp, bright picture with high contrast and consistency, which is owed to the proprietary front-of-screen consistency sensor that automatically aligns image quality across the screen every time the monitor is turned on, regardless of location or ambient lighting. Having guaranteed identical images makes cross-institutional collaboration easier between medical professionals at different sites. (This sensor also results in faster power-up and stability of brightness levels.)
With an 8-bit (DVI) or 10-bit (DisplayPort) look-up table, broad ranges of colors and grays can be shown on the 19-inch, 1MP screen, resulting in highly accurate images.
Additionally, the monitor boasts a unique aspect ratio of 5:4 and a wide viewing angle of 178°. For added user comfort, the monitor can also pivot and tilt.
Automated DICOM Compliance and QA
Integrated MediCal QAWeb® software automatically calibrates the Barco® MDRC-1219 to DICOM and continually conducts QA checks without any input or effort from you. This gives you peace of mind that you're always looking at a high-quality image and ensures its consistency across healthcare enterprises.
Longevity and low cost of ownership
Did you know that overheating is one of the most common culprits for damaging electronic components? With the Barco® MDRC-1219, you can enjoy a long display life and avoid the need to spend more on frequent maintenance and repair or early replacement. The MDRC-1219 uses mercury-free, energy-efficient LED backlights, which emit less heat, consume less power, and last longer.
Features at a Glance
Bright, sharp picture with high contrast
8- to 10-bit look-up table enables showing more shades of color and grays at a time
Front consistency sensor aligns image quality across the screen and across enterprises
MediCal QA software automates DICOM compliance and QA
Energy-efficient, mercury-free, low-heat LED backlights extend the life of the equipment
Docs & Drivers
|MFG. Product Number||K9301820A|
|Resolution||1MP (1280 x 1024)|
|Screen Technology||IPS TFT|
|Active Screen Size (H x V)||376 x 301 mm (14.81 x 11.85")|
|Ambient Light Sensor||Yes|
|Active Screen Size (DIAGONAL)||482 mm (19")|
|Pixel Pitch||0.294 x 0.294 mm|
|Viewing Angle (H, V)||178°, 178°|
|Calibration||Auto (built-in front sensor)|
|Calibrated Luminance||250 cd/m²|
|Max Luminance||700 cd/m²|
|Power Consumption||25 W|
|Video Input Signals||1 x DVI (DVI-D and DVI-A), 1 x DisplayPort|
|Weight||13.5 lbs (6.1 kg)|
|Recommended For||Reviewing of digital images|
