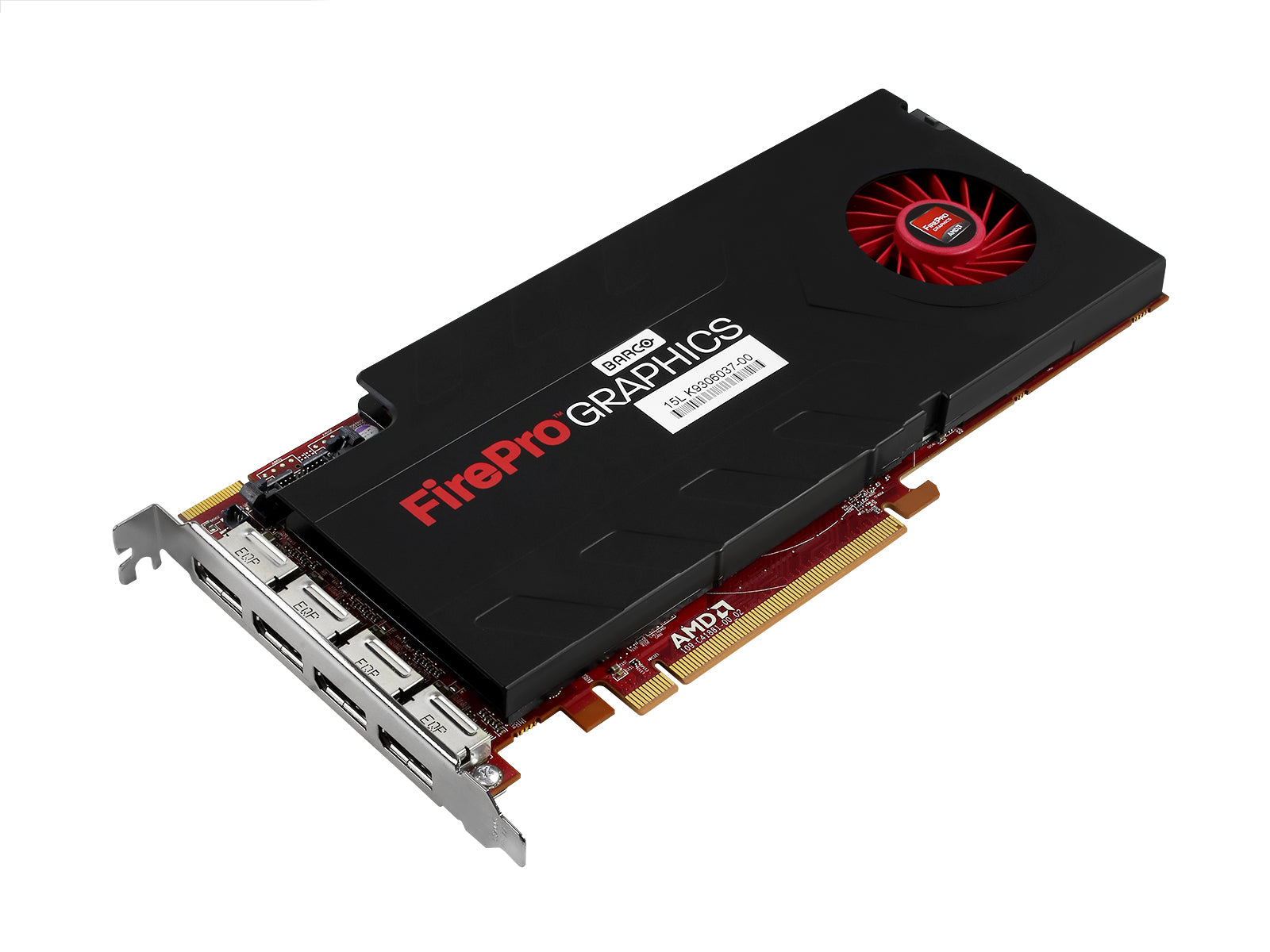

The MXRT-7500 is a state-of-the-art 3D PCIe display controller, including the most updated AMD FirePro® 3D technology for reliability, flexibility, and cutting-edge performance. With an ultra-fast GPU and 4GB of memory, the innovative MXRT-7500 brings an unrivaled processing power for large medical datasets. The MXRT-7500 graphic controllers support OpenCL, DirectX, and OpenGL and are compatible with Microsoft Windows® 10.
One board, four monitors
With the top-performance MXRT-7500 graphic card, one can drive four full resolution displays attached via DisplayPort. As such, the board is perfect for use in 4-head configurations. This all-in-one approach saves space on the PC; it makes the installation simpler and diminishes the total cost of ownership.
Ultra-fast data transfers
The MXRT-7500 graphic card uses PCIe Gen3 technology and is compatible with the DisplayPort 1.2 interface standard, guaranteeing ultra-fast loading of large datasets and medical images.
The MXRT graphic cards work perfectly with:
DimView® dims the auxiliary displays used for patient dictation or worklist automatically, diminishing peripheral ambient light.
Conference CloneView®: permits the precise projection of medical images onto a large-screen display. This software tool guarantees scaling, effortless cloning, zooming, and panning of medical images on the large screen.
FindCursor®: offers a method to locate the cursor quickly on a system with multiple displays.
SingleView®: This permits the complete display as one and removes any tearing down on the center of the display. This setting works behind the scenes to make use of current PACS software seamlessly and permits hanging protocols in the display center.
SpotView®: This permits focused observation during readings by boosting the luminance in a region you want to pay attention, while dimming the surrounding image area, thus enhancing the contrast in the region of interest.
4 GB GDDR5 display memory
Four display outputs
Display Port (DP) 1.2 video outputs
Single-wide form factor
Powered by AMD's scalable FireProTM workstation GPU
Windows® 10 compatible
|MFG. Product Number||K9306037|
|GPU Memory||4GB GDDR5|
|Memory Bandwidth||154 GB/s|
|Power Consumption||140 W|
|Output Ports||4 x Display Port (DP) 1.2|
|Weight||1 lb (0.5 kg)|
