The PHILIPS Medica Grade P240 series is a color active matrix, liquid crystal display exclusively designed for medical imaging applications.
Its high brightness and contrast make this product the ideal solution for multi-modality display in Operating Rooms. When used with Fiber Optic cables (not provided), it allows a simple installation as it provides the =5 VDC power supply required by Fiber Optic adapters directly integrated into its DVI connector.
High-quality 1920 x 1200 LCD panel for accurate color reproduction with a wide viewing angle and fast response time.
PC and video signal accepted, HD video on DVI.
Flexible configuration of multi-image modality: Picture-in-picture, split screen.

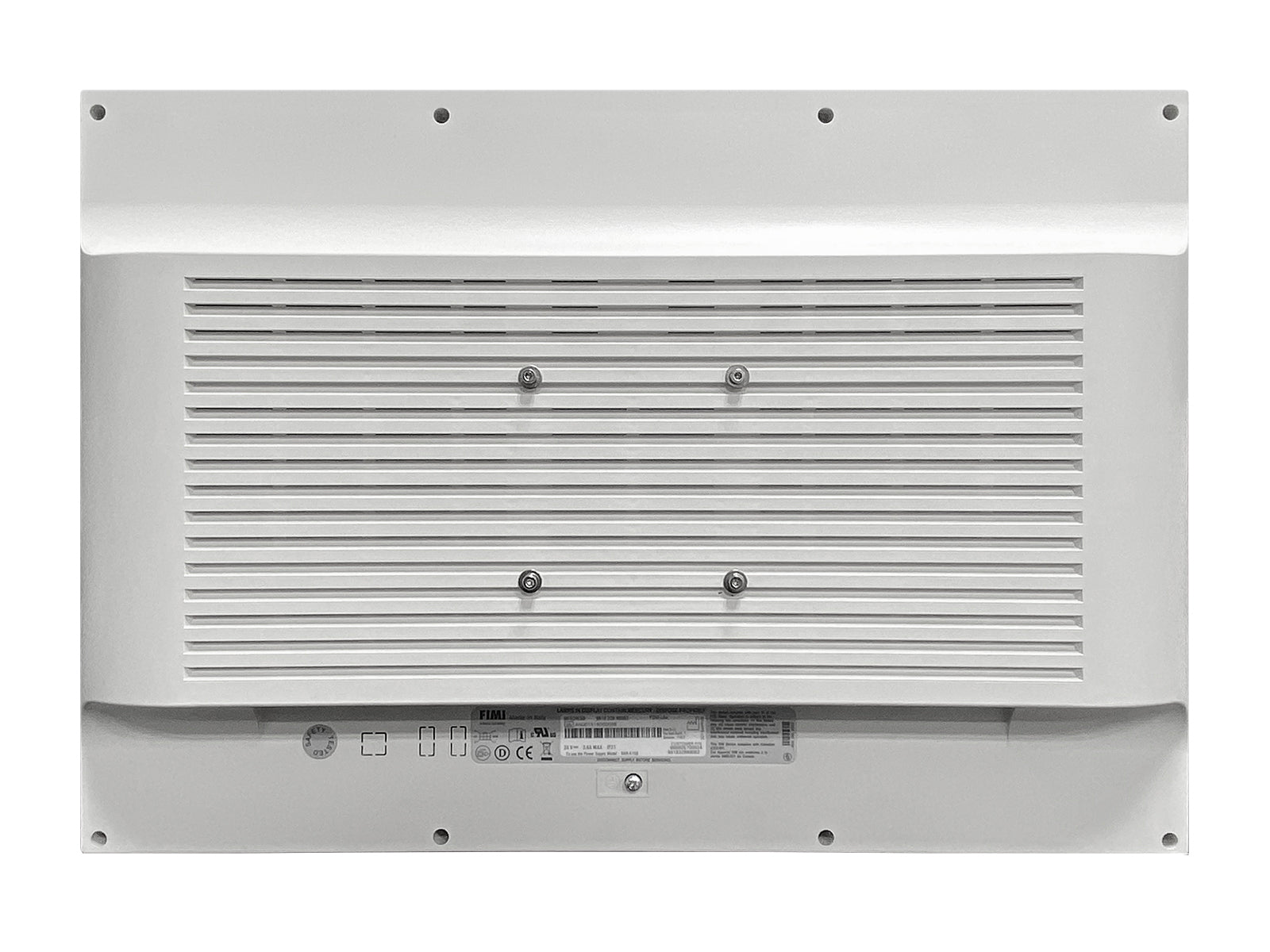

Lightweight and VESA 100 mounting standard for an easy installation.
Easy to use with all image parameters controlled through the OSD menus, including the DICOM curve.
Robust anti-reflective, anti-glare protection.
External power supply 24V DC.
Easy cleaning thanks to the completely closed and chemical-resistant front surface.
|MFG. Part#.||P240 LA-v|
|Resolution||2MP (1920 x 1200)|
|Pixel Pitch||0.270 x 0.270 mm|
|Aspect Ratio Hv||16:10|
|Calibrated Luminance||300 cd/m²|
|Max Luminance||400 cd/m²|
|Calibration||Manual (External Sensor)|
|Ambient Light Sensor||No|
|Screen Technology||TFT Color LCD|
|Active Screen Size (DIAGONAL)||609.6 mm (24")|
|Active Screen Size (H x V)||518 x 324 mm (20.3" x 12.7")|
|Video Input Signals||DVI|
|Recommended For||All digital images, except digital mammography|
|Viewing Angle (H, V)||85°, 85°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||583 x 403 x 105 mm (22.9" x 15.8" x 4.1")|
|Power Requirements||100-240 V|
