Save $3,000

Barco® Nio MDNG-5221 5MP 21" Grayscale LED 3D-DBT Mammography Breast Imaging PACS Display (K9300351B)


Choose Your Option: K9300351B-P-R
Setup:
Price:
$6,999.99 $9,999.99
FREE SHIPPING

Finance It. /mo for 12 months. View sample plans

- +
+ -
Request A Quote
  • 3-Year Premium Warranty ?
  • 3-Year Hot-Swap Coverage ?
  • 30-Day Return Guarantee
  • Free Technical Support

Experience more shades of gray with the Barco Nio 5MP LED. It's FDA-cleared for radiology and mammography viewing and features several unique imaging technologies for excellent image quality for confident diagnoses. Its high-bright LED backlights to help you see more shades of gray and more details in your reading. Uniform Luminance Technology ensures these subtle details become more noticeable more quickly, for reduced windowing and leveling time.


Image Perfection
The difference is clear. This monitor's front-of-screen sensor ensures consistent and precise images over the life of the product. It works seamlessly with Barco's online MediCal QAWeb software for automated Quality Assurance and on-demand calibration, so you are viewing perfect DICOM images every time.


The Lowest Total Cost of Ownership
Nio 5MP LED is as low in power consumption as it is high in brightness. Because it uses less power, the display produces less heat and requires less cooling, which reduces ongoing maintenance and operational costs. Additionally, the LED backlights offer a long lifetime even at high brightness for a lower total cost of ownership and an excellent return on your investment.

    Estimate shipping

    Barco® Nio MDNG-5221 5MP 21" Grayscale LED 3D-DBT Mammography Breast Imaging PACS Display (K9300351B)

    The Barco® MDNG 5221 is a 21.3-inch medical-grade diagnostic monitor that offers superb image quality and reliability. It is designed to meet the high demands of medical professionals, and it features a number of advanced technologies that make it ideal for a wide range of applications, including radiology, cardiology, and oncology. One of the key features of the Barco® MDNG 5221 is its high-resolution display. With a resolution of 5MP, the monitor provides exceptional image clarity and detail. This is essential for viewing medical images, which can often be complex and difficult to interpret. In addition to its high resolution, the Barco® MDNG 5221 also features a number of other technologies that enhance image quality. For example, the monitor uses a proprietary image processing engine that optimizes images for contrast, brightness, and sharpness. The monitor also features a wide color gamut, which allows it to display a wider range of colors than traditional monitors. This is important for medical applications where accurate color reproduction is critical. The Barco® MDNG 5221 is also designed to be reliable and durable. The monitor also has a long lifespan, with a mean time between failures (MTBF) of over 50,000 hours. Overall, the Barco® MDNG 5221 is a high-quality medical-grade diagnostic monitor that offers superb image quality, reliability, and durability. It is ideal for a wide range of medical applications, and it is sure to meet the high demands of medical professionals.


    Automatic DICOM Calibration & QA with Barco® I-Guard Technology

    The Barco® Coronis MDCG-5221 display leverages I-Guard technology, employing an integrated photometer for consistent image quality assessment and precise DICOM calibration. Integrated seamlessly with Barco®'s MediCal QAWeb service, I-Guard offers a comprehensive solution for quality assurance and streamlined calibration management. By meeting the unique needs of radiology, I-Guard becomes a key tool for healthcare professionals, bolstering diagnostic dependability and enhancing patient care quality.


    Uniform Luminance Technology

    The MDCG-5221, utilizing Barco®'s Uniform Luminance Technology (ULT), is designed to address challenges faced by radiologists. Traditional LCD displays can exhibit over 25% of screen area with uneven brightness, impairing image quality. ULT technology, however, mitigates such luminance and color inconsistencies, ensuring complete conformity with DICOM GSDF standards across the entire screen surface, thereby enhancing image accuracy and diagnostic reliability.


    3D Tomosynthesis

    The Barco® Coronis MDCG-5221 boasts advanced 3D tomosynthesis capabilities, delivering a more thorough and precise visualization of breast tissue. This cutting-edge technology enables radiologists to review a series of high-resolution images from different angles, creating a 3D reconstruction of the breast. Unlike traditional 2D mammography, which may sometimes conceal or distort tissue detail due to overlapping layers, 3D tomosynthesis eliminates these issues by dividing the breast into clear, distinct layers. This allows for more accurate detection and diagnosis of abnormalities, including small cancers that could be overlooked with 2D imaging. Paired with the high-resolution 5.8MP display and enhanced image quality of the Barco® Coronis MDCG-5221, the 3D tomosynthesis capability provides a superior viewing experience. It equips radiologists with heightened diagnostic confidence, fostering earlier and more precise detection of breast cancer, ultimately promoting improved patient outcomes.


    MDCG-5221 & MXRT: Peerless Diagnostic Accuracy

    Elevate your viewing experience by combining the Coronis MDCG-5221 with a Barco® MXRT graphics card. This potent duo offers exceptional image quality and performance, ensuring precise and efficient diagnostic capabilities for radiologists. The MXRT-5600, MXRT-6700, MXRT-7600, and MXRT-8700 graphics cards are specifically engineered to augment the abilities of the MDCG-5221, delivering seamless integration and the highest image quality in the medical imaging domain. Experience unmatched clarity and precision in your diagnostic process by opting for the Barco® MDCG-5221 and MXRT graphics card package.

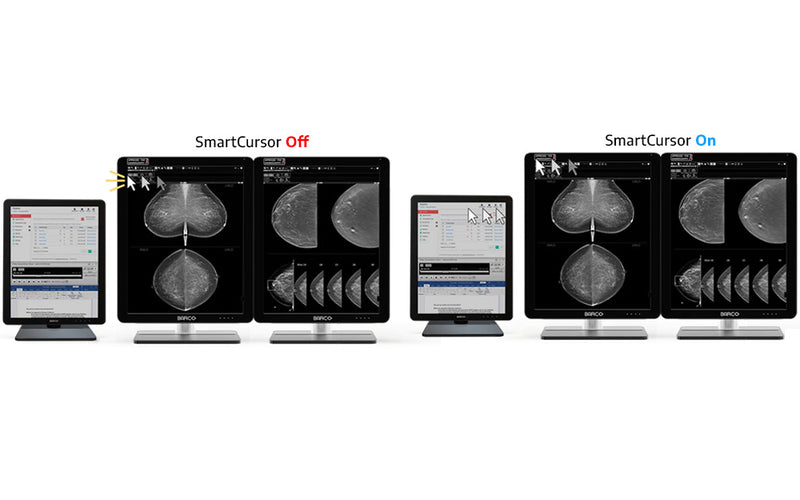

    SmartCursor: Effortless Cursor Movement Across Varied Displays

    Do you often encounter the annoying issue of cursor trapping at the borders of differently sized displays? Barco®'s SmartCursor™ is the ideal solution for this problem. This useful feature eliminates cursor sticking at the borders of adjacent displays with varying dimensions, ensuring smooth navigation. To activate SmartCursor™, go to the Barco® System Settings and select the SmartCursor™ option. With this feature enabled, enjoy uninterrupted cursor movement across all your radiology workstation displays, enhancing workflow and minimizing disruptions during critical diagnostic tasks.


    Enhanced Clarity for Radiologists with Anti-Reflective Glass

    The Barco® Coronis MDCG-5221 display features an anti-reflective coated protective glass, significantly enhancing radiologists' visual clarity and performance. This innovative glass technology curtails glare and reflections, empowering medical professionals to scrutinize images with exceptional sharpness and precision. By reducing visual distractions, the anti-reflective coated protective glass enables radiologists to focus on vital details, promoting more accurate diagnoses and improved patient outcomes. Experience unparalleled image clarity with the Barco® Coronis MDCG-5221 and its advanced anti-reflective protective glass.


    Barco® QAWeb Calibration & QA Software

    Like all Barco® medical display systems, the MDCG-5221 is equipped with the convenience of MediCal QAWeb, available as either a standalone local workstation installation or a cloud-based subscription technology. This service provides automated calibration and Quality Assurance, ensuring optimal display uptime without the need for manual intervention. With MediCal QAWeb, reliability and performance are seamlessly maintained, allowing medical professionals to concentrate on their crucial diagnostic tasks.


    MDCG-5221: Light & Modern Design

    The Barco® Coronis MDCG-5221 medical display monitor masterfully balances size, weight, functionality, and ease of use. Standing at 523mm (20.5 inches) tall, 407mm (16 inches) wide, and 235mm (9.2 inches) deep per monitor, it provides a generous viewing area for radiologists. With a weight of 13.25kg (29.2 lbs) with the stand and 8.25kg (18.1 lbs) without it per monitor, the Barco® Coronis MDCG-5221 demonstrates durability and robustness. Suitable for use in hospitals or home offices, the Barco® Coronis MDCG-5221 serves as an ideal breast imaging display for radiologists seeking the perfect mix of size, performance, and image quality.


    Enhanced Radiologist Visibility with Double Brightness on Barco® MDCG-5221

    Experience enhanced detail detection with I-Luminate, a feature that temporarily doubles the brightness of Barco® Coronis MDCG-5221 displays to over 1,200 nits for 30 seconds. This brief brightness surge aids radiologists in identifying minute details effortlessly. I-Luminate can be easily activated or deactivated with a single button or keyboard combination, streamlining your diagnostic workflow and ensuring meticulous image analysis.

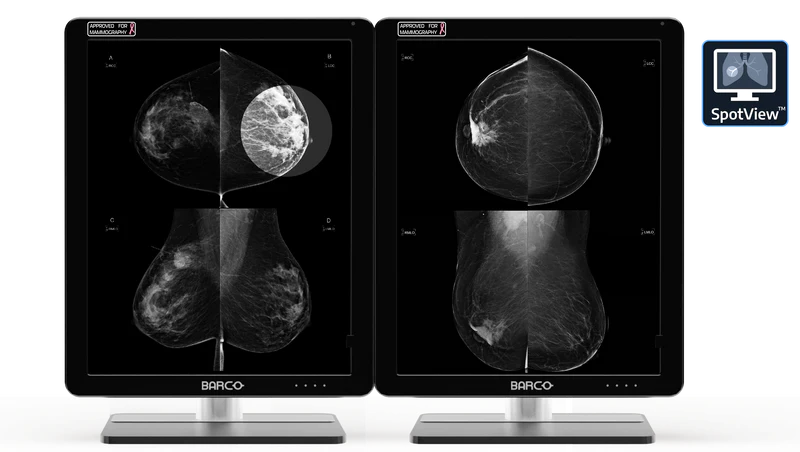

    SpotView™

    The SpotView feature on the MDCG-5221 temporarily enhances display brightness within a defined circular area, aiding in the scrutiny of complex details. It dynamically increases contrast and can magnify or invert pixels within the SpotView region if needed. This functionality provides an optimal viewing experience, making detection of subtle variations more accessible, thus fostering a higher level of diagnostic precision.


    Ambient Light Compensation (ALC)

    The SpotView feature on the MDCG-5221 temporarily enhances display brightness within a defined circular area, aiding in the scrutiny of complex details. It dynamically increases contrast and can magnify or invert pixels within the SpotView region if needed. This functionality provides an optimal viewing experience, making detection of subtle variations more accessible, thus fostering a higher level of diagnostic precision.


    Ergonomic Versatility with MDCG-5221's Adaptable Stand

    The Barco® Coronis MDCG-5221's stand is engineered for optimal usability, offering enhanced comfort and versatility. It supports tilt, swivel, and height adjustments, enabling personalized positioning of the display. Additionally, the stand comes with a connector compartment cover to conceal cables, ensuring a clean and organized workspace. Experience heightened comfort and user-friendly operation with the adaptable stand of the Barco® Coronis MDCG-5221.

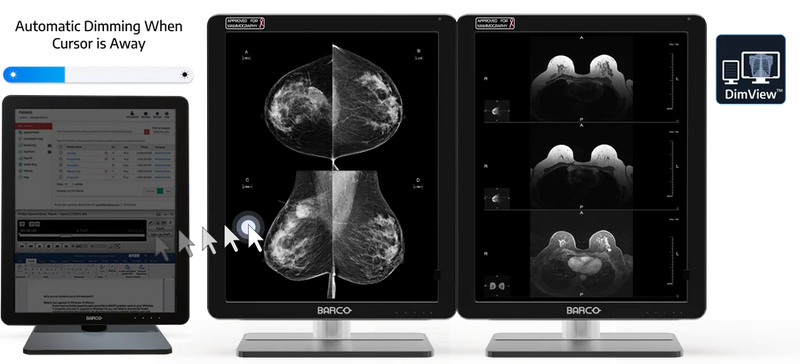

    DimView

    DimView intelligently dims secondary displays used for tasks like patient worklists or dictation, reducing peripheral light during readings and allowing your focus to remain on the diagnostic screen. You have the control to select which display(s) should automatically dim when the cursor isn't over them. Each display can be individually dimmed (DimView), or all additional displays can be dimmed in sync (DimView Link), providing a customizable experience tailored to your specific needs.


    Tech Specs

    Manufacturer Barco®
    MFG. Part#. K9300351B
    Screen Type Grayscale
    Resolution 5MP (2560 x 2048)
    Pixel Pitch 0.165 x 0.165 mm
    Contrast Ratio 1200:1
    Aspect Ratio Hv 4:5
    Calibrated Luminance 600 cd/m²
    Max Luminance 1020 cd/m²
    Calibration Auto (built-in front sensor)
    Backlight Sensor Yes
    Front Sensor Yes
    Ambient Light Sensor Yes
    Backlight LED
    Screen Technology Dual domain IPS, Normally Black
    Active Screen Size (DIAGONAL) 541 mm (21.3")
    Active Screen Size (H x V) 459.8 x 375.3 mm (18.1 x 14.77")
    Video Input Signals DisplayPort
    3D Tomosynthesis Yes
    Viewing Angle (H, V) 178°, 178°
    Mount Type VESA (100 mm)
    Dimensions (W x H x D) 407 x 523~623 x 235 mm (16 x 20.6~24.5 x 9.25")
    Power Consumption 43 W
    Power Requirements 100–240 VAC, 1.5–0.6 A, 47-63 HZ
    Weight 29.2 lbs (13.25 kg)
