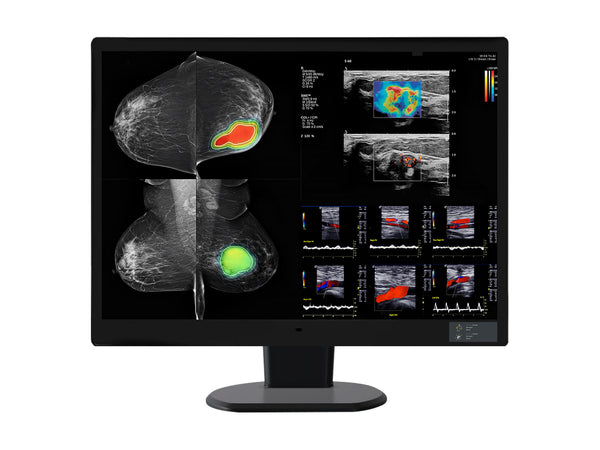

The WIDE CW120N Dual DP is a high-resolution 12MP medical imaging monitor meticulously designed for the precision and clarity required in radiology and mammography. The WIDE CW120N Dual DP 31-inch display offers robust performance, advanced calibration features, and exceptional image quality, making it an ideal choice for radiologists.
Self DICOM Calibration & Compliance
The WIDE CW120N Dual DP features self-DICOM calibration with a 14-bit LUT and built-in sensors, ensuring consistent image quality and compliance with medical imaging standards. This functionality guarantees that the monitor maintains accurate brightness and grayscale, essential for reliable diagnostic interpretations.
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N-_7_{width}x.jpg?v=1718826377)
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N-_18_{width}x.jpg?v=1719004253)
Embedded IQ Sensor®
The embedded IQ Sensor® in the WIDE CW120N Dual DP provides automated calibration to maintain optimal performance. This sensor continuously measures and adjusts the monitor's luminance, ensuring that the display remains consistent with DICOM standards without requiring manual intervention.
Key Advantages:
- Automated Calibration: The IQ Sensor® eliminates the need for frequent manual calibrations, saving time for radiologists and ensuring consistent image quality.
- Continuous Monitoring: By continually measuring luminance, the sensor ensures that the display adapts to any changes in brightness over time, maintaining accurate and reliable image reproduction.
- Adherence to DICOM Standards: The sensor guarantees that the WIDE CW120N Dual DP's performance aligns with DICOM standards, which is crucial for accurate diagnostic interpretations.
- Ease of Use: With the automated calibration process, radiologists can focus more on their diagnostic work rather than worrying about display settings, enhancing workflow efficiency.
- Enhanced Accuracy: The consistent luminance adjustment helps in detecting subtle differences in medical images, which is vital for precise diagnosis.
True 10-Bit Color
True 10-bit color depth in the WIDE CW120N Dual DP delivers over a billion colors, ensuring detailed and accurate image reproduction. This high color fidelity is critical for radiologists who require precise and nuanced images for accurate diagnoses. With true 10-bit color, the CW120N provides smoother gradations and more detailed shades, which are essential for detecting subtle differences in medical imaging. Additionally, the advanced full 10-bit image processing algorithms, combined with a 14-bit LUT, ensure that the images are rendered with the highest possible accuracy and consistency, making it an exceptional tool for diagnostic applications .
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N-_12_{width}x.jpg?v=1718900907)
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N-_13_e58a8f2b-d764-4c72-b79f-ef211a4f03a4_{width}x.jpg?v=1718980537)
Luminance Uniformity Control (LUC)
The Wide CW120N Dual DP features an on-board luminance correlation sensor, SBC (Self-Brightness Control), which continually monitors changes in backlight luminance and automatically adjusts to achieve optimal brightness.
Luminance Uniformity Control (LUC)
The CW120N Dual DP medical imaging display ensures highly accurate luminance uniformity across the entire screen. Achieving this uniformity can be challenging due to the construction of TFT LCD displays. However, the innovative Luminance Uniformity Control (LUC) function in the CW120N Dual DP effectively normalizes luminance from edge to edge, providing consistent and reliable performance.”
![](http://www.monitors.com/cdn/shop/files/Wide_LUC_{width}x.jpg?v=1720029185)
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N_5_{width}x.jpg?v=1718826437)
Human Detector
The Human Detector function periodically checks for the presence of a user in front of the WIDE CW120N Dual DP monitor using infrared sensors. If the user is not detected for a predefined period, the CW120N Dual DP automatically enters power-saving mode. This not only reduces energy consumption but also minimizes wear on the backlight, thereby extending the lifespan of the CW120N Dual DP. Additionally, the Human Detector enhances security by dimming or blanking the screen when the user steps away, ensuring sensitive information is not visible to unauthorized viewers.
Private Lite | Ambient Sensor
The WIDE CW120N Dual DP includes Private Lite and Ambient Lite features to enhance user comfort and productivity. Private Lite provides localized lighting to the user’s workspace, while Ambient Lite adjusts the screen brightness based on surrounding light conditions, ensuring consistent visibility and reducing eye strain. Additionally, the Wall Light feature ensures that the surrounding environment is well-lit without causing glare on the screen, further enhancing the viewing experience.
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N_6_{width}x.jpg?v=1718826462)
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N_1_{width}x.jpg?v=1718831384)
Separated UI Display
The WIDE CW120N Dual DP monitor features a separated 3.5-inch UI display with a resolution of 340×800. This secondary display provides easy access to monitor settings and status information without obstructing the primary diagnostic images, allowing for uninterrupted workflow.
Ports
The WIDE CW120N Dual DP is equipped with versatile connectivity options:
- Dual DisplayPort connectors for high-resolution input
- USB 3.0 compliance with one upstream and two downstream ports
- Service port for maintenance and updates
01. USB 3.0
02. USB 3.0
03. Service port for maintenance and updates (Connecting a USB
to the Service Port ③ may cause a serious damage.)
04. Upstream port
05. Display Port
06. Display Port
07. Power Connector
08. Work Light
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N-_15_{width}x.jpg?v=1719001571)
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N-_16_{width}x.jpg?v=1719003060)
Dimensions & Weight
Dimensions (Net): W: 689 mm (27") x H: 647 mm (25.4") x D: 237 mm (9.3")
Weight (Net): 20.0 Kg (44.09 lbs)
Enhanced Adjustability for Optimal Viewing
The ergonomic design includes height, tilt, and swivel adjustments, allowing users to position the monitor for maximum comfort and efficiency during long diagnostic sessions. The WIDE CW120N Dual DP's stand provides a height adjustment range of 0-110mm, tilt adjustment from -3° to 15°, and swivel adjustment from -20° to 20°. These adjustments ensure that the monitor can be tailored to individual user preferences, reducing physical strain and enhancing overall productivity in a clinical setting.
![](http://www.monitors.com/cdn/shop/files/WIDE_CW120N-_17_{width}x.jpg?v=1719003878)
