Rich, full-spectrum, and bright color presentation distinguishes the Barco® MDNC-3121. This characteristic makes the monitor ideal for several applications and imaging modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine, and PET.
Versatile, user-friendly design

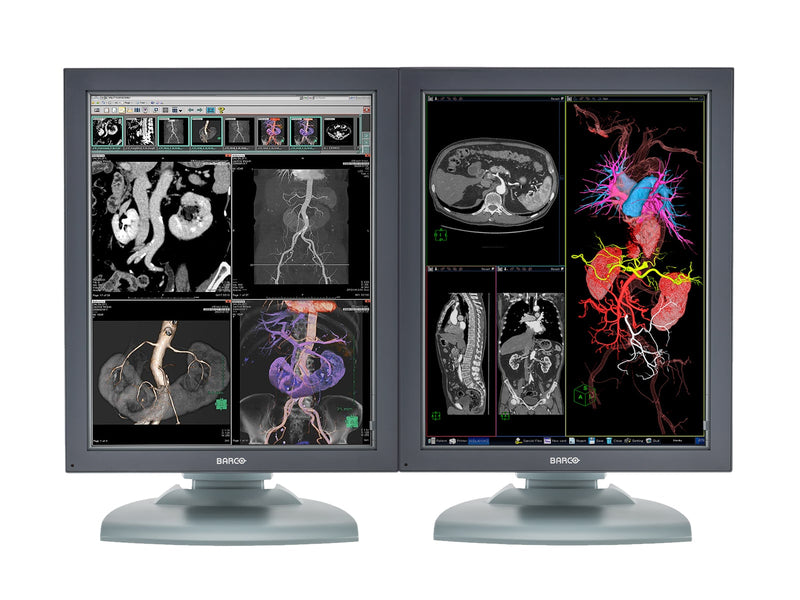

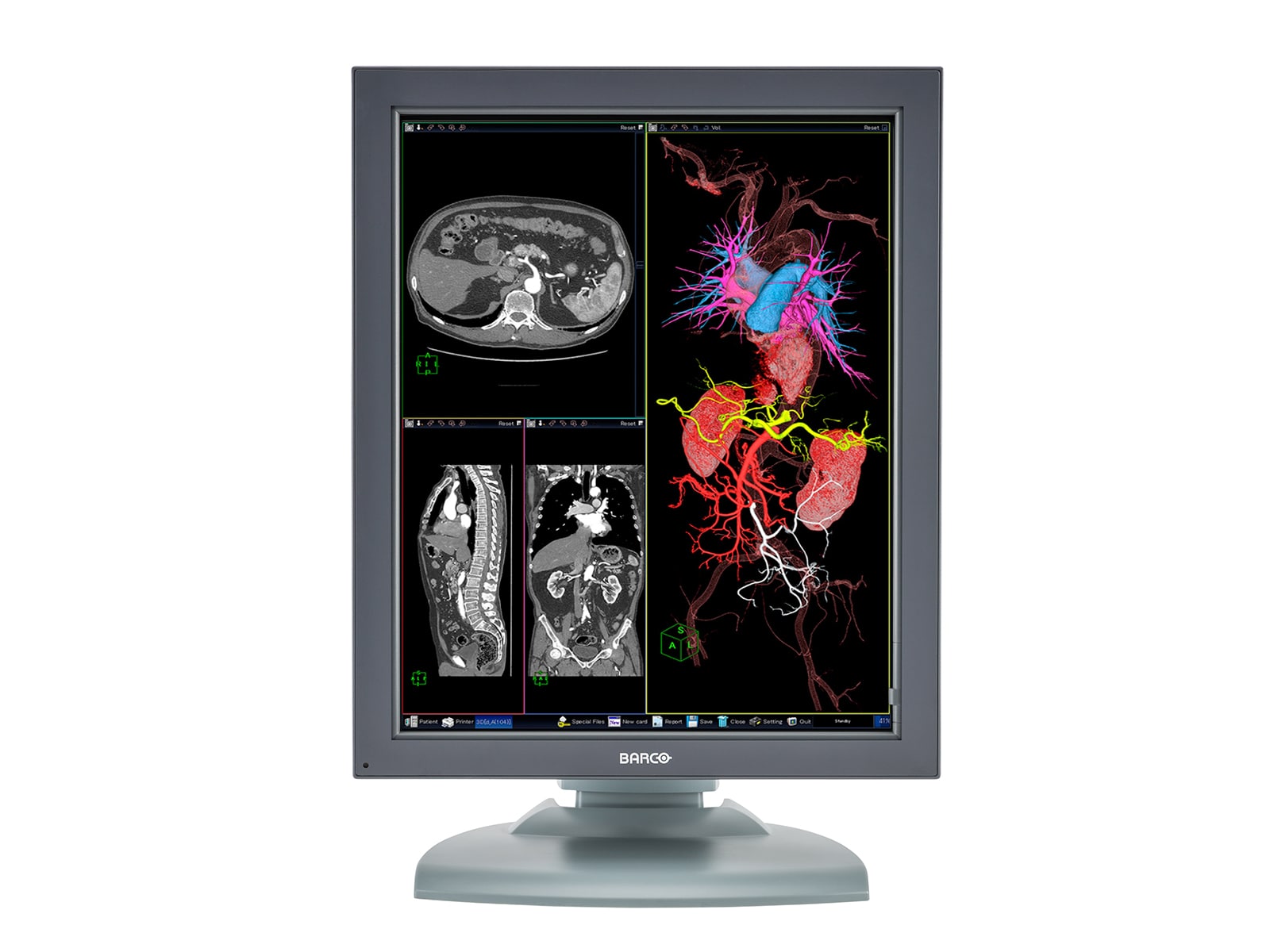

The MDNC-3121’s 3MP (2,048 x 1,536 pixels), 21-inch, LCD screen offers a large viewing area with a viewing angle of 176°. The Barco® MDNC-3121 is available in a single- or multi-head configuration, with an excellent color matching between displays, usable in portrait and landscape orientation.
Incredible color imaging with high-speed rendering
Enjoy a beautiful, detailed, and extremely accurate picture thanks to 30-bit color precision and high brightness and contrast levels. An anti-reflective front cover on the screen further improves image contrast.
Longevity without diminished performance
With any monitor, brightness dims over time. To compensate for this inevitability and maintain stable
levels of brightness that comply with DICOM, the Backlight Output Stabilization (BLOS®) sensor on the Barco® MDNC-3121 measures the output of the monitor’s lamps and then communicates with the monitor’s electrical panel to increase luminance as needed.
Automated DICOM calibration and QA
Using Barco® external PUC and QAWeb, MDNC-3121 can easily be calibrated and conformed to DICOM standards at any time.
With the proper adapter, the Barco® MDNC-3121 is compatible with any graphics card and both Windows and Mac. As a result, you won’t have to worry about the monitor’s compatibility with your workstation, laptop, or PC.
Features at a Glance
30-bit lookup table for more shades of the color displayed and a more accurate image
Outstanding brightness and contrast
BLOS sensor stabilizes light output over the long term in alignment with DICOM
MediCal QAWeb software automates calibration and QA.
|MFG. Product Number||K9603023|
|Resolution||3MP (2048 x 1536)|
|Screen Technology||TFT AM Color LCD IPS|
|Active Screen Size (DIAGONAL)||21.3'' (541 mm)|
|Pixel Pitch||0.2115 mm|
|Viewing Angle (H, V)||176°|
|Calibration||Manual (external USB sensor)|
|Calibrated Luminance||400 cd/m²|
|Max Luminance||800 cd/m²|
|Video Input Signals||DVI-D Dual Link|
|Weight||26.5 lbs (12 kg)|
|Recommended For||CT, MR, US, DR, CR, NM, Film|
