A 6-megapixel monitor is ideal for viewing a variety of medical images simultaneously, including CR, DR, CT, MRI, and ultrasound. Featuring a new design and unique EIZO technology, this monitor offers precise medical image viewing and ease of use.

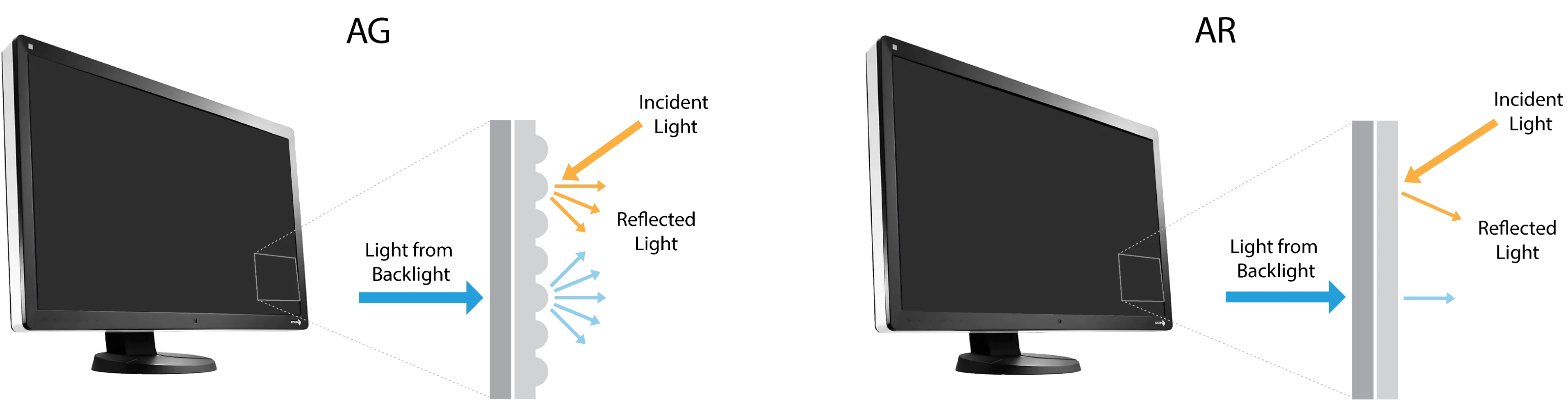

Anti-reflection (AR) coating greatly reduces reflections caused by outside light without affecting the light emitting from the monitor. This makes AR preferred over AG (anti-glare) treatments which cause blacks to appear washed out due to diffusion of the backlight. Monitors with AR coating display digital mammography, chest X-ray, and other high-resolution images with more clarity for accurate analysis.

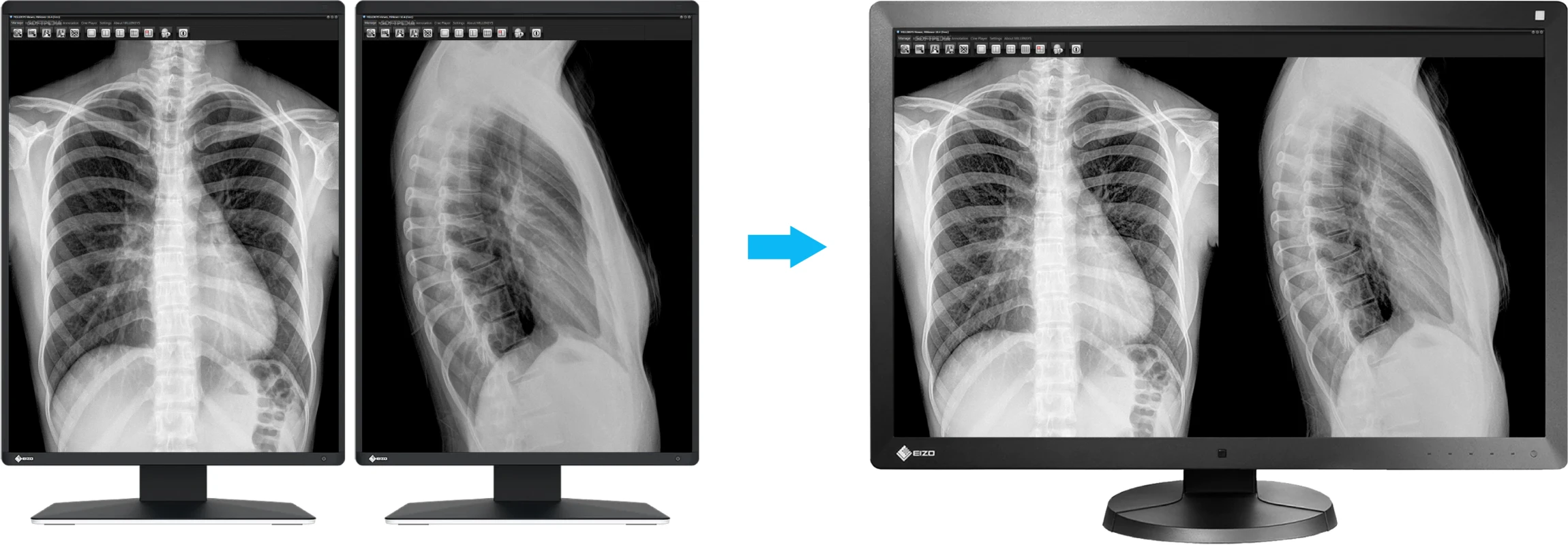

Effectively replace a dual 3-megapixel monitor setup with a 6-megapixel screen capable of displaying all necessary image applications at once to streamline the radiology workflow.

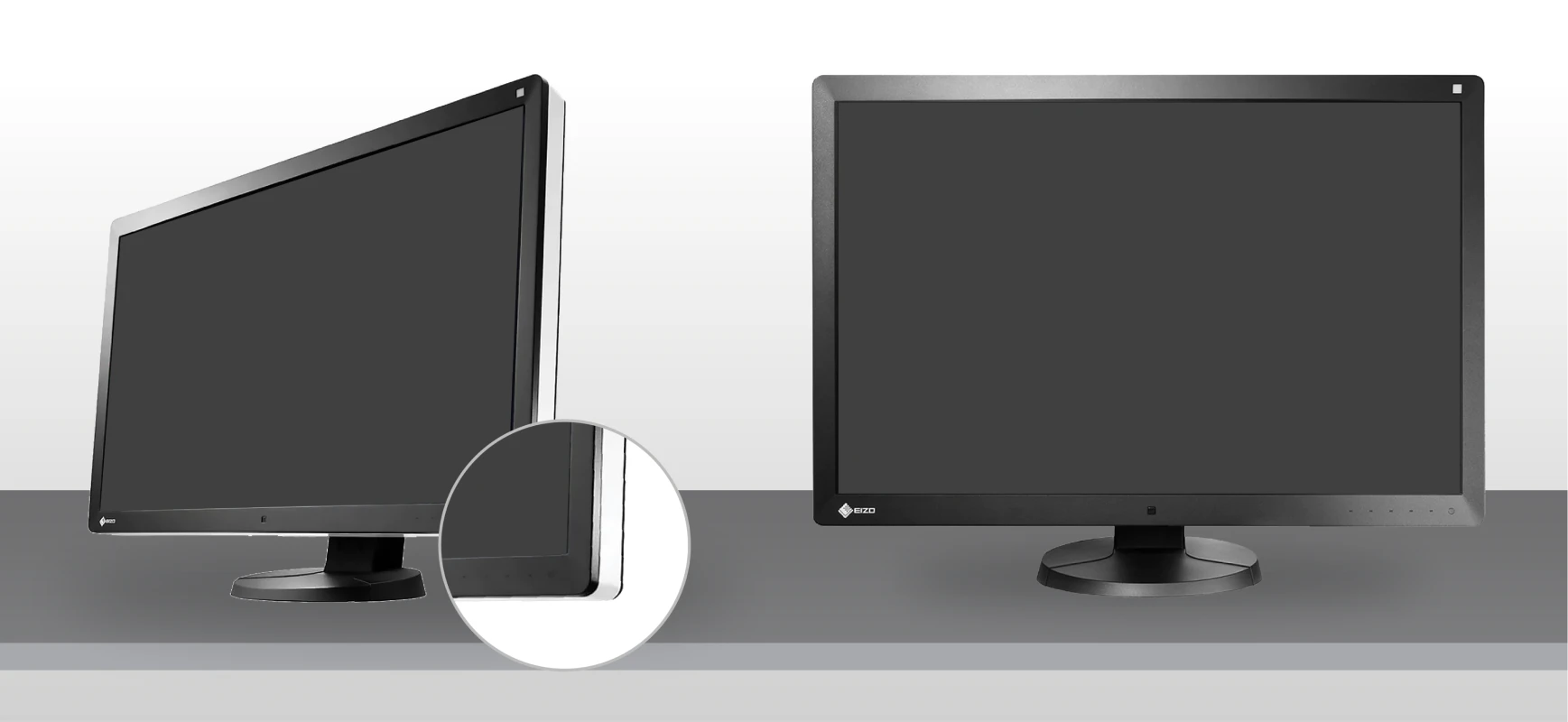

The new design saves more space than a typical dual-monitor setup to make the work area more efficient. In addition, the narrow space between the bezel and screen also makes cleaning easy.

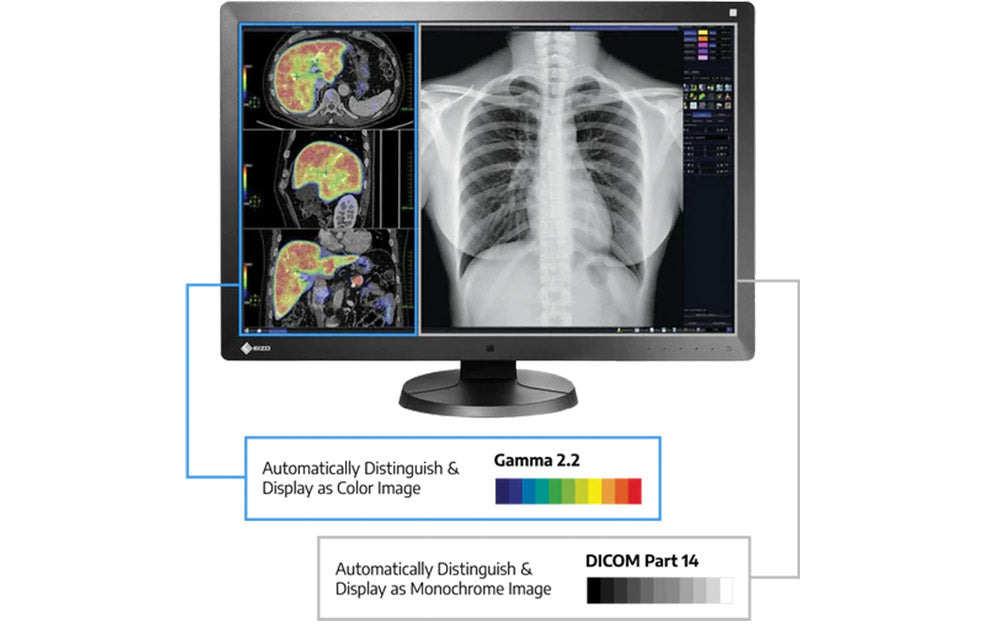

The Hybrid Gamma function distinguishes monochrome and color images, displaying each in optimal brightness and tone when viewed on the same screen. This expands the usability of multi-modality applications by allowing accurate review of color and monochrome mix images.
The LED backlight offers a significantly longer service life over conventional CCFL. In addition, you can maintain high-brightness while simultaneously lowering power consumption.
Two screens from separate input signals can be displayed simultaneously on one monitor. The widescreen enables simple and flexible operation without obtrusive bezels in between when viewing images side-by-side.
Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.
A built-in Integrated Front Sensor (IFS) measures brightness and grayscale tones to calibrate to DICOM Part 14. The IFS does not interfere with the viewing area while in use to cut workload and maintenance costs needed to monitor quality control.
Wide viewing angles allow you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.
The EIZO-patented drift correction function quickly stabilizes the monitor's brightness level upon startup or wakeup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness and automatically compensates for brightness fluctuations caused by ambient temperature and aging for a consistently stable display.
The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.
A presence sensor prompts the monitor to switch to power save mode when the user is away and resumes operation upon their return to conserve power when not in use, uniting convenience with savings.

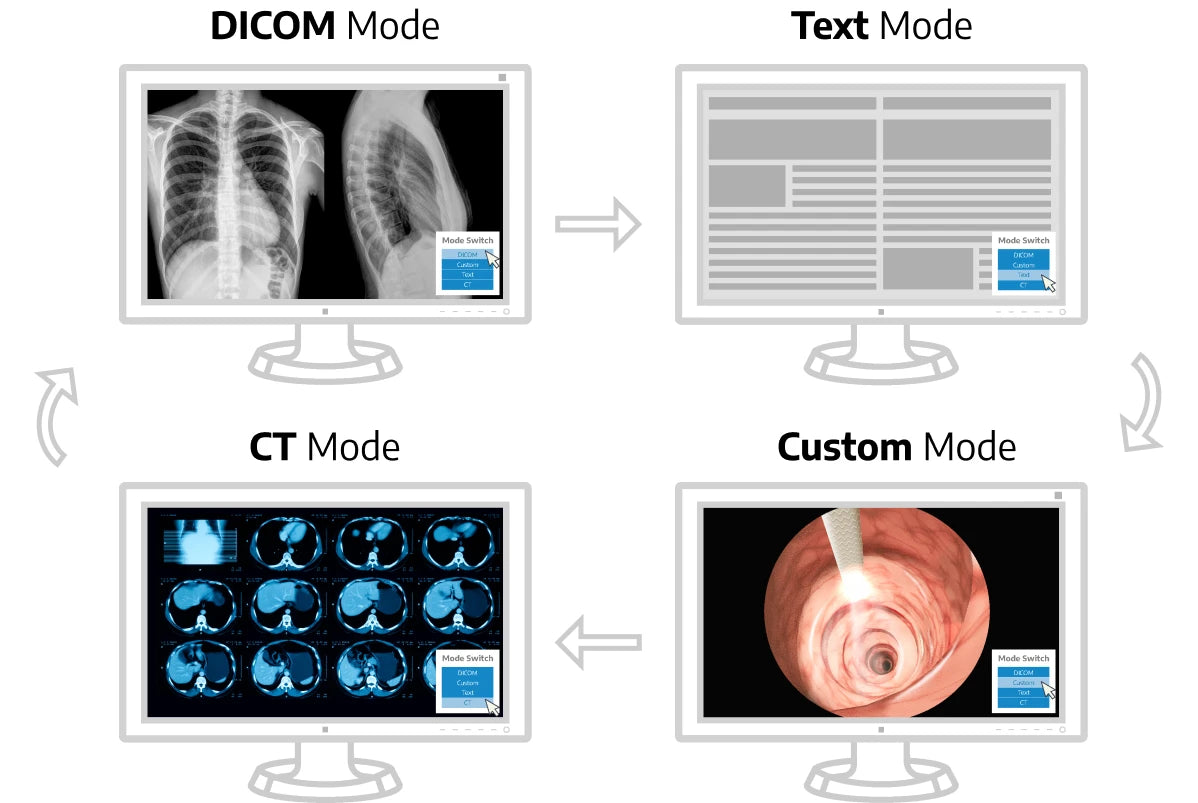

The CAL Switch function allows you to choose various calibration modes for different modalities such as CR, CT, and endoscopy. It can be conveniently accessed using the monitor's front panel buttons to easily switch to optimal image viewing conditions.
Use this text to share information about your brand with your customers.
Describe a product, share announcements, or welcome customers to your store.

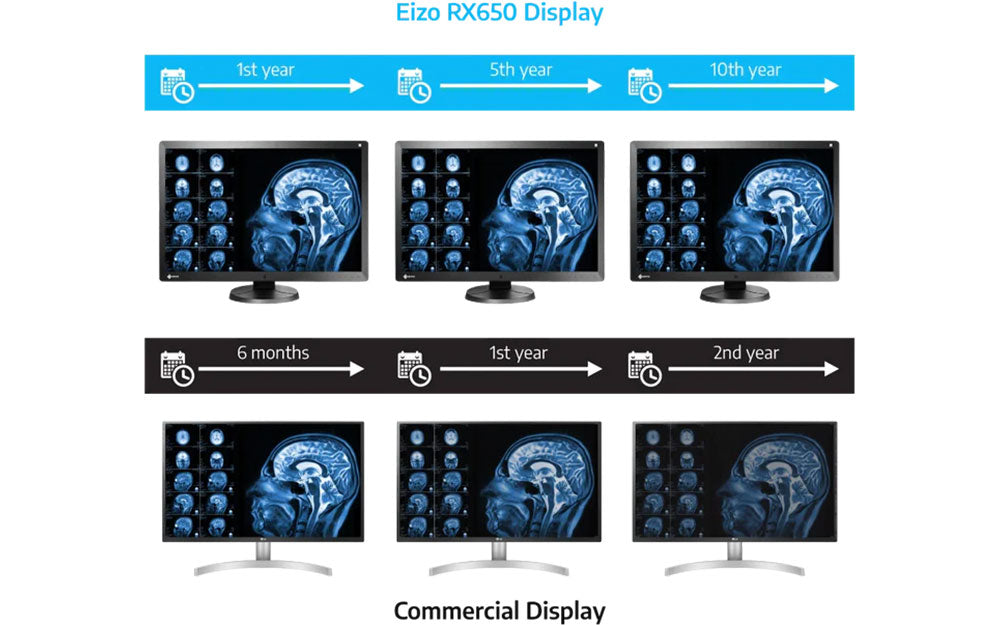

EIZO's confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
*Based on using monitors every day for an average job of 8 hours per day
|Resolution||6MP (3280 x 2048)|
|Pixel Pitch||0.197 x 0.197 mm|
|Aspect Ratio Hv||16:10|
|Calibrated Luminance||400 cd/m2|
|Max Luminance||1,000 cd/m²|
|Calibration||Auto (built-in front sensor)|
|Ambient Light Sensor||Yes|
|Screen Technology||Color TFT LCD Panel (IPS)|
|Active Screen Size (DIAGONAL)||760 mm (30'')|
|Active Screen Size (H x V)||645.5 x 403 mm (24.41 x 15.86")|
|Video Input Signals||DisplayPort|
|Recommended For||All digital images, except digital mammography|
|Viewing Angle (H, V)||178°, 178°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||692 x 486.5 x 281.5 mm (27.2" x 19.1" x 11")|
|Power Consumption||108 W|
|Power Requirements||AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz|
