Providing the Best Diagnostic Environment
Fully redesigned hardware and software bring innovation in multi-modality image reading.
Clearly Defined Diagnostic Images
The new i3 color series render more precise color and monochrome modality images. One of its unique technologies the built-in self-calibrating sensor ensures that the monitor constantly performs at its best.

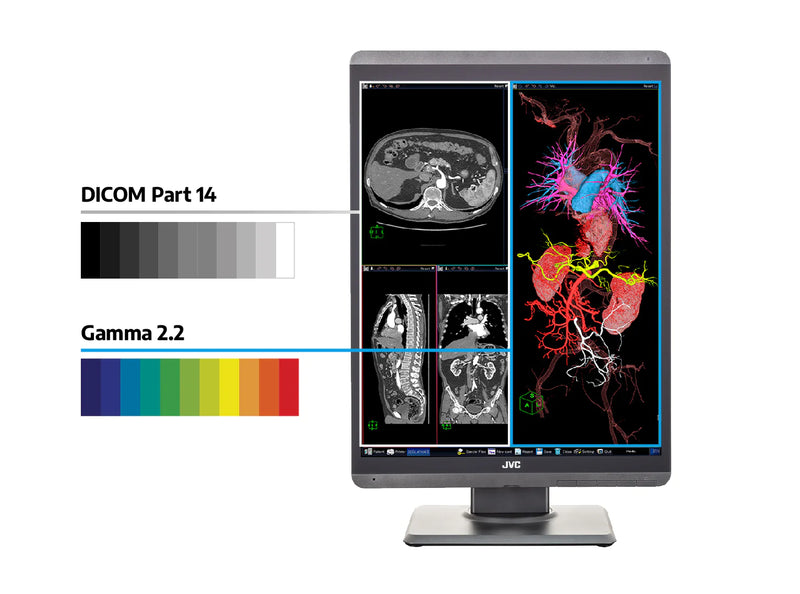

The JVC CL-S300 automatically recognizes color images to produce optimized contrast, brightness, and gamma, all without requiring user intervention.

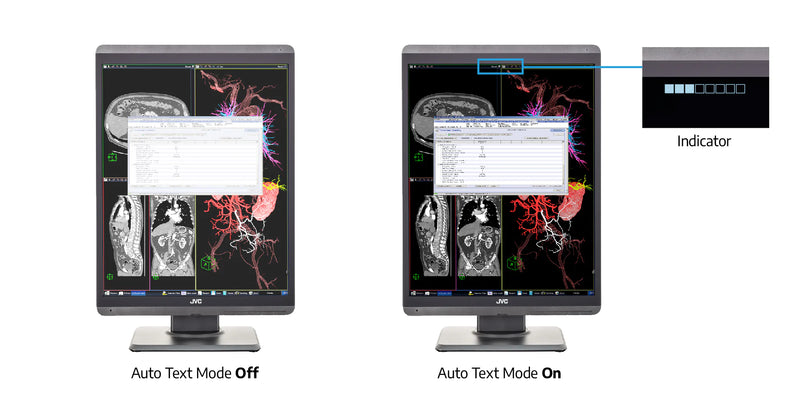

Auto Text Mode
To reduce eye strain, brightness is automatically adjusted when viewing patient lists and reporting applications when using auto text mode.
Integrated QA Solution

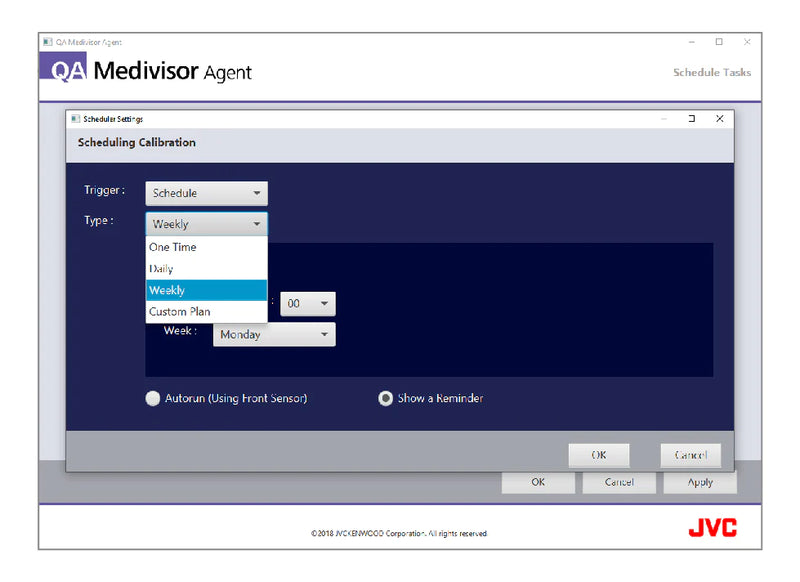

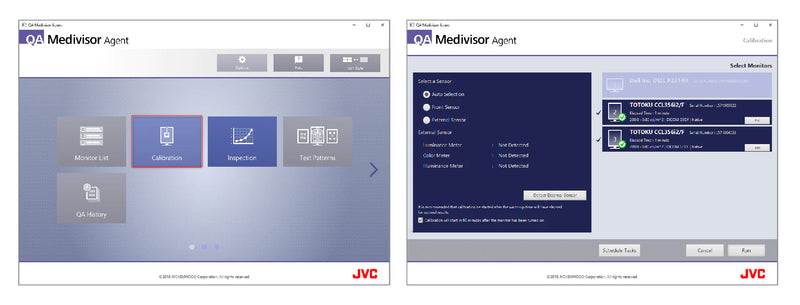

Managing the daily operation of the Radiology department is now more simplified with QA Medivisor Agent’s calibration and QA standard testing capabilities, combined into an intuitive and easy-to-navigate user interface. This includes QA Medivisor Agent LE, a simplified calibration scheduling tool.
*Optional calibration kit CAL-016 is required for standard QA testing.

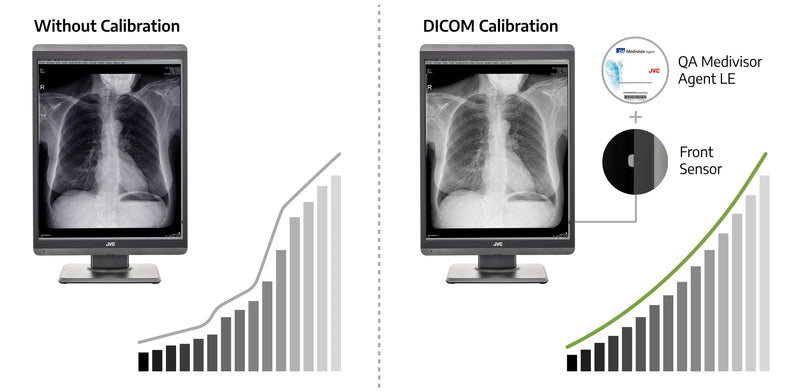

With the integrated color front sensor, the CL-S200/CL-S300 self-calibrates to the DICOM Part 14 Standard on a regular schedule.
Razor-Sharp Color Precision

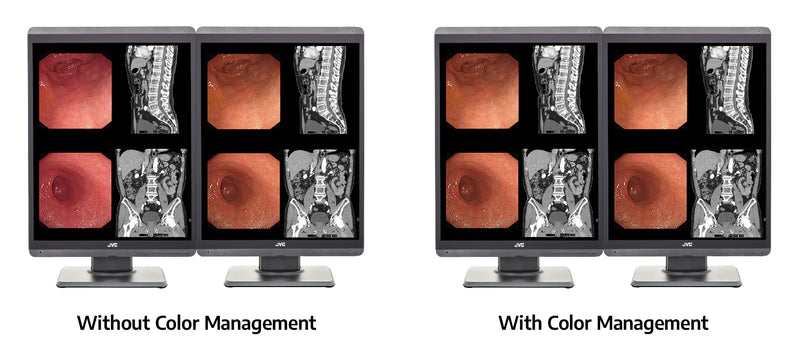

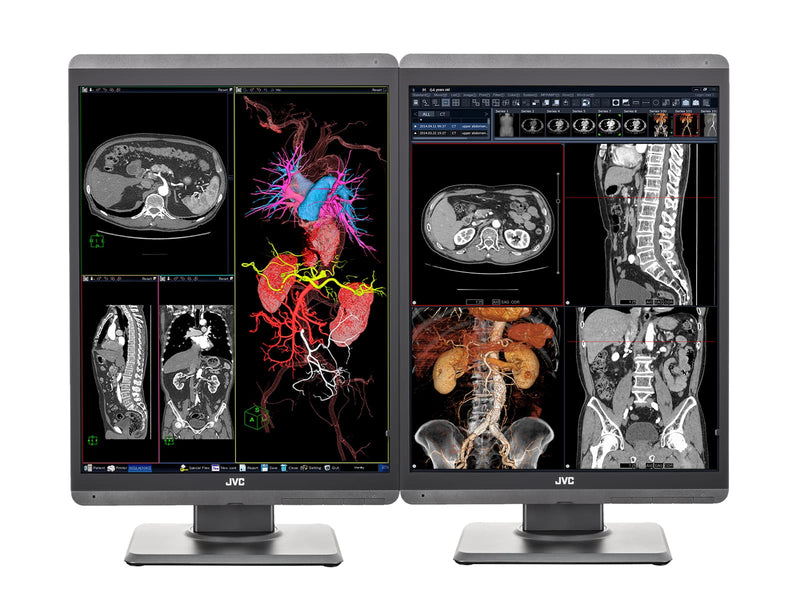

When using multiple i3 models, JVC’s unique X, Y, Z, color level tracking and color management technologies ensure your monitors perfectly color match one another.

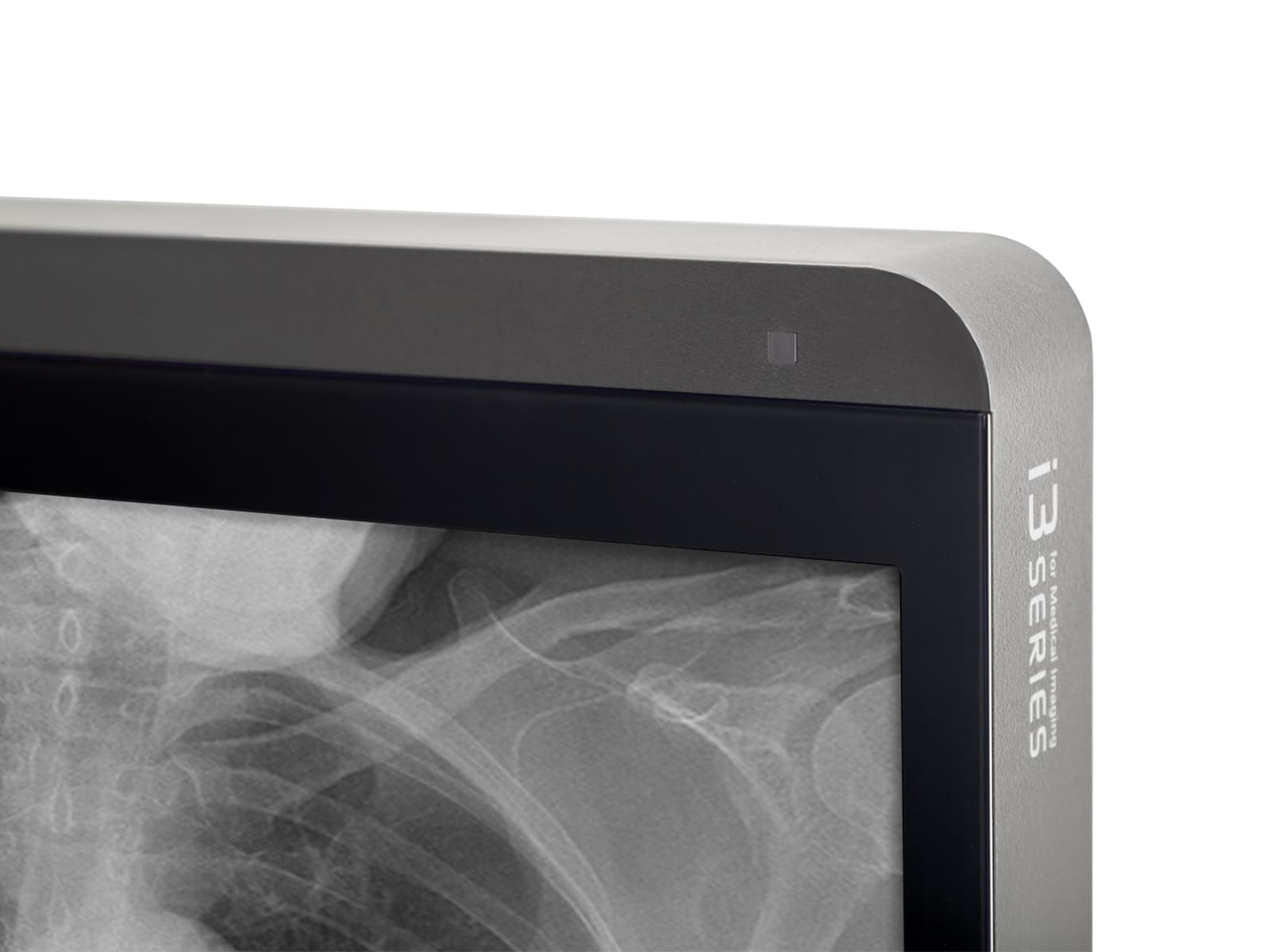

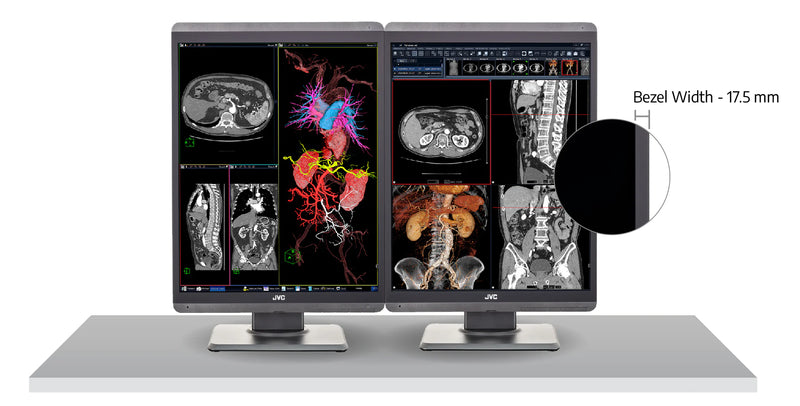

A simple and slim design for a modern look.

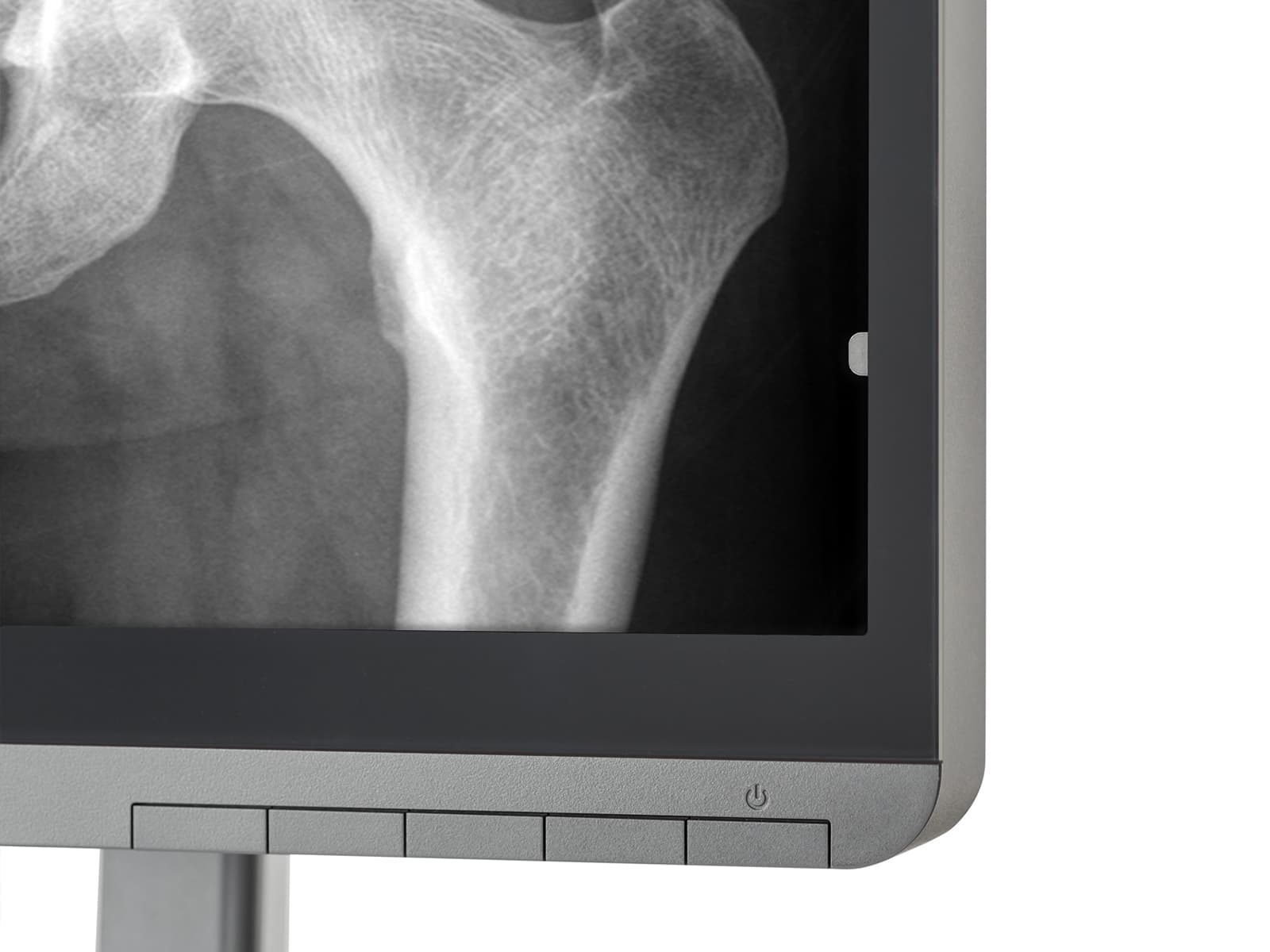

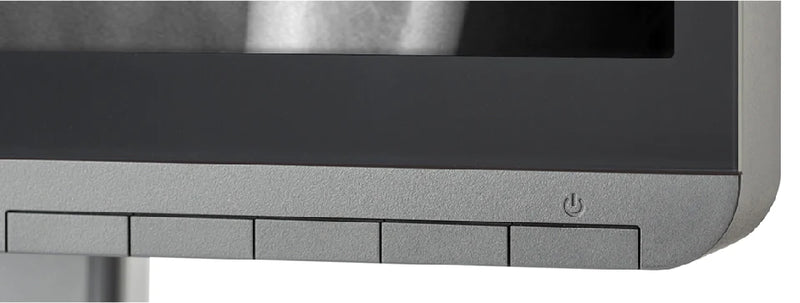

Soft LED light indicators and front buttons create a streamlined design.

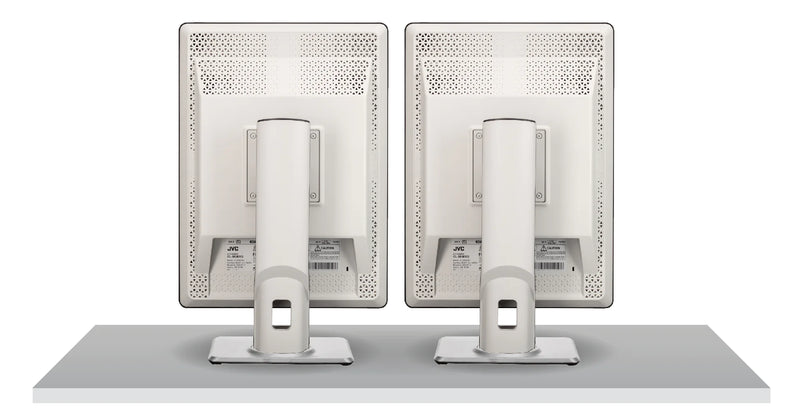

The backside features a stylish gray-white tone color.

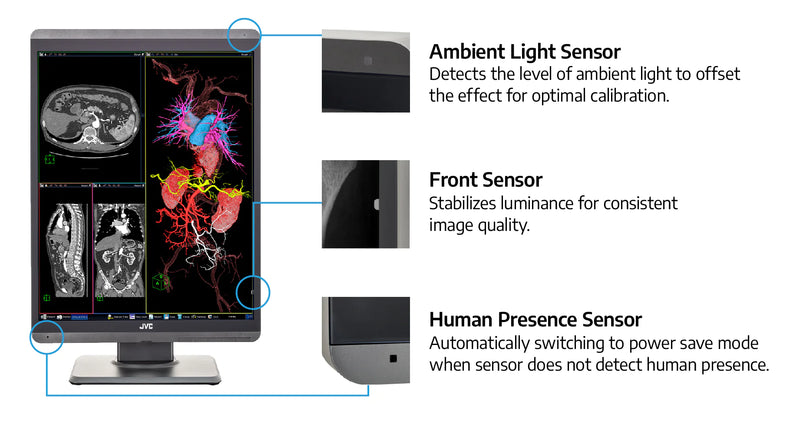

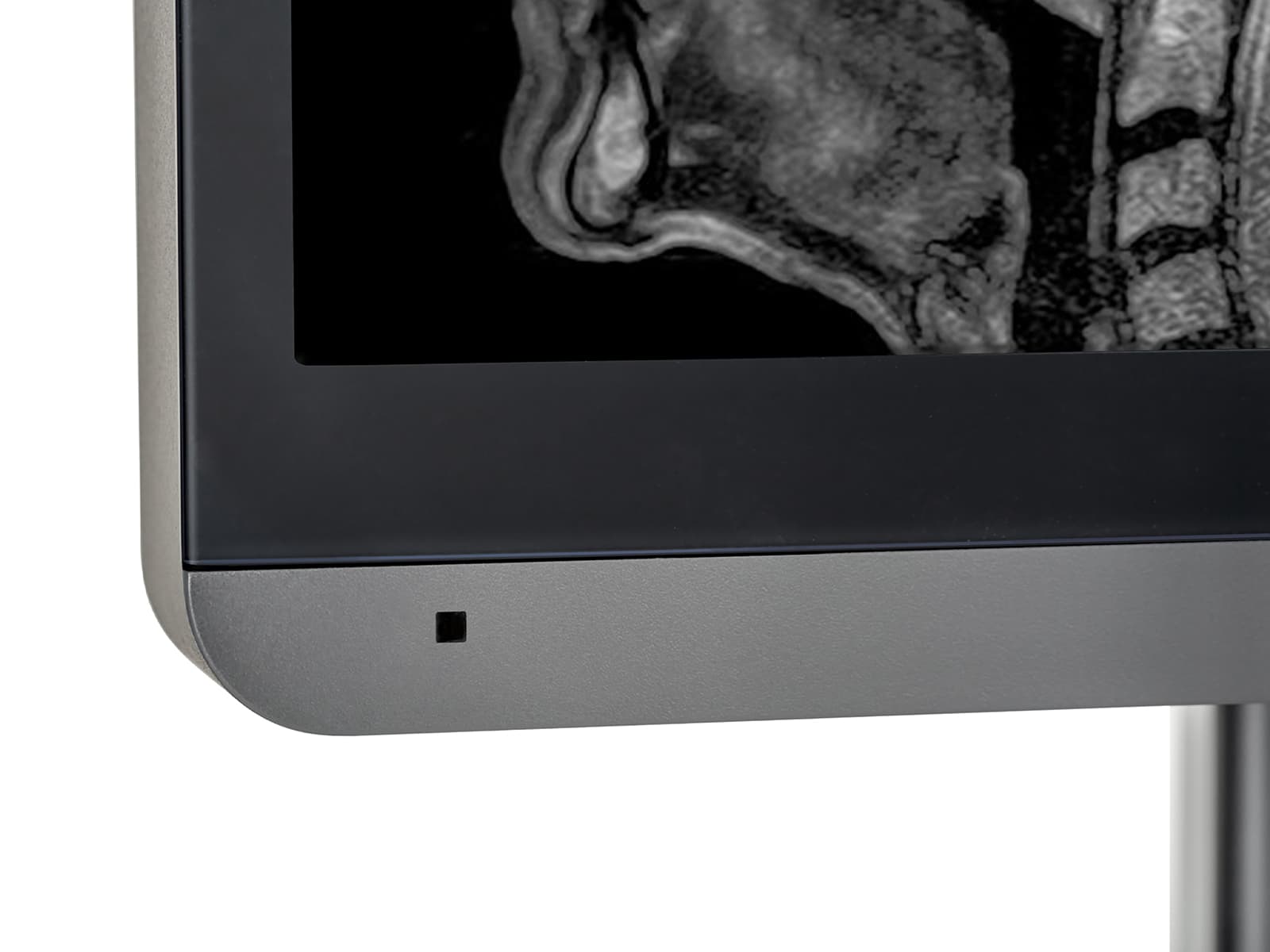

The JVC CL-S300 includes several front sensors to efficiently adjust your monitor to fit any reading environment. An ambient light sensor offsets the effects of ambient light to ensure optimal calibration, a color front sensor stabilizes luminance and color for consistent image quality, and the human presence sensor automatically switches to power save mode when you're away.

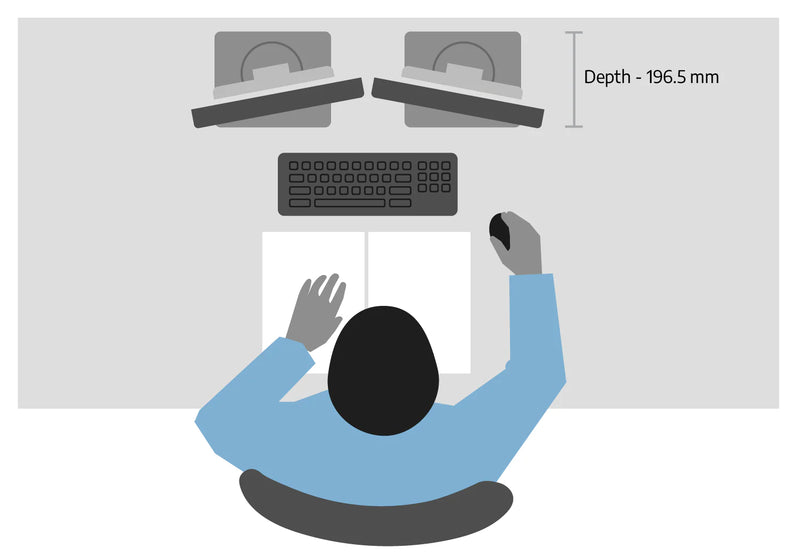

Desk space is valuable, so the new design of the JVC CL-S300 stand takes up 25% less area than conventional models.

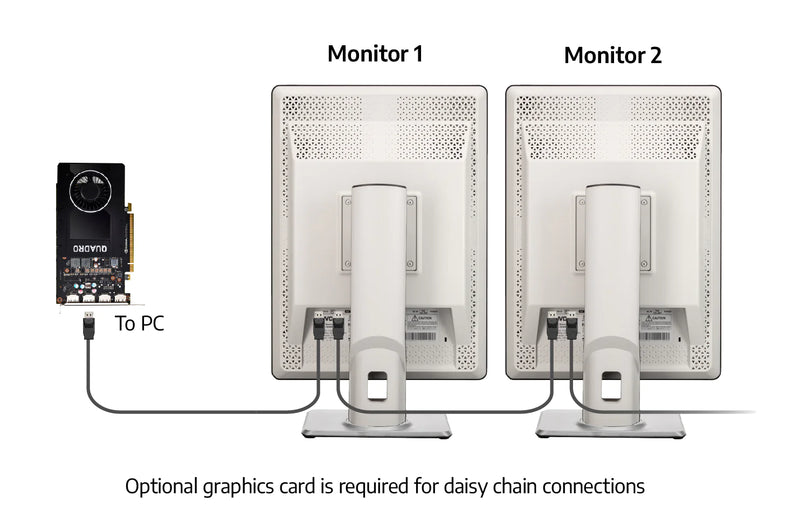

Wire Management / DisplayPort Daisy Chains
With DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.
Docs & Drivers
|MFG. Product Number||CL-S300|
|Resolution||3MP (1536 x 2048)|
|Screen Technology||21.3” color TFT IPS technology|
|Active Screen Size (H x V)||324 mm x 433 mm (12.7 in x 17 in)|
|Ambient Light Sensor||Yes|
|Active Screen Size (DIAGONAL)||541 mm (21.3")|
|Pixel Pitch||0.2115 x 0.2115 mm|
|Viewing Angle (H, V)||178°, 178°|
|Calibration||Auto (built-in front sensor)|
|Calibrated Luminance||410 cd/m², 500 cd/m² (calibrated)|
|Max Luminance||1000 cd/m² (typical)|
|Contrast Ratio||1500:1 (typical)|
|Power Consumption||95 W|
|Video Input Signals||DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.2a compliant)|
|Weight||22 lbs (10 kg)|
|Recommended For||MR, CT ,US, NM, Nuclear medicine, CR|
