High Luminance Improved Diagnostic Visibility
MS-S300 comes with 1,000 cd/㎡ calibration to make it the best solution for diagnostic imaging of DR, CT, MRI, etc. The brighter screen dramatically increases the number of perceptual grayscale steps to improve the visibility of structures. Diagnostic reading will be much more efficient.
Independent Sub-pixel Drive Technology
This unique technology enables MS-S300 to render 9 mega sub-pixel images, exceeding the current standards for primary mammography diagnosis. MS-S300 is cleared for FDA 510(k) for the use of digital mammography and breast tomosynthesis.
Auto Text Mode
To reduce eye strain, brightness is automatically adjusted when viewing patient lists and reporting applications when using auto text mode.
Self-Calibration & Integrated QA Solution
With the integrated front sensor, the MS-S300 self-calibrates to the DICOM Part 14 Standard on a regular schedule.
Managing the daily operation of the Radiology department is now more simplified with QA Medivisor Agent’s calibration and QA standard testing capabilities, combined into an intuitive and easy-to-navigate user interface. This includes QA Medivisor Agent LE, a simplified calibration scheduling tool.
*Optional calibration kit CAL-016 is required for standard QA testing.

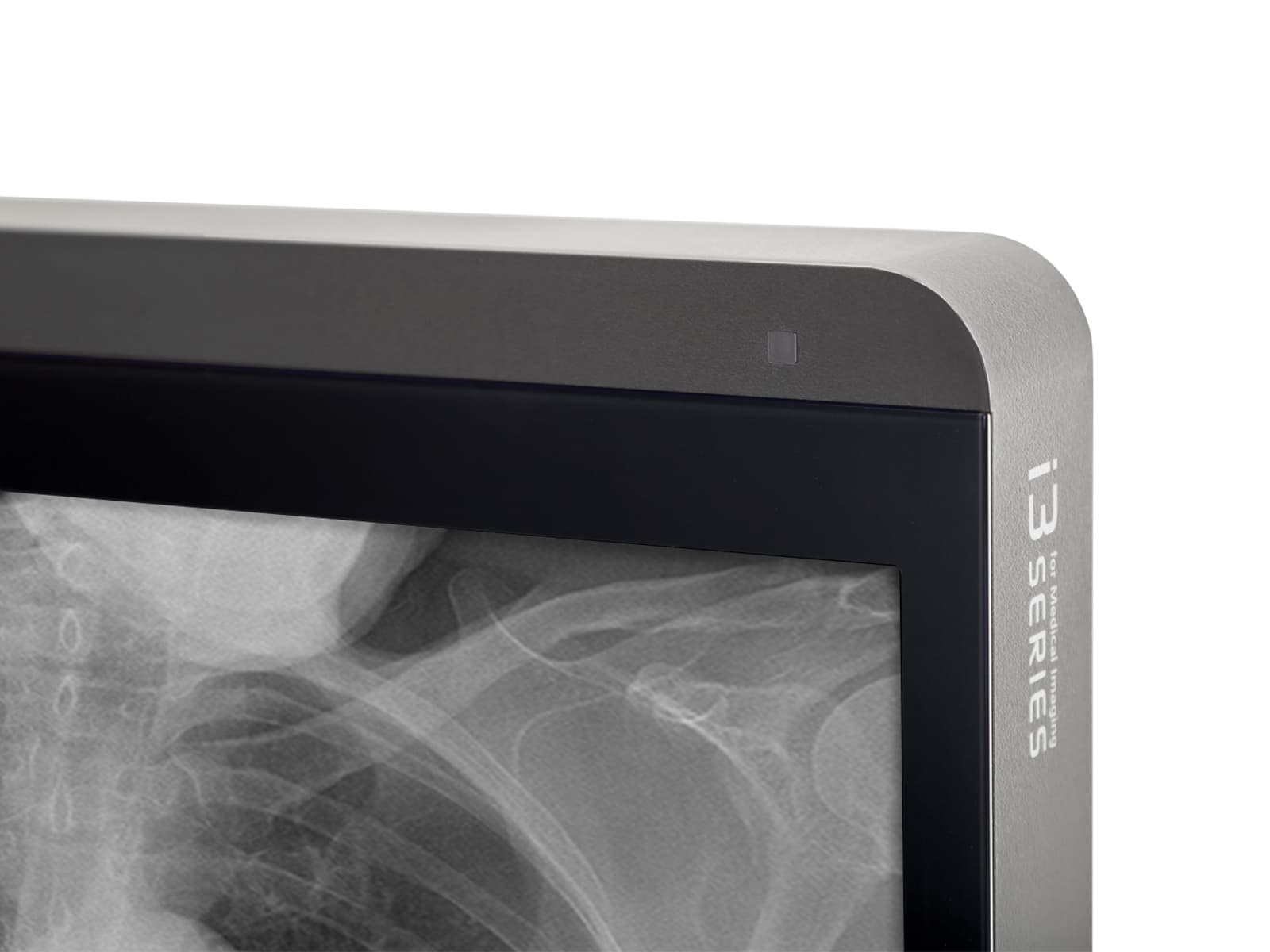

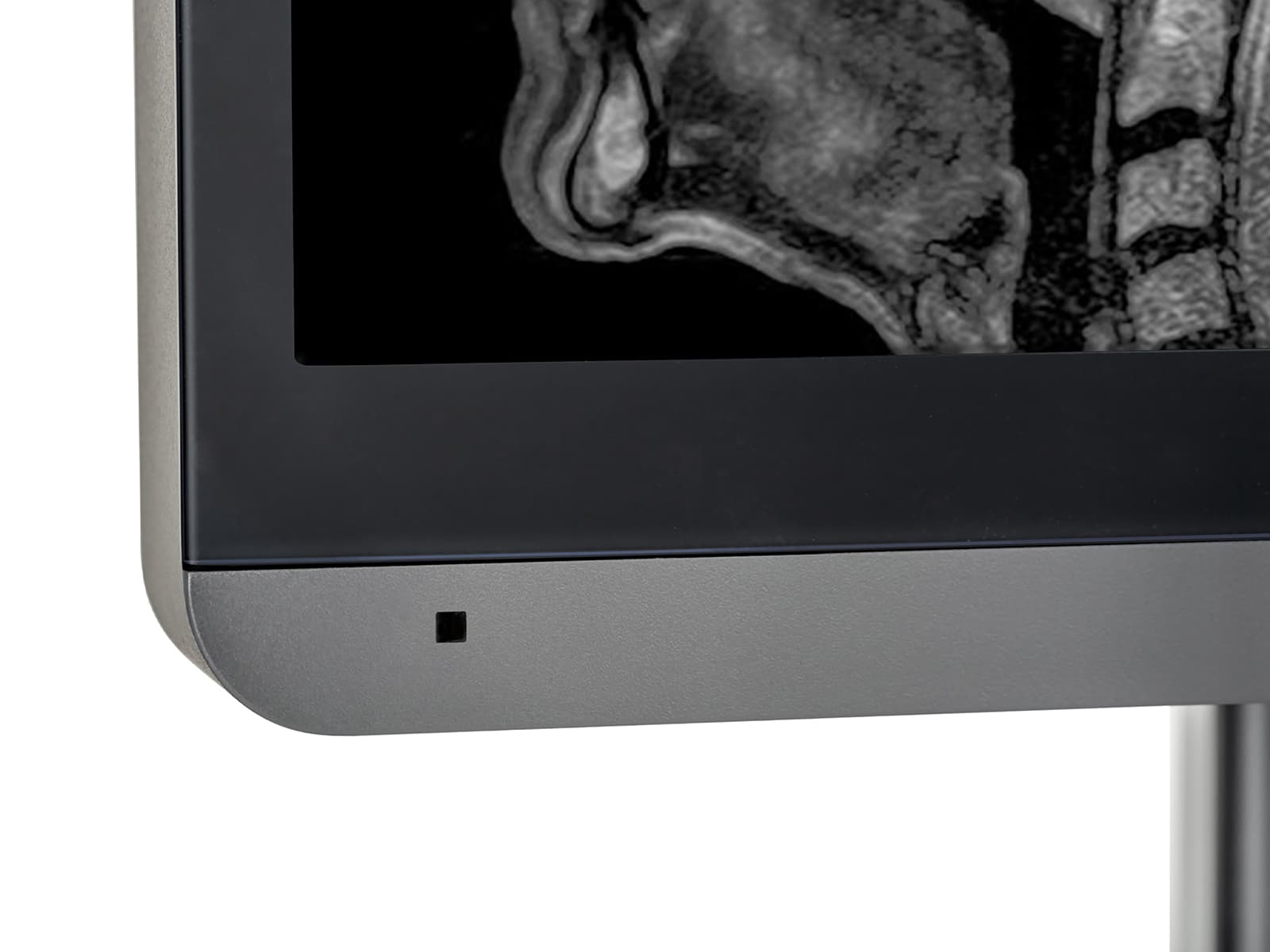

The JVC MS-S300 includes several front sensors to efficiently adjust your monitor to fit any reading environment. An ambient light sensor offsets the effects of ambient light to ensure optimal calibration, a color front sensor stabilizes luminance and color for consistent image quality, and the human presence sensor automatically switches to power save mode when you're away.

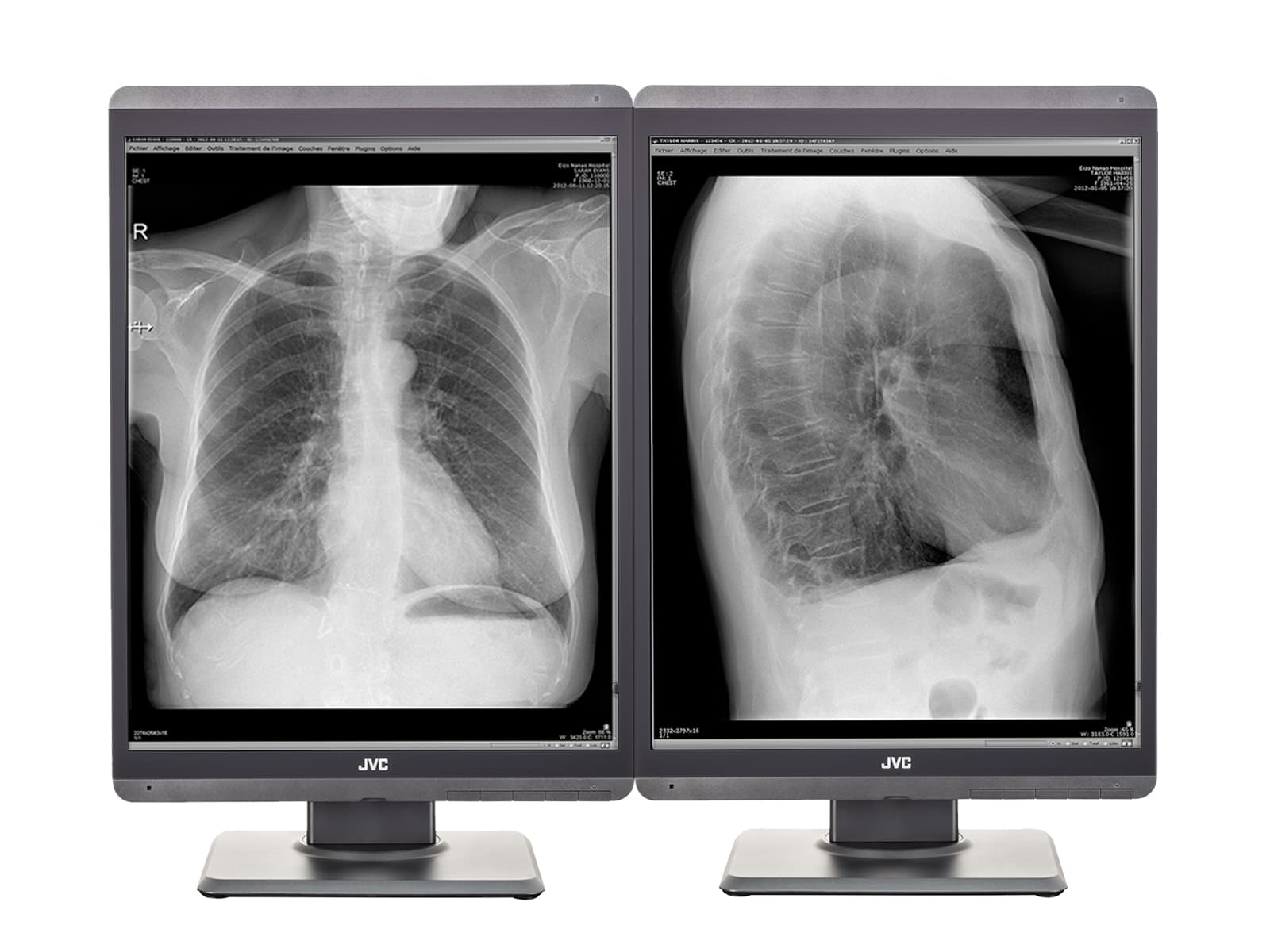

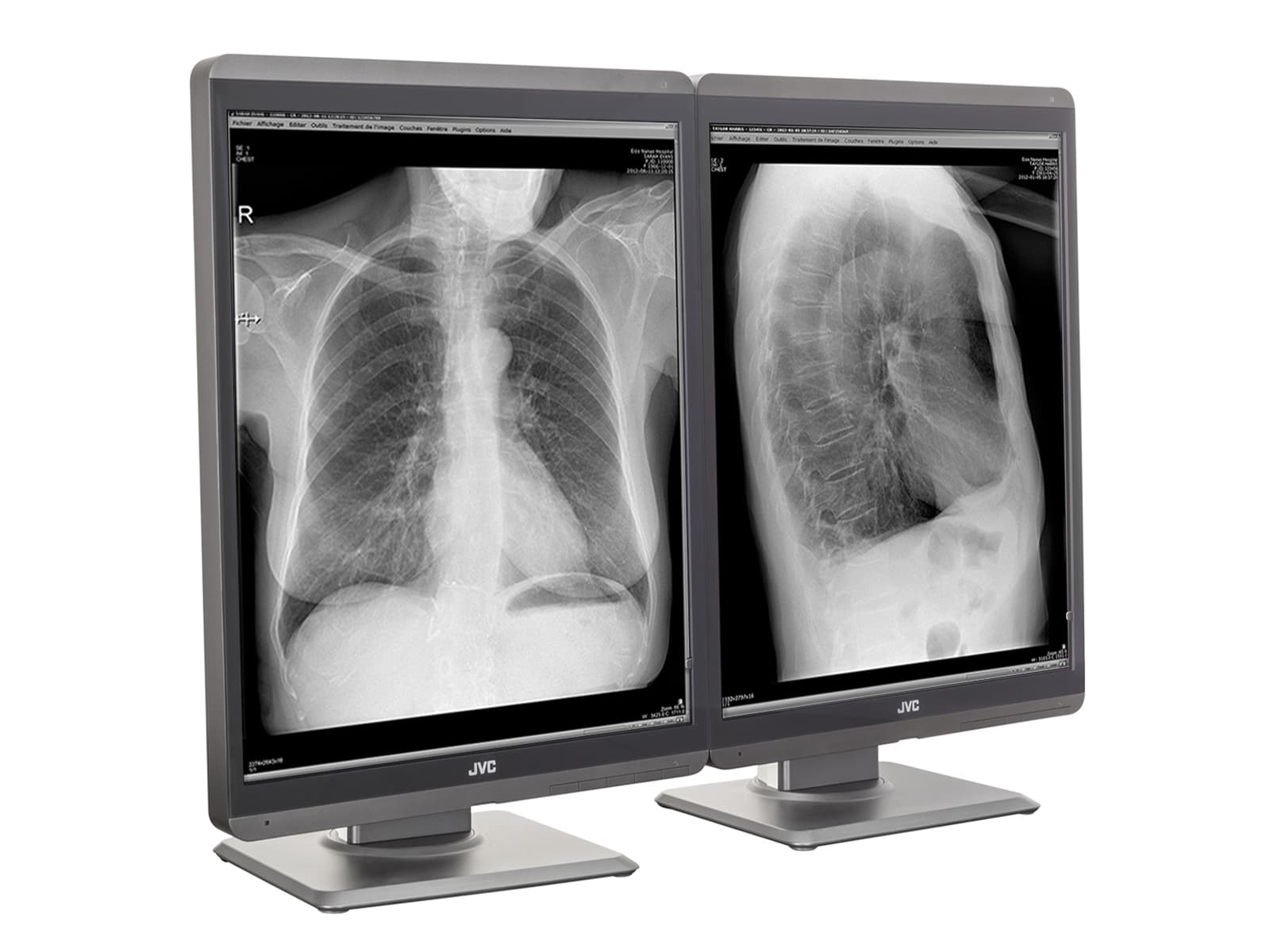

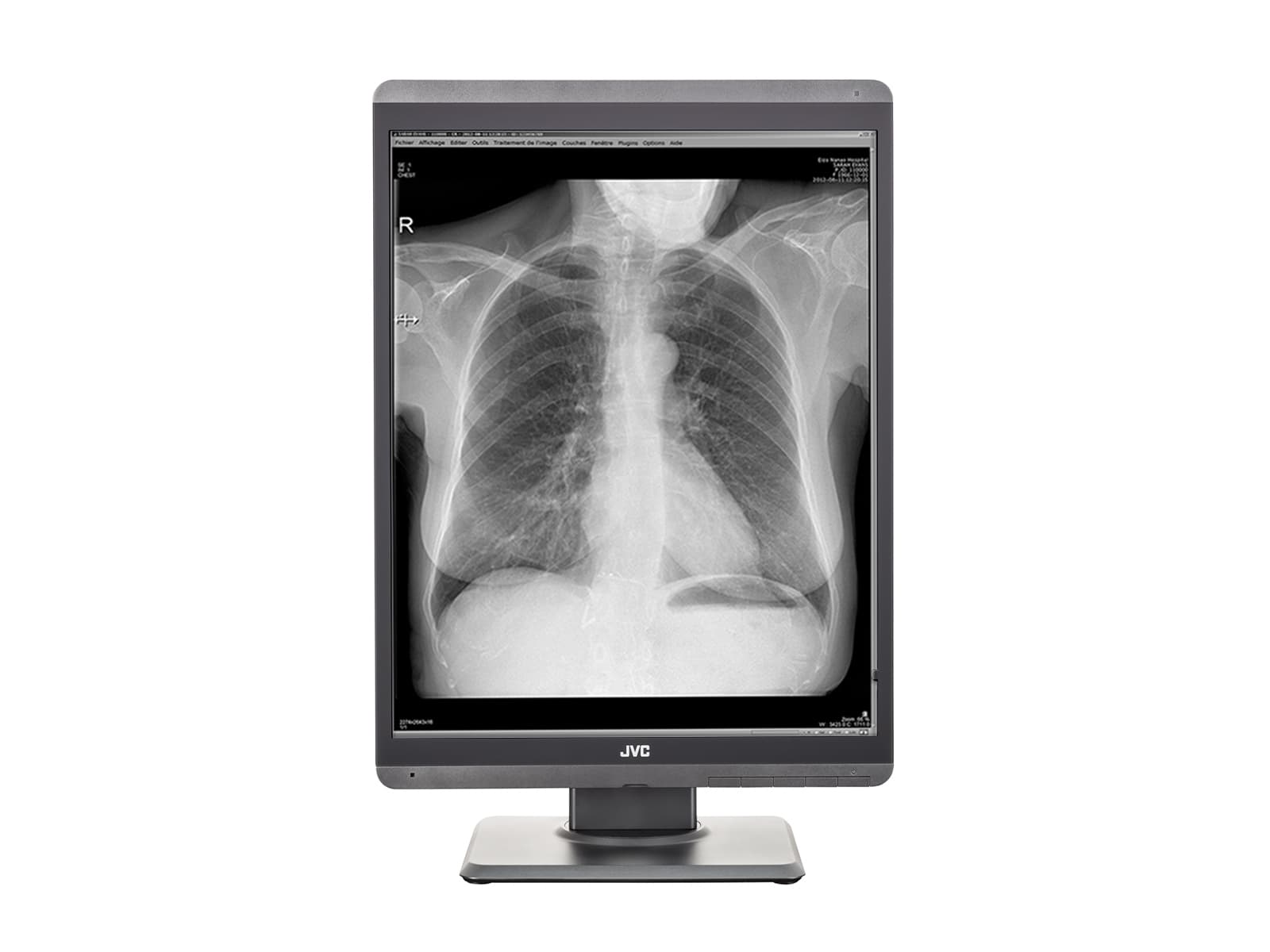

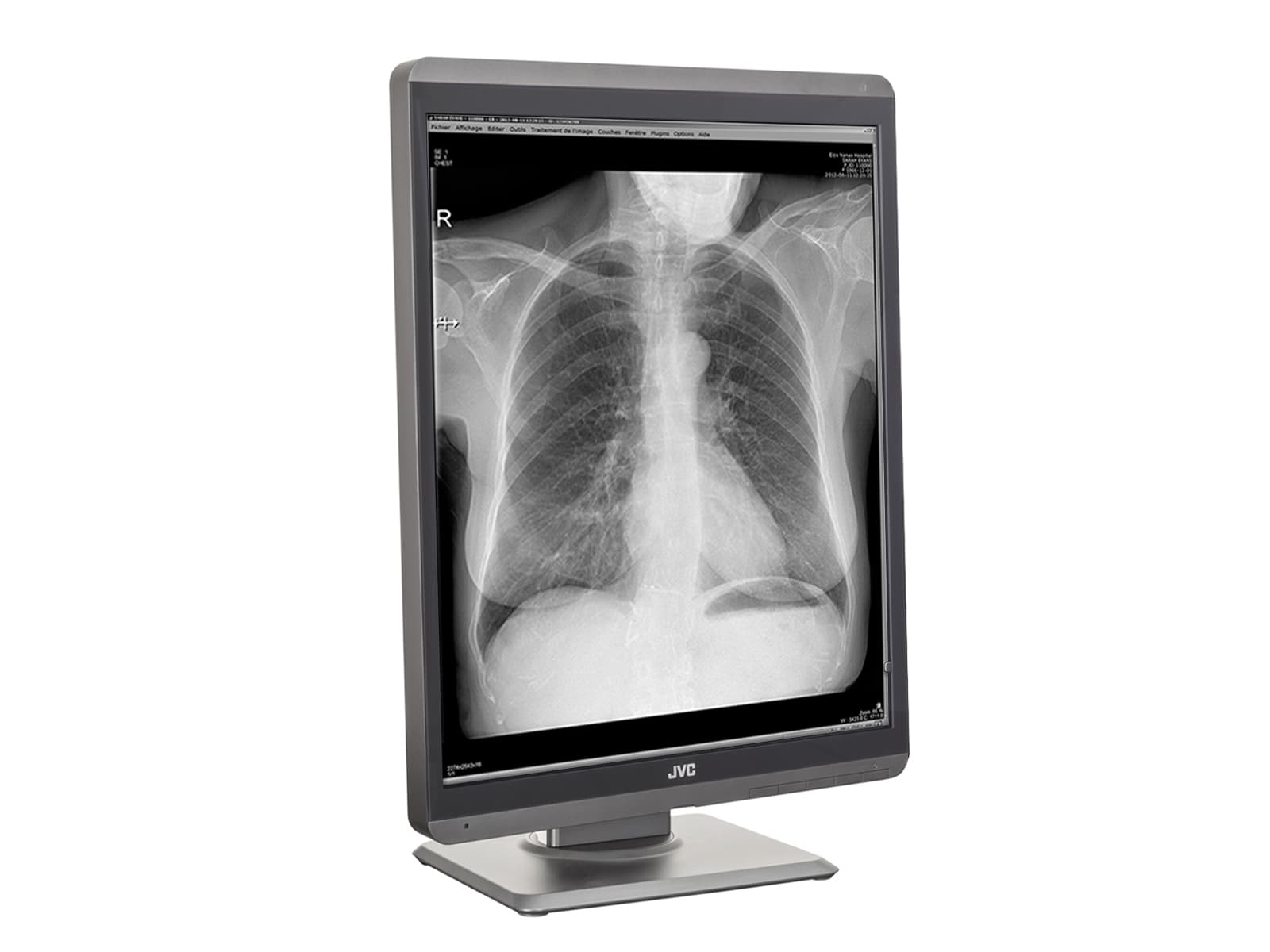

The JVC Totoku MS-S300 offers an exquisite combination of style and performance. This advanced 3MP 21" LED grayscale display features a slim, modern look and simple yet refined design. Perfect for general radiology diagnostics.

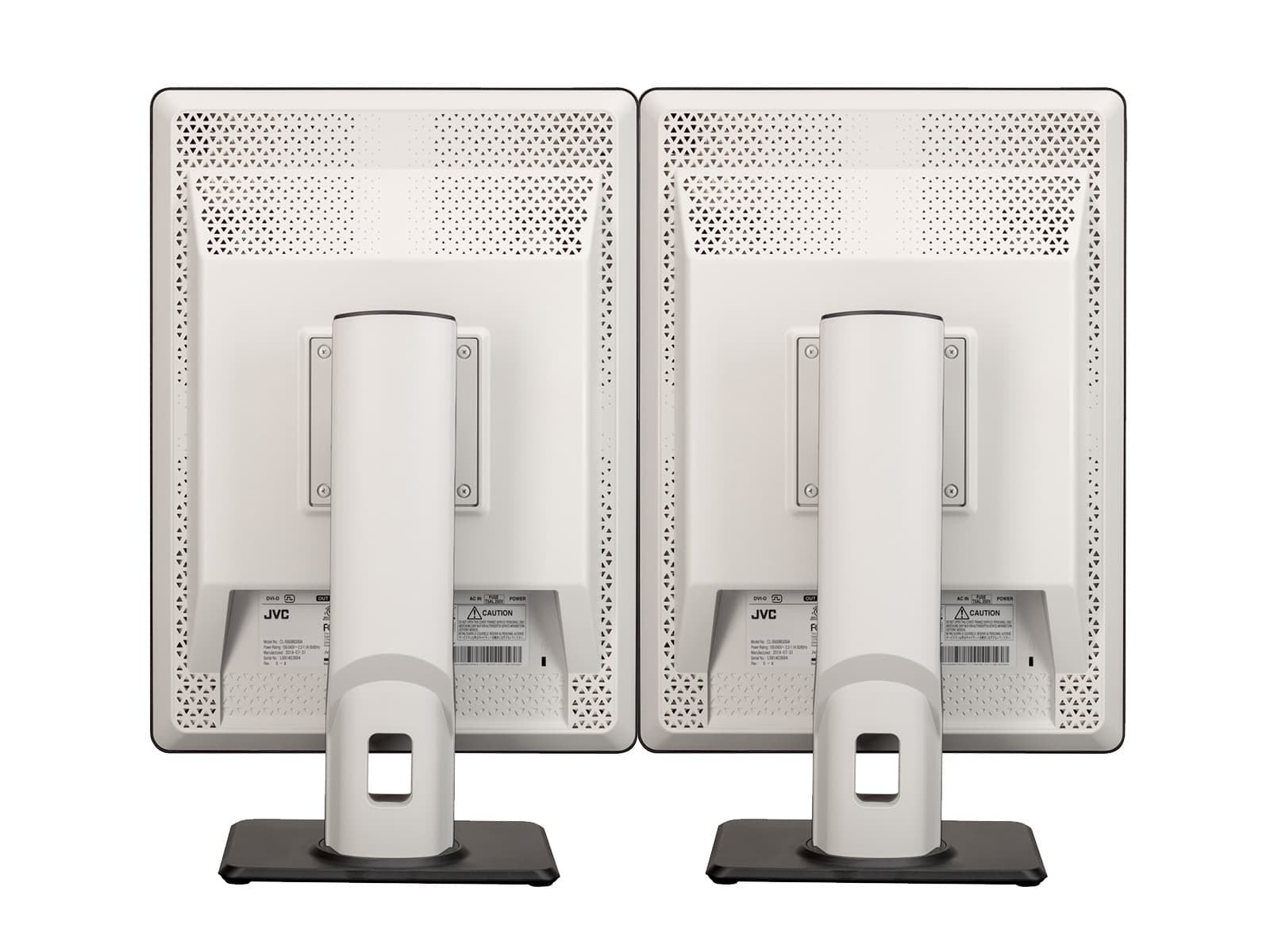

Wire Management / DisplayPort Daisy Chains
With DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.
The JVC Totoku MS-S300 offers superior image stability and luminance uniformity, courtesy of its uniformity equalizer. The result is consistent image quality across the screen, allowing medical practitioners to make accurate diagnoses.
|Resolution||3MP (1536 x 2048)|
|Pixel Pitch||0.2115 x 0.2115 mm|
|Aspect Ratio Hv||4:3|
|Calibrated Luminance||500 cd/m²|
|Max Luminance||2000 cd/m²|
|Calibration||Auto (built-in front sensor)|
|Ambient Light Sensor||Yes|
|Screen Technology||Monochrome, TFT, IPS technology|
|Active Screen Size (DIAGONAL)||540 mm (21.3")|
|Active Screen Size (H x V)||324 x 433 mm (12.75 x 17")|
|Video Input Signals||DisplayPort|
|Recommended For||All digital images, except digital mammography|
|Viewing Angle (H, V)||178°, 178°|

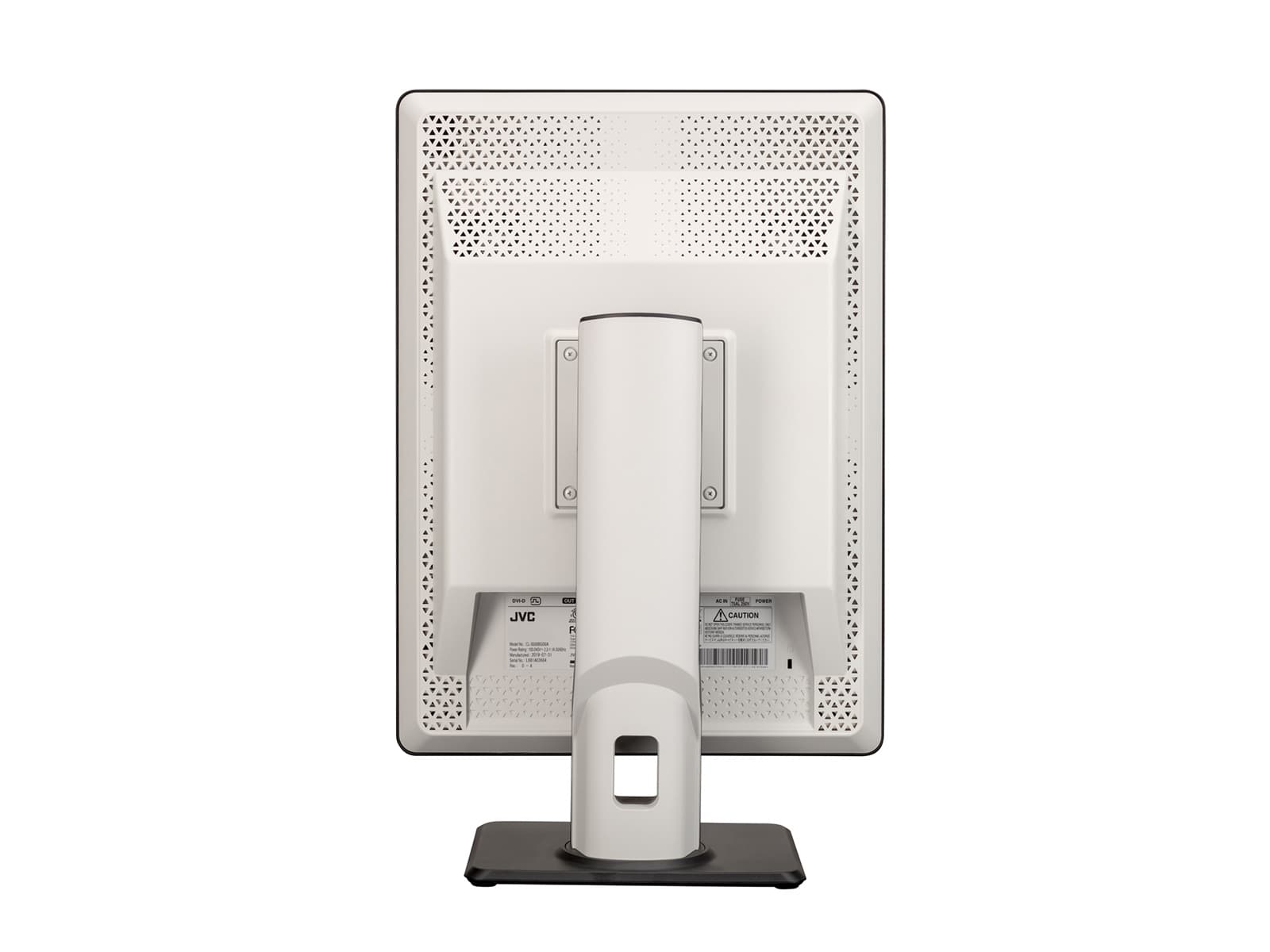

|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||493 x 451.3 x 196.5 mm (19.4" x 17.7" x 7.7")|
|Power Consumption||95 W|
|Power Requirements||100 V - 240 V 50 / 60Hz|
|Weight||22.5 lbs (10.2 kg)|
