How to Perform Calibration on Eizo Medical Display Monitors Using Eizo RadiCS DICOM Calibration and QA Software - Win 10 Pro

Situation:

You need to perform a DICOM calibration on your Eizo Radiforce medicaid display monitors.

Solution:

Follow the instructions below to calibrate your Eizo monitors using RadiCS v5. Please contact us to request a copy of the Eizo calibration and QA software if you need a copy. Please follow the instructions on how to install the Eizo RadiCS calibration software if you do not have a copy installed on your system.

Before you start, please make sure that your USB Type-B cable is connected from your monitors to your computer.

Open RadiCS Version 5

Wait for RadiCS to detect monitor(s)

Click on Administrator mode

Type password: passwordv5. Click OK

Click Calibration

Verify the monitors are selected. Click Proceed

 During the calibration process, the RadiCS software will fade out

Also, during the calibration, the monitor(s) will go black and the build-in sensor will pop out.

On the Finish page, click on Passed or Failed to view a detailed report

Click Finish

Conclusion:

Your monitor(s) will now be calibrated to the DICOM standard. If you wish to configure RadiCSv5 to automatically calibrate your monitors, please follow the How to Schedule Automatic Calibration in Eizo RadiCS DICOM Calibration and QA Software v5 - Win 10 Pro guide.



Leave a comment

All comments are moderated before being published

Featured products

Save $700

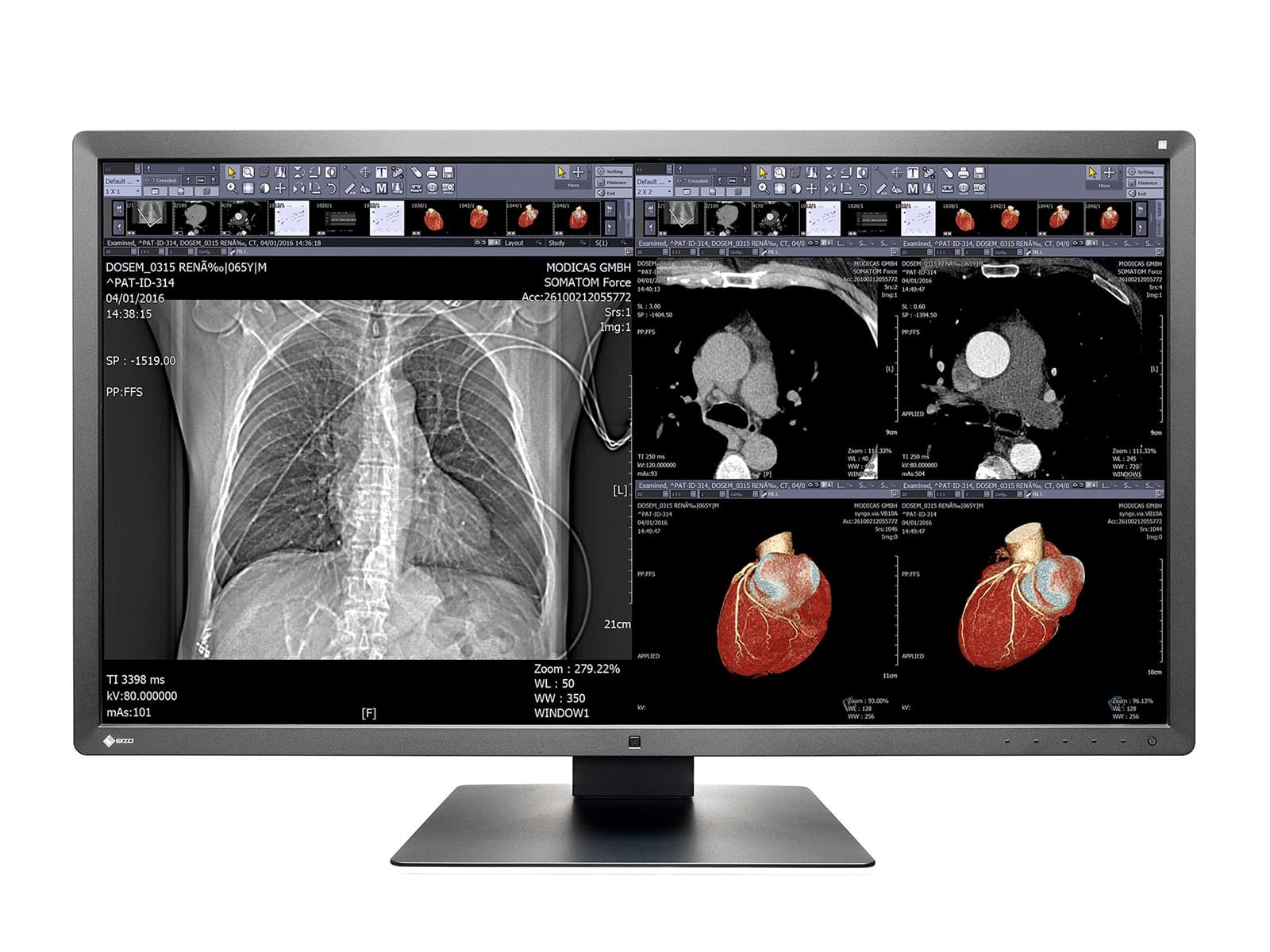

Eizo RadiForce MX315W 8MP 31" Color Clinical Review Medical Display Monitor (MX315W-BK)Eizo RadiForce MX315W 8MP 31" Color Clinical Review Medical Display Monitor (MX315W-BK)
Save $1,201 Save $600

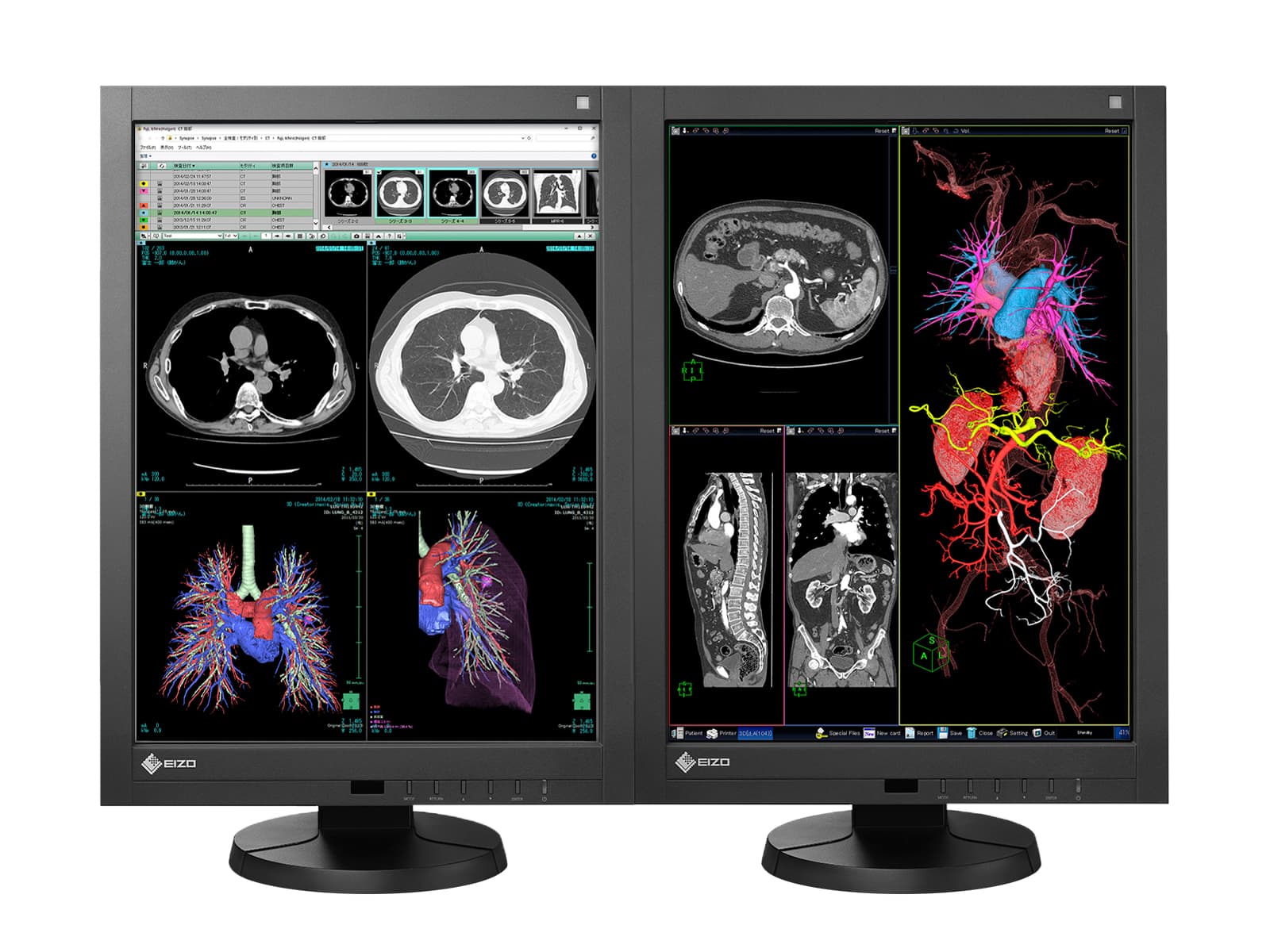

Eizo Radiforce RX340 3MP Color LED Diagnostic PACS Display (RX340-BK)Eizo Radiforce RX340 3MP 21'' Color LED General Radiology Diagnostic PACS Display (RX340-BK)
Save $1,501

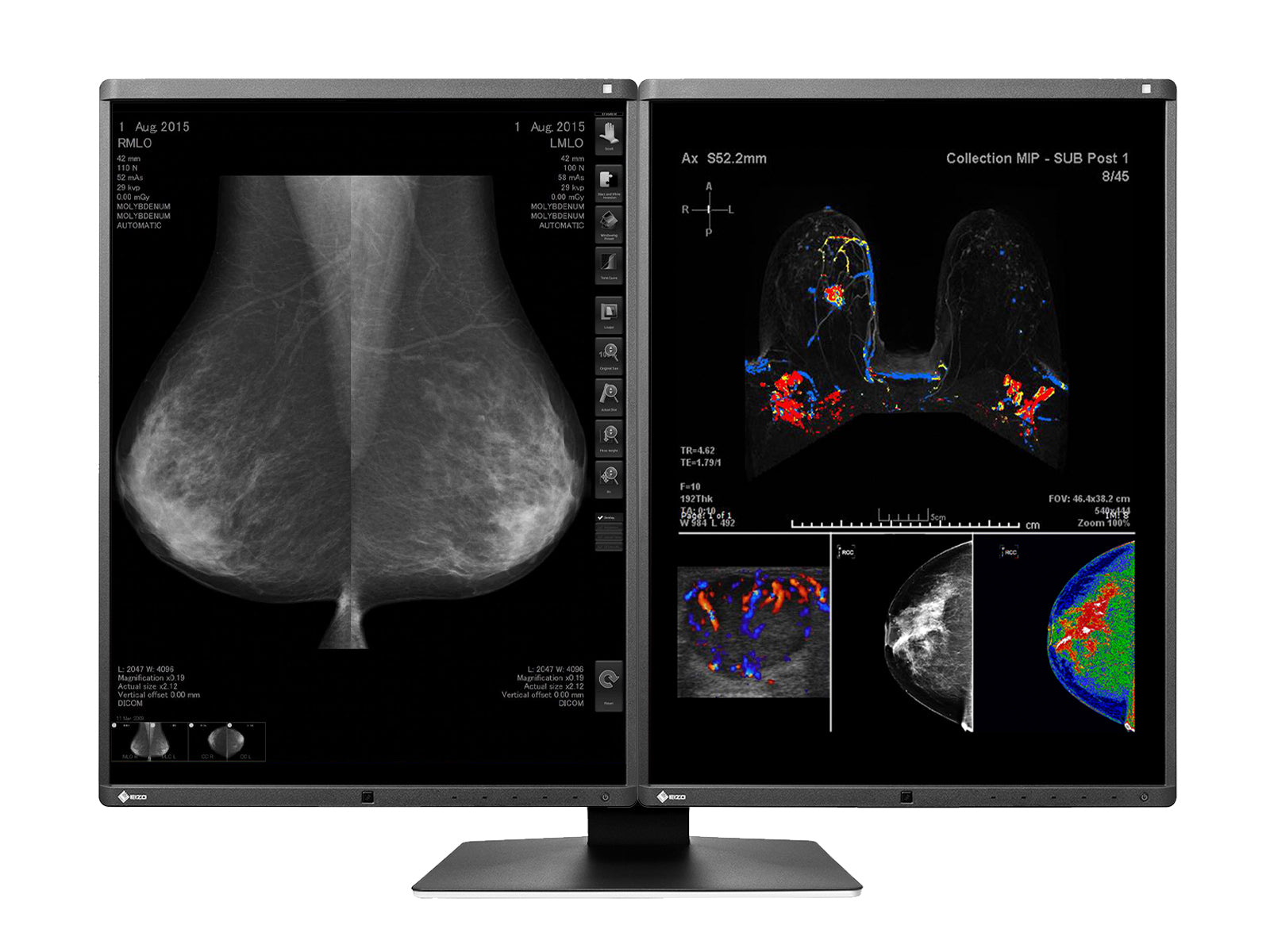

Eizo RadiForce RX560 5MP 21" Color LED Mammo 3D-DBT Breast Imaging Display (RX560-BK)Eizo RadiForce RX560 5MP 21" Color LED Mammo 3D-DBT Breast Imaging Display (RX560-BK)
