Shape of Comfort
Compact 12-megapixel monitor packed full of features to improve comfort and work efficiency.
1. Eye relief with Comfort Light
The built-in comfort light gently illuminates the wall behind the monitor without interfering with the low ambient lighting typical of reading rooms. This reduces the contrast between the wall and monitors to prevent eye fatigue without creating glare on the screen.
2. Easily navigate your workspace
It is also equipped with a spotlight which allows you to see printed documents or your keyboard. The position can be easily adjusted to achieve the ideal lighting.
Streamline Your Workflow

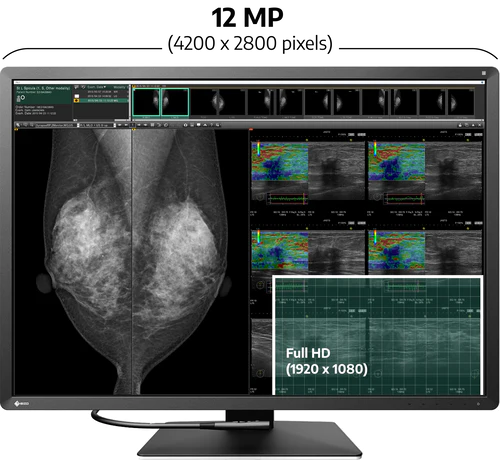

Display various images on an ultra-high resolution 12 megapixel (4200 x 2800 pixels) single screen with the freedom of image layout. It provides streamlined visibility compared with multi-monitor environments, leading to greater efficiency.
Compact and Feature-Packed
The Eizo Radiforce RX1270 realizes the ultra-high resolution of 12 megapixels on a 30.9-inch screen. The new design is more compact compared to two conventional 5-megapixel monitors used side by side. This all while including a built-in comfort light and internal power supply that does not impose on the workspace.
Quickly Pinpoint Focus Areas
With the Point-and-Focus function, you can quickly select and focus areas of your concern with just your mouse and keyboard. Change the brightness and grayscale tones of specific points on the screen to make interpretation easier.
Quick Information Referencing
The Hide-and-Seek function enables users to easily hide the PinP (Picture in Picture) window not currently in use and reopen it as needed by moving the mouse cursor to the edge of the screen. This eliminates the need for an extra monitor while still allowing quick and efficient viewing of reports or patient charts.

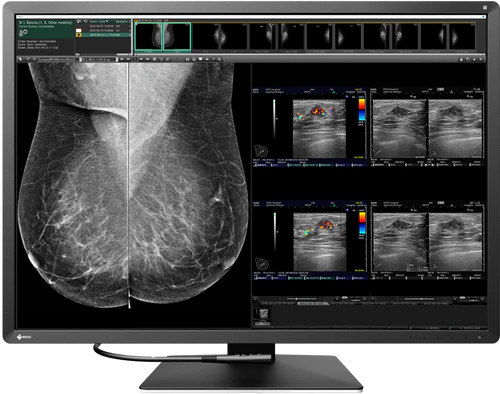

Optimum Breast Screening Monitor
The Eizo Radiforce RX1270 has obtained FDA 510(k) clearance by the U.S. Food and Drug Administration for breast tomosynthesis and mammography. This ensures that the Eizo Radiforce RX1270 can display detailed breast screening images where high performance is essential.
The Switch-and-Go function on the Eizo Radiforce RX1270 allows USB switching through the monitor, enabling the use of a single keyboard and mouse across two connected PCs. This is convenient for dual-monitor/PC environments or changing inputs on a single monitor connected to two PCs.
Furthermore, you can use Switch-and-Go with Hide-and-Seek to display the screen of a notebook PC (connected via HDMI) as a separate window on the monitor. The window can be hidden or shown on command using a single mouse and keyboard to access more information quickly.

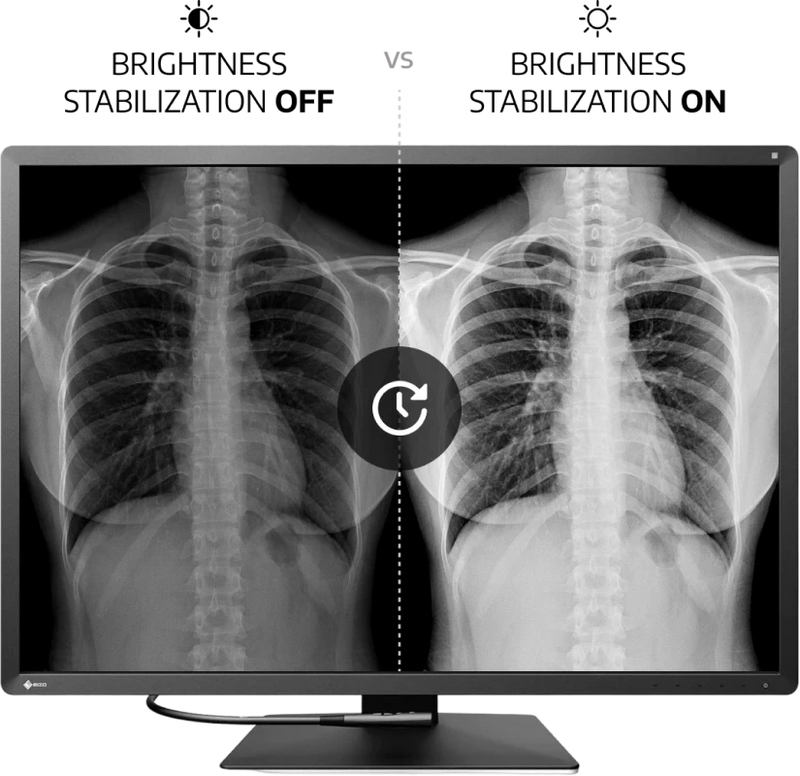

Stable Display Using AI
The color and brightness of an LCD monitor can shift due to changes in ambient temperature and the monitor's temperature. Medical Imaging RadiForce monitors are equipped with a temperature sensor for accurately measuring the temperature inside the monitor and estimating the temperature of the surrounding environment. With this technology, The Eizo Radiforce RX1270 adjusts in real-time, so gradations, color, brightness, and other characteristics continue to display accurately.
Furthermore, EIZO uses AI (artificial intelligence) in the estimation algorithm of the RX1270 so it can distinguish between changing temperature patterns to calculate an even more accurate correction.
Variations for Specific User Needs
EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is suitable for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.
Achieve Clarity True to the Source Data
A medical monitor needs to be capable of high brightness to meet performance standards. However, to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the source data, even at high brightness levels.
MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing; when Sharpness Recovery is turned on, in the case of a 2-pixel line pair (spatial frequency of 1.609 cycles/mm), the MTF increases by approximately 56%.
Clear, High-Density Images
With 0.1554 mm pixel pitch, a high-density, high-definition image is achieved without appearing grainy.
Display Both Monochrome and Color
The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. This ultimately improves efficiency by allowing monochrome and color images to be viewed on one screen.
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.
With DisplayPort 1.4, a 12-megapixel signal can be supported at 60 frames per second using a single cable between the Eizo Radiforce RX1270 and the workstation.
Evolve Your Image Reading
As more image modalities become digitalized, radiologists view an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce monitor and bundled RadiCS LE software.
Manage Effortless Quality Control
With the RadiCS LE software (included) and Integrated Front Sensor (IFS) built into the front bezel, you can easily calibrate to DICOM Part 14 without mounting and removing an external sensor.
|Resolution||Native 12MP (4200 x 2800) configurable to 2 x 6MP (2100 x 2800)|
|Pixel Pitch||0.1554 x 0.1554 mm|
|Aspect Ratio Hv||3:2|
|Calibrated Luminance||500 cd/m²|
|Max Luminance||1200 cd/m²|
|Calibration||Auto (built-in front sensor)|
|Ambient Light Sensor||Yes|
|Active Screen Size (DIAGONAL)||787.4 mm (31")|
|Active Screen Size (H x V)||652.7 x 435.1 mm (25.69 x 17.12")|
|Video Input Signals||DisplayPort|
|Recommended For||All digital images including mammography|
|Viewing Angle (H, V)||178°, 178°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||689.8 x 508 x 225 mm (27.1" x 20" x 8.8")|
|Power Consumption||75 W|
|Power Requirements||AC 100 - 240 V: 50 / 60 Hz|
|Weight||34.5 lbs (15.6 kg)|
