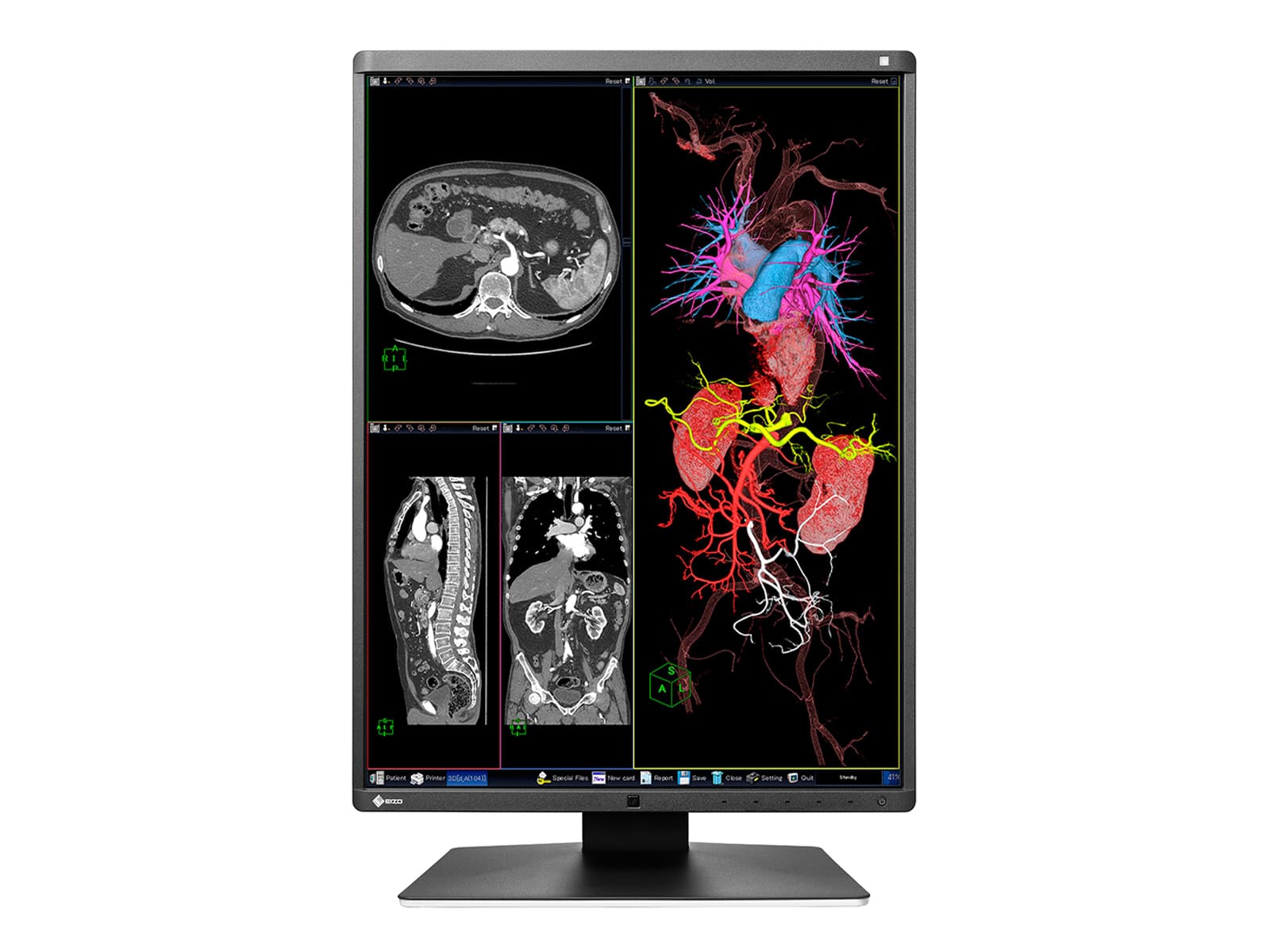

A 3-megapixel high-brightness monitor ideal for accurate display of chest X-ray, CR, and DR grayscale images and color images such as 3D rendering and image fusion. Featuring a new design and unique EIZO technology, this monitor provides both comfort and image precision to medical professionals.
All high-brightness LCD panels exhibit a decrease in the sharpness of the original image due to the aperture ratio of the pixels becoming larger. EIZO's unique technology called Sharpness Recovery restores lost information in contours, resulting in an image shown with maximum clarity.
MTF (Modulation Transfer Function) measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2-pixel line pair the MTF increases by approximately 52% (spatial frequency of 1.182 cycles/mm), resulting in a more clearly defined image.
Create the Ideal Environment
The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic.

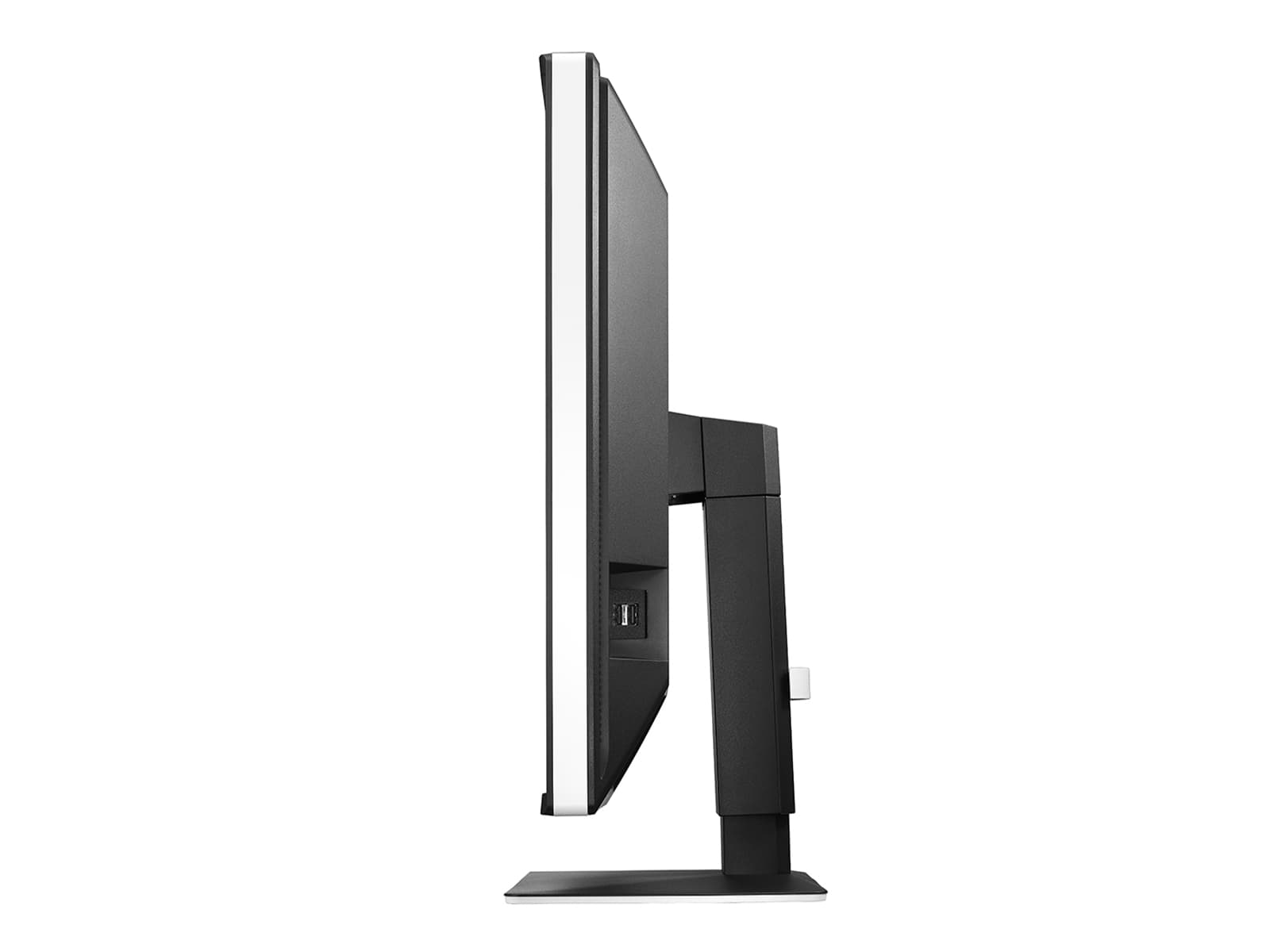

Save Work Space with Sleek Cabinet Design
The monitor's size was reduced by 22 mm, 39 mm, and 45.5 mm respectively 30% less space than its predecessor, saving more workspace for other tasks. Reducing the width of the monitor's frame by approximately half reduces eye movement when comparing side-by-side images in a dual monitor configuration.
Save on Power Consumption
The RadiForce RX350 uses a new panel equipped with an energy-efficient LED backlight which reduces power consumption by 30% compared to its predecessor.
Reduce Reflections for Image Clarity
Anti-reflection (AR) coating greatly reduces reflections caused by outside light without affecting the light emitting from the monitor. This makes AR preferred over AG (anti-glare) treatments which cause blacks to appear washed out due to diffusion of the backlight. Monitors with AR coating display chest X-ray and other high-resolution images with more clarity for accurate analysis.

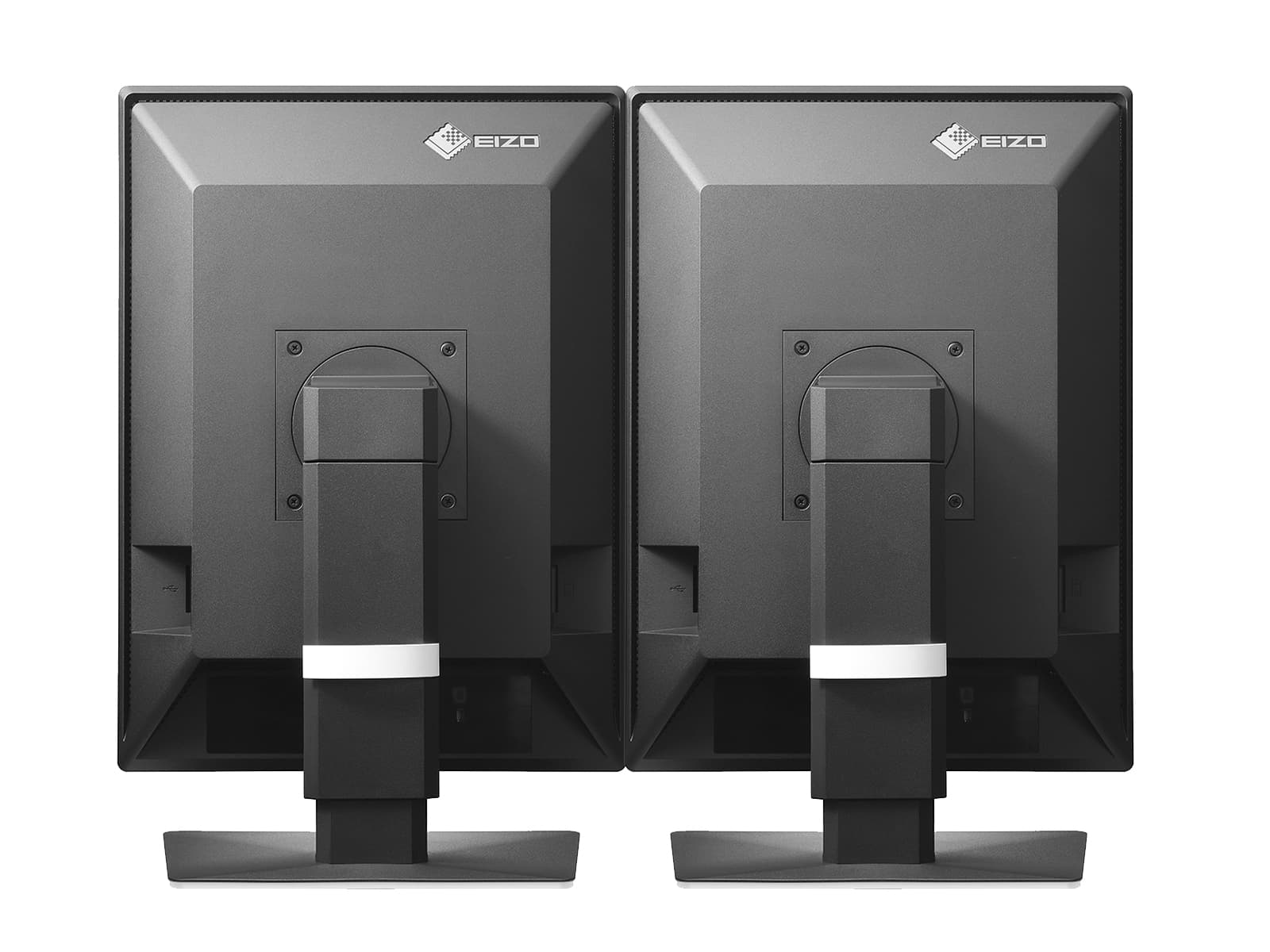

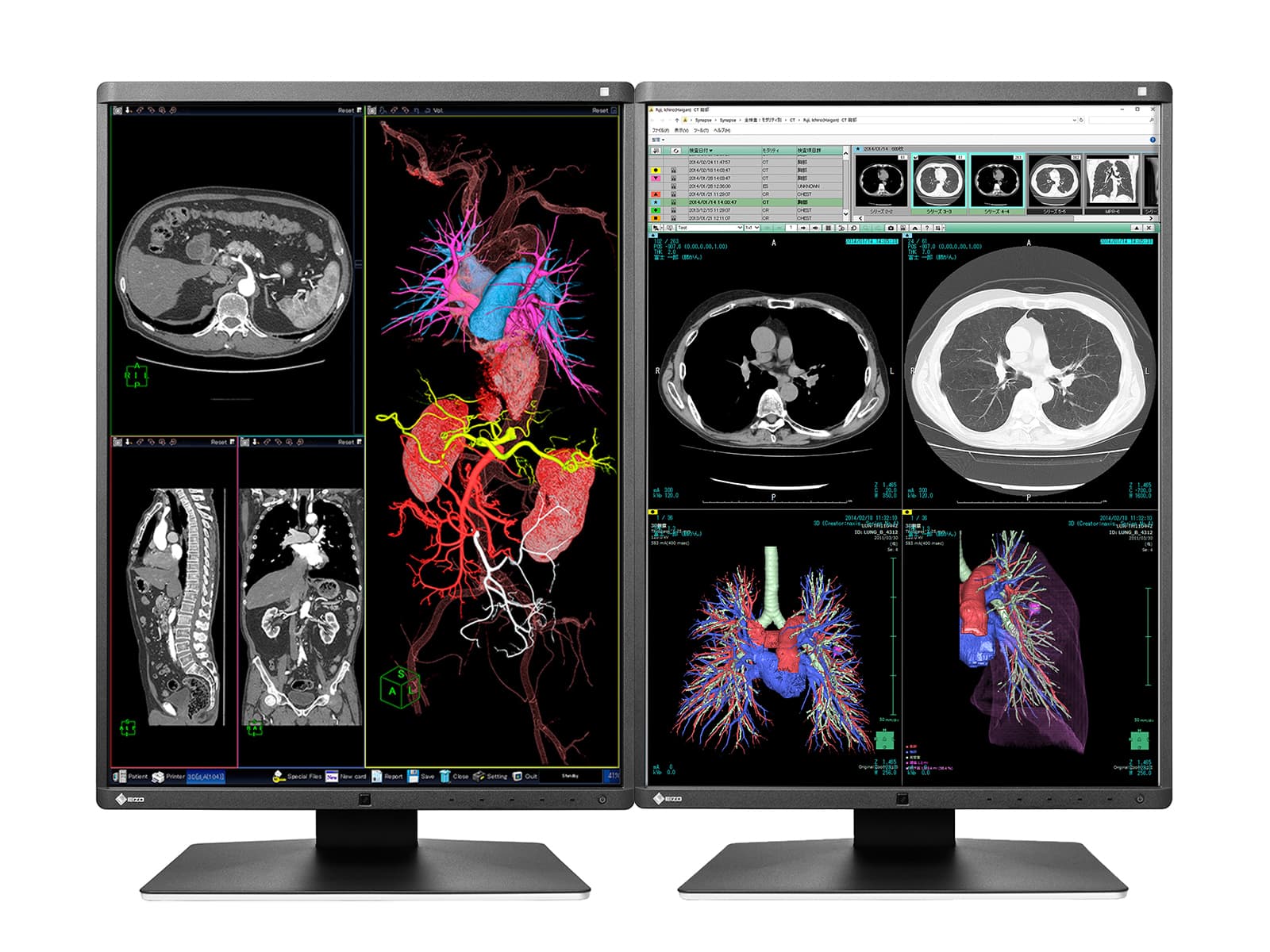

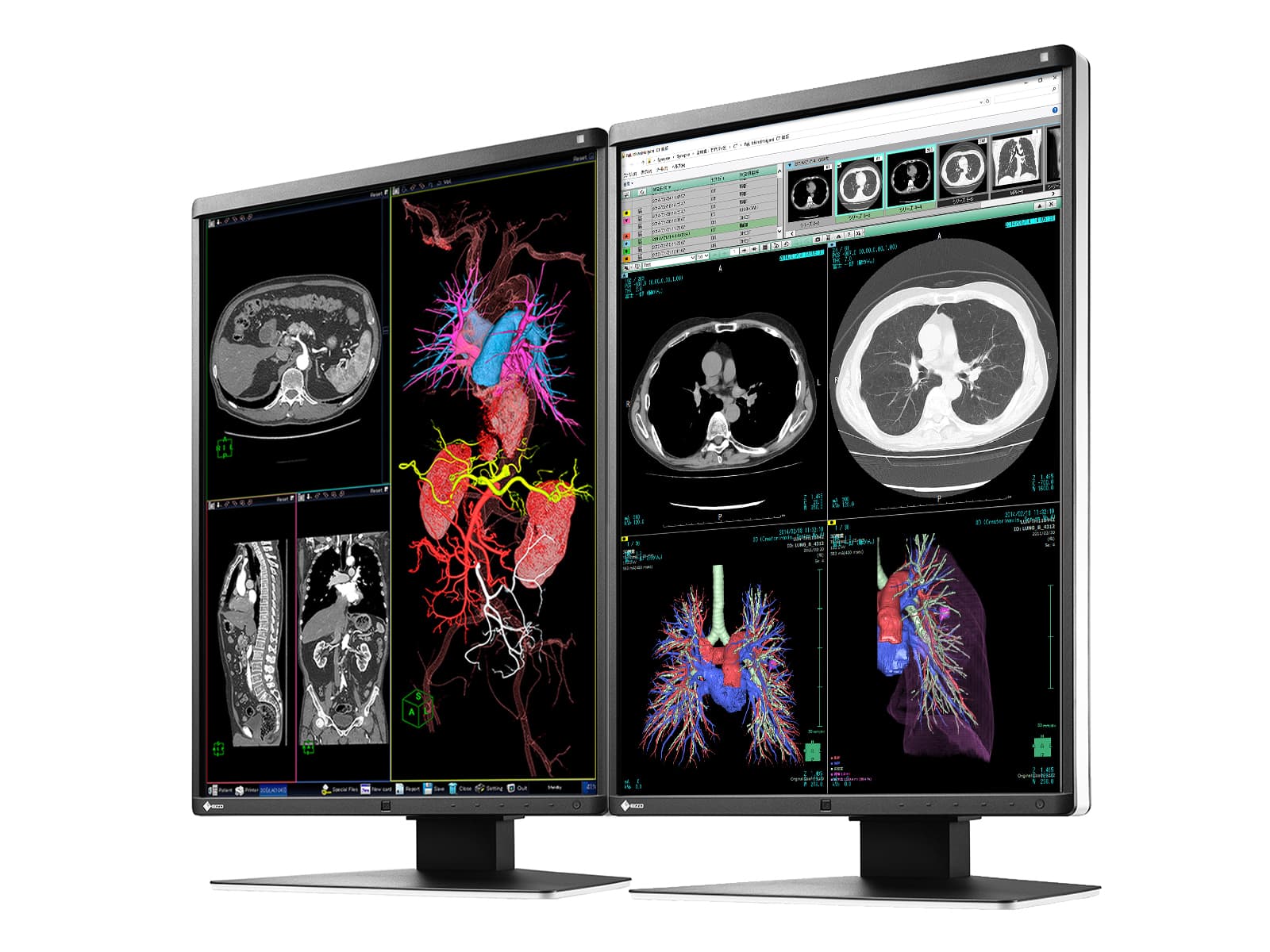

Hassle-Free Multi-Monitor Configuration
Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.
Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible for the most accurate diagnosis.
Maintain the Precision
Perform a simplified calibration for DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.'
Display Controller (Graphics Card)
Docs & Drivers
|Resolution||3MP (1536 x 2048)|
|Pixel Pitch||0.2115 x 0.2115 mm|
|Aspect Ratio Hv||3:4|
|Calibrated Luminance||500 cd/m²|
|Max Luminance||1,000 cd/m²|
|Calibration||Auto (Built-in Front Sensor)|
|Ambient Light Sensor||Yes|
|Active Screen Size (DIAGONAL)||541 mm (21.3")|
|Active Screen Size (H x V)||324.9 x 433.2 mm (12.79 x 17.05")|
|Video Input Signals||DisplayPort|
|Recommended For||All digital images, except digital mammography|
|Viewing Angle (H, V)||178°, 178°|
|Mount Type||VESA (100 mm)|
|Dimensions (W x H x D)||341.3 x 481.5-571.5 x 200 mm (13.4 x 19-22.5 x 7.8")|
|Power Consumption||89 W|
|Power Requirements||AC 100 - 240 V: 50 / 60 Hz|
|Weight||17.9 lbs (8.1 kg)|
