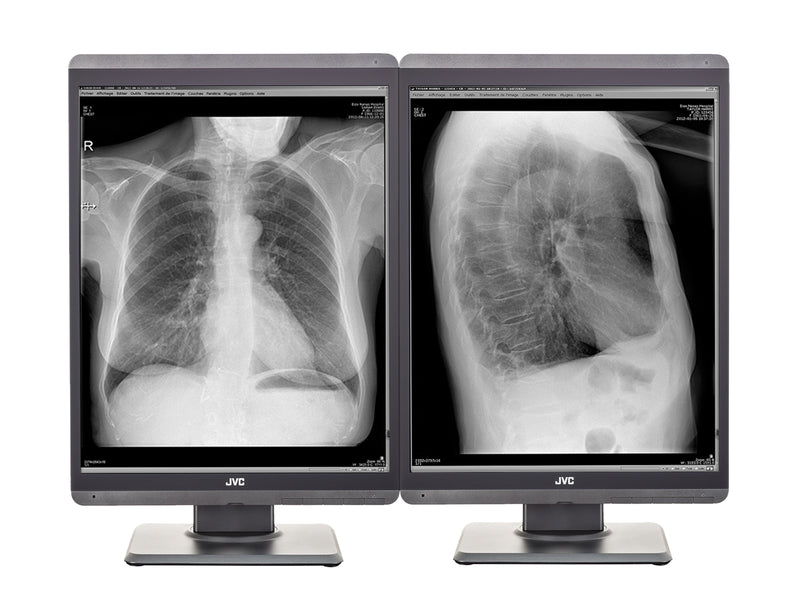

MS-S200 comes with an 1800:1 contrast ratio to make it the best solution for diagnostic imaging of DR, CT, and MRI etc. The brighter screen dramatically increases the number of perceptual grayscale steps to improve the visibility of structures. Diagnostic reading will be much more efficient. One of its unique technologies the built-in sensor ensures that the monitor constantly performs at its best.
This unique technology enables MS-S200 to render 6 mega sub-pixel images, exceeding the current standards for primary diagnosis. This will be a cost-effective way of enhancing the ability of a 2MP display.
(Patent No.8, 259, 034B2)
A simple and slim design for a modern look with bezel thickness of only 17.5mm
The JVC MS-S200 includes several front sensors to efficiently adjust your monitor to fit any reading environment. An ambient light sensor offsets the effects of ambient light to ensure optimal calibration, a color front sensor stabilizes luminance and color for consistent image quality, and the human presence sensor automatically switches to power save mode when you're away.
To reduce eye strain, brightness is automatically adjusted when viewing patient lists and reporting applications when using auto text mode.
Desk space is valuable, so the new design of the JVC MS-S20 stand takes up 25% less area than conventional models.
With the integrated front sensor, the MS-S200 self-calibrates to the DICOM Part 14 Standard on a regular schedule.
Managing the daily operation of the Radiology department is now more simplified with QA Medivisor Agent’s calibration and QA standard testing capabilities, combined into an intuitive and easy-to-navigate user interface. This includes QA Medivisor Agent LE, a simplified calibration scheduling tool.
*Optional calibration kit CAL-016 is required for standard QA testing.
Luminance uniformity correction system produces stable images across the screen.
With DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.
Features at a Glance
| Manufacturer | JVC |
| MFG. Part#. | MS-S200 |
| Screen Type | Grayscale |
| Resolution | 2MP (1200 x 1600) |
| Pixel Pitch | 0.270 x 0.270 mm |
| Contrast Ratio | 1800:1 |
| Aspect Ratio Hv | 4:3 |
| Calibrated Luminance | 500 cd/m² |
| Max Luminance | 1900 cd/m² |
| Calibration | Auto (built-in front sensor) |
| Backlight Sensor | Yes |
| Front Sensor | Yes |
| Ambient Light Sensor | Yes |
| Backlight | LED |
| Screen Technology | Monochrome TFT IPS technology |
| Active Screen Size (DIAGONAL) | 541 mm (21.3") |
| Active Screen Size (H x V) | 324 x 432 mm (12.76 x 17") |
| Video Input Signals | DisplayPort |
| Recommended For | All digital images, except digital mammography |
| Viewing Angle (H, V) | 178°, 178° |
| Mount Type | VESA (100 mm) |
| Dimensions (W x H x D) | 493.0 x 451.3 x 196.5 mm (19.4" x 17.7" x 7.7") |
| Power Consumption | 35 W |
| Power Requirements | 100~240V, 50/60Hz |
| Weight | 19.8 lbs (9 kg) |
